Step 1 Pick up the C-Bracket (700-121628-01), place the bracket and then fix it on the wall using four screws.

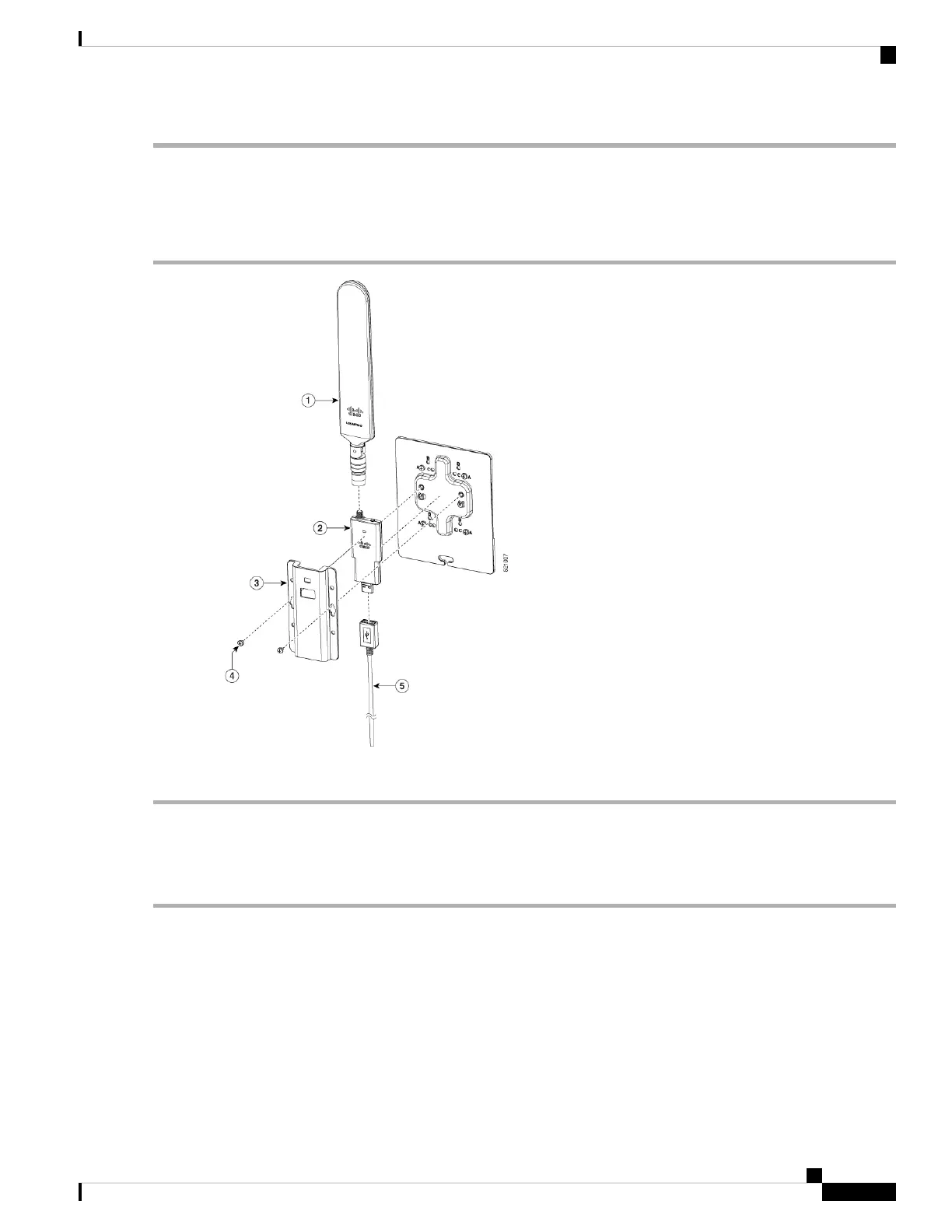

Step 2 Assemble the USB cable (74-122795-01), dongle and antenna (07-100470-01) together. Pick up the wall-mount bracket
(700-121609-01), two SCREWS (48-0580-01). Align and fasten the screws (recommended torque is 10-12 in-lb), the
wall-mount is complete.
Connect the Antenna to the Device
Step 1 Ensure the reserved USB cable length is sufficient to reach the device.
Step 2 Ensure the use the cable clip within USB cable kit (74-122795-01) to manage cable routing and to hold the cable weight.
Step 3 Ensure there are no sharp radius within the USB cable routing.
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
79
Install and Upgrade Internal Modules and Field Replaceable Units
