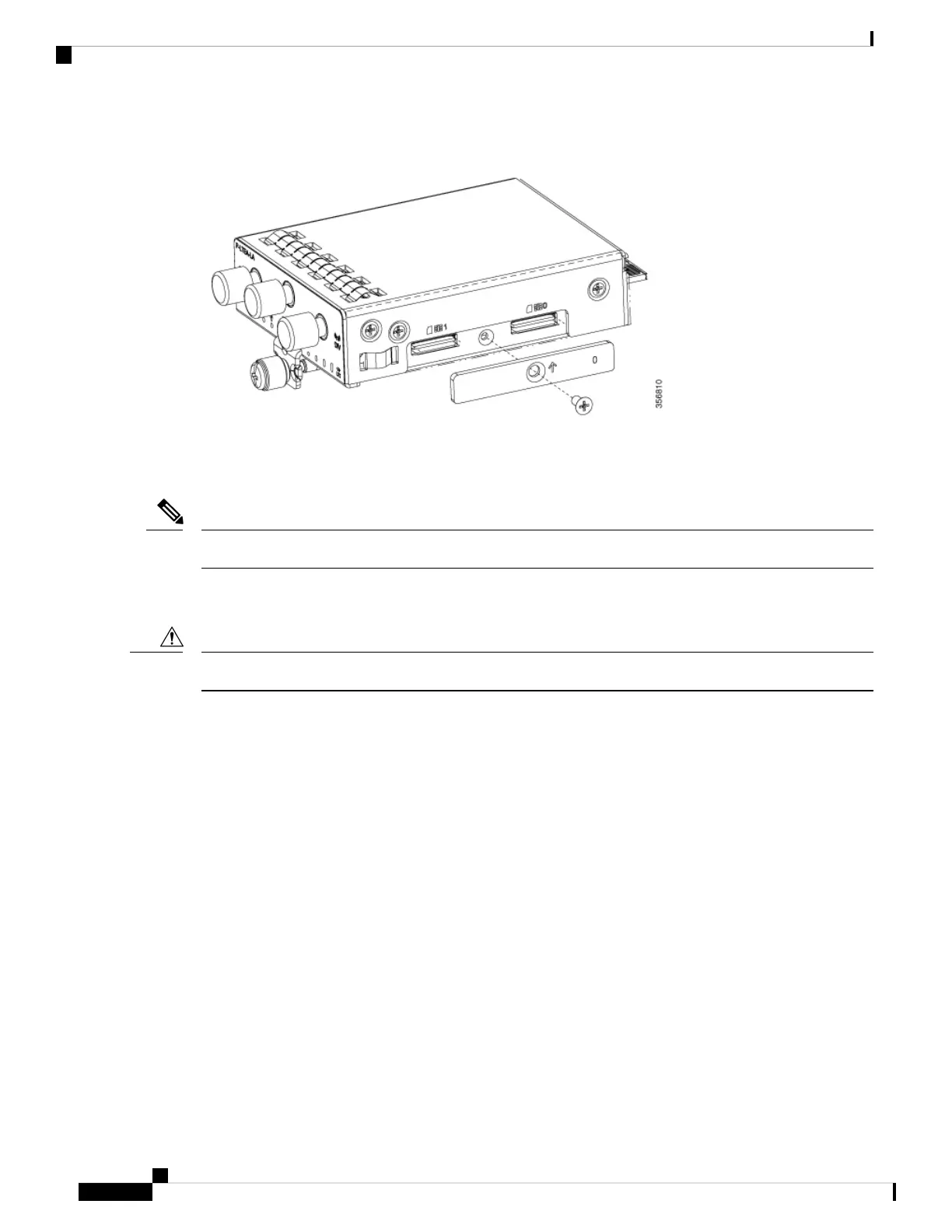

Figure 5: C1118-8PLTEAP with Micro SIM Slots
This section describes how to insert a Micro-SIM card into an LTE pluggable module.
To insert the Micro-SIM cards into an LTE Pluggable module:
Ensure to use the correct tool for removing the Micro-SIM door.
Note
1. Place the pluggable module on its bottom side, remove the SIM door screw, use a #1 Philips screw driver
for removing the screws, and then carefully remove the Micro-SIM cover from the pluggable module.
Do not touch any part of the exposed PCB circuit area when the Micro-SIM cover is removed.
Caution
2. In the figure, step 2 below shows the Micro-SIM slot 1 (label 1) and Micro-SIM slot 0 (label 2).
3. Push in each Micro-SIM card (label 3) into the slot until it clicks. Secure the Micro-SIM cover with a
screw, use a number 1 Philips screw driver to secure the screw on the Micro-SIM cover. The recommended
torque is 2.8 - 3.8 inch LBF.
4. You have now successfully inserted the Micro-SIM cards into the LTE pluggable module. The marking
on the Mirco-SIM door should align with Micro-SIM0 on the pluggable module with the arrow pointing
upward.
Install and Upgrade Internal Modules and Field Replaceable Units
10
Install and Upgrade Internal Modules and Field Replaceable Units
Install an LTE Pluggable Module on a C1101-4P
