Cisco 1700 Hardware Installation Guide

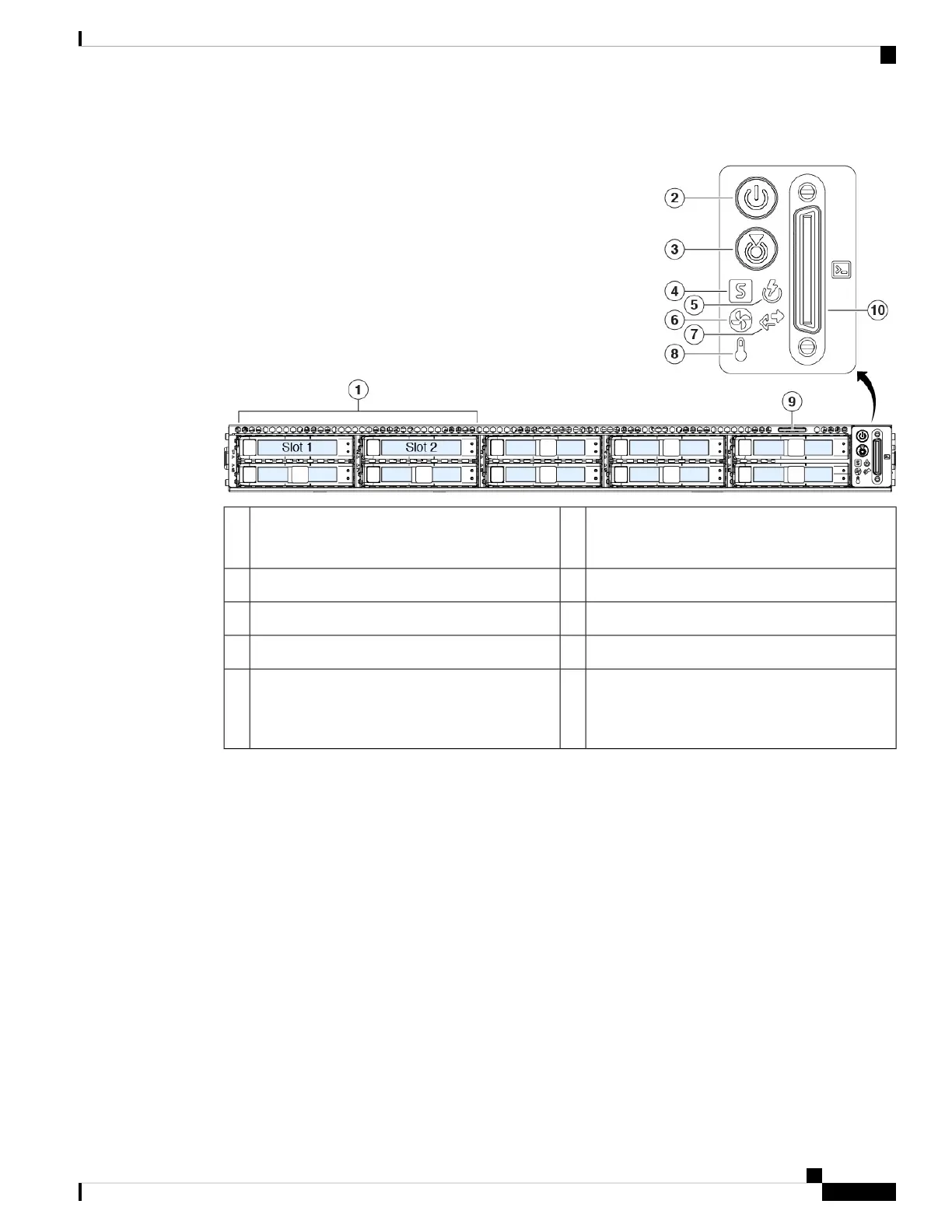

Figure 5: 1700 Front Panel
Power button/power status LED2Drive bays
Supports two SAS HDDs in slots 1 and 2
1
System status LED4Unit identification button/LED3
Fan status LED6Power supply status LED5
Temperature status LED8Network link activity LED7
Keyboard, video, and mouse (KVM) port
Not supported; use the VGA and USB keyboard
ports instead.
10Pullout asset card9
The following figure shows the front panel features and disk-drive configuration for the FMC 2600. See Front
Panel LEDs, on page 9 for a description of the LEDs.
Cisco Secure Firewall Management Center 1700, 2700, and 4700 Hardware Installation Guide
7
Overview
Front Panel
