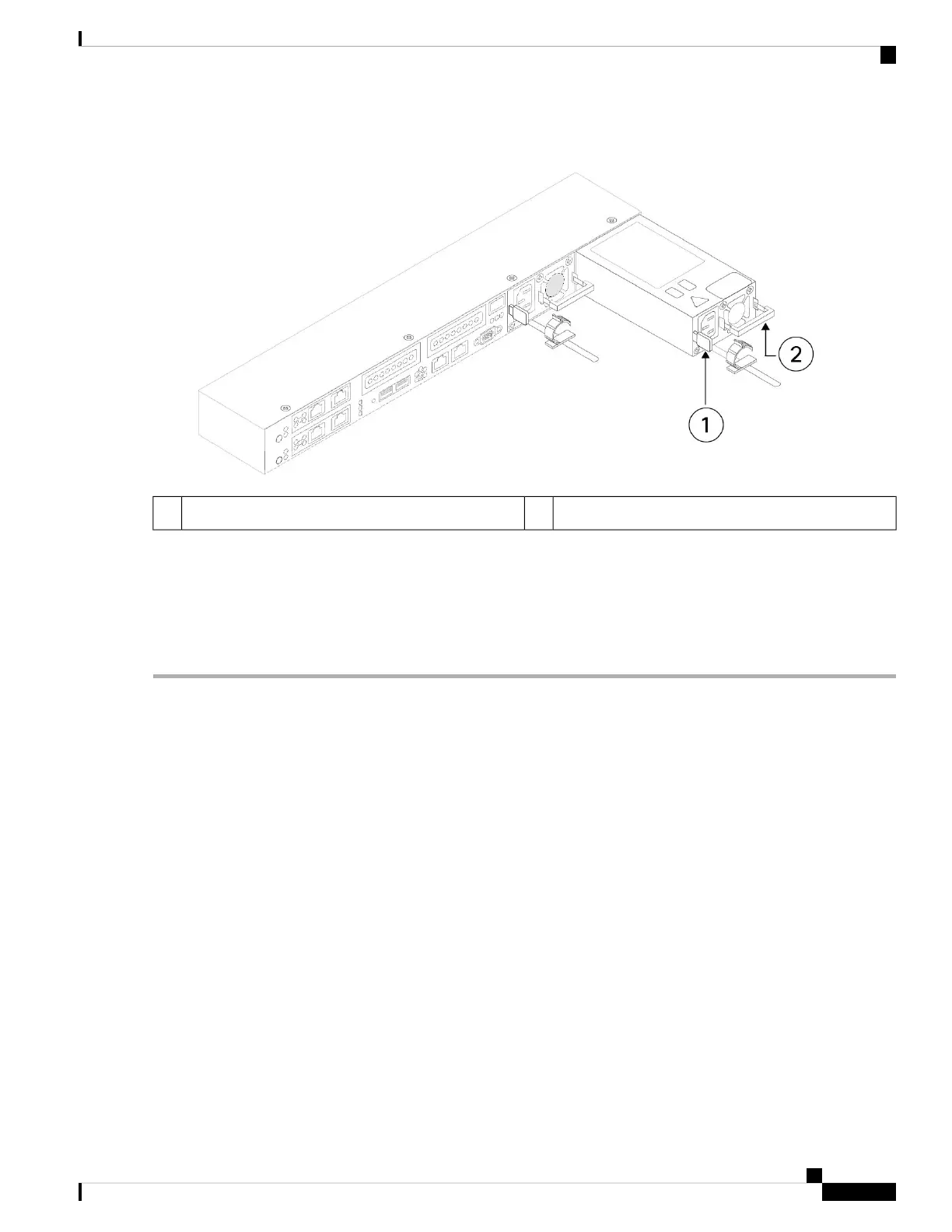

Figure 36: Remove and Replace the AC Power Supply
Handle2Release lever1
Step 2 Install a new power supply:
a) Grasp the power supply handle and insert the new power supply into the empty bay.
b) Push the power supply into the bay until the release lever locks.
c) Connect the power cord to the new power supply.
d) If you shut down the chassis, press the Power button to return it to main power mode.
Cisco Secure Firewall Management Center 1700, 2700, and 4700 Hardware Installation Guide
41
Installation, Maintenance, and Upgrade
Remove and Replace a Power Supply
