Cisco 2500 Series Wireless Controller Getting Started Guide
Installing the Controller
Step 2 Start the PC terminal emulation program.
Step 3 Configure the terminal emulation program for the following parameters:
• 9600 baud
• 8 data bits
• No flow control
• 1 stop bit
• No parity
Securing the Power Adapter Cable
To secure the power adapter cable to the 2504 controller, use the plastic relief clip shipped with the cable.
The clip relieves the cable in the event it falls and prevents the connector from being sheared off at the
plug pins.
Caution If the relief clip is not installed, the power connector can be damaged if the power cable is pulled or if
the power adapter falls.
Note The Cisco 2106 power adapter is not compatible with a 2504 controller.
To secure the power adapter cable and plug, follow these steps:
Step 1 Wrap the power adapter cable through the plastic security clip as shown in Figure 11.

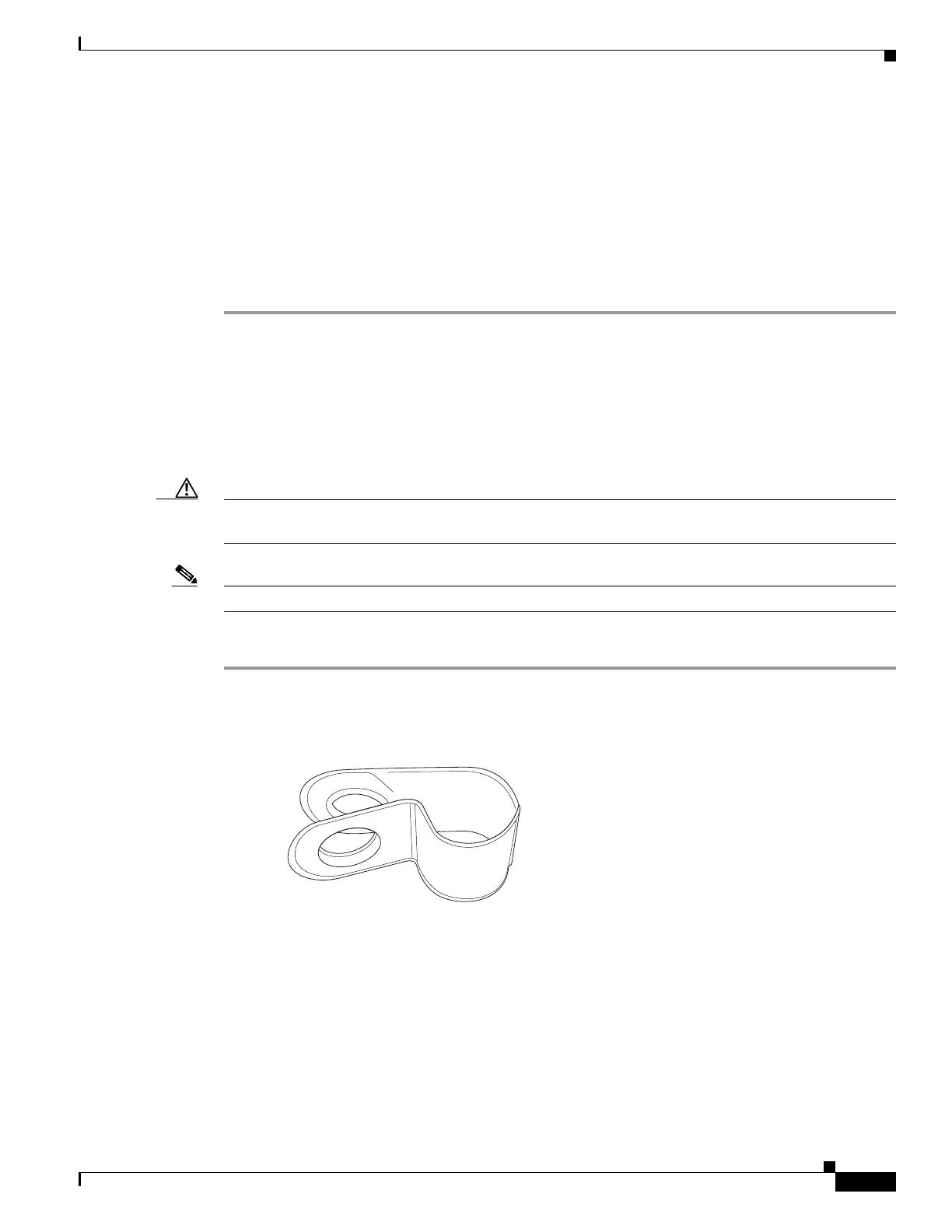

Figure 11 Plastic Relief Clip
Step 2 Fasten the security clip with a screw to the existing hole on the back panel on the 2504 controller (see
Figure 12).
281917
