Cisco 1721, 1760, 2621XM, 2651XM, 2691, 3725, and 3745 Modular Access Routers and 7206-VXR NPE-400 Router FIPS 140-2 Non-Proprietary
OL-6083-01
The Cisco 1721, 1760, 2621XM, 2651XM, 2691, 3725, 3745, and 7206 VXR NPE-400 Routers

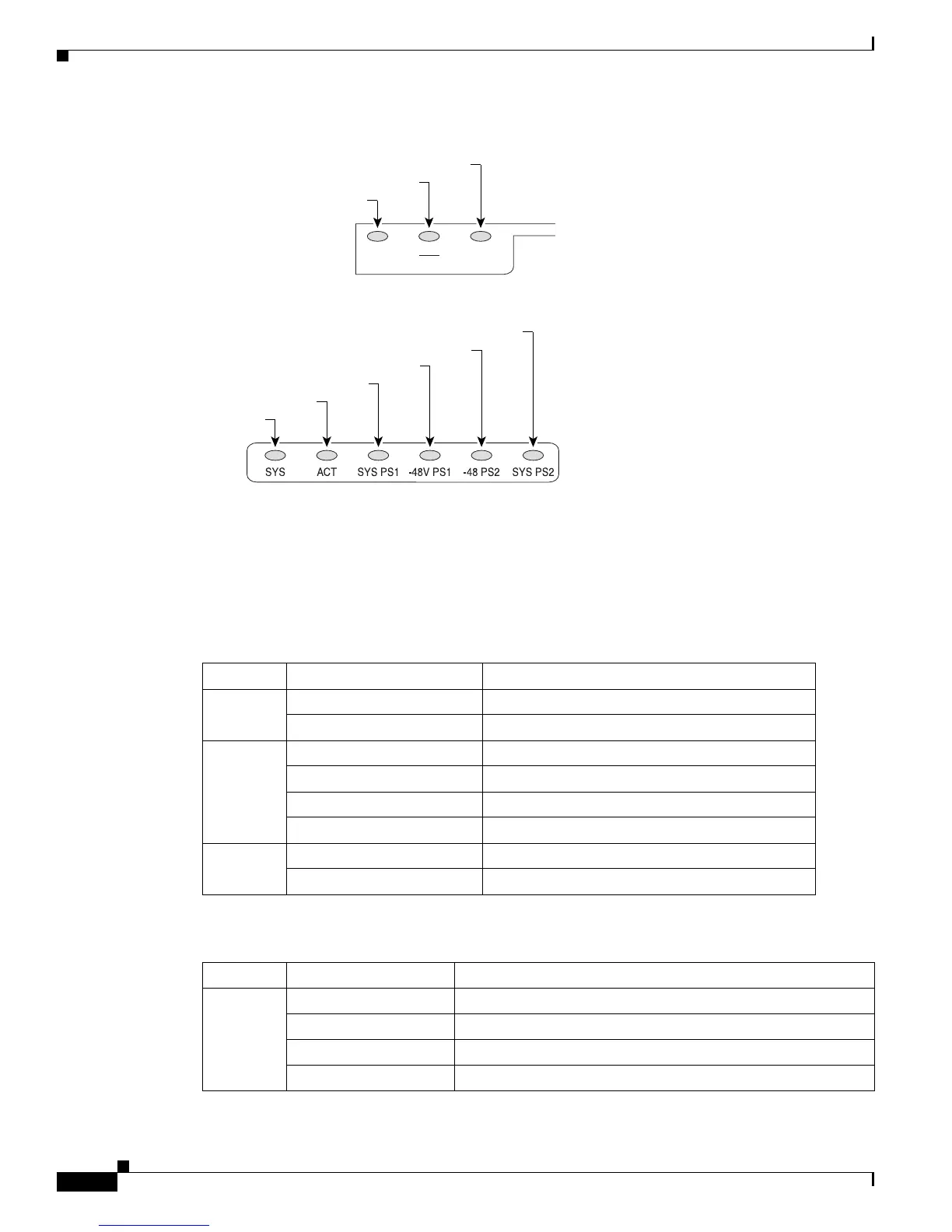

Figure 17 Cisco 3725 and Cisco 3745 Front Panel LEDs
Figure 17 shows the front panel LEDs, which provide overall status of the router's operation. The front
panel displays whether or not the router is booted, if the redundant power is (successfully) attached and
operational, and overall activity/link status.
Table 13 and Table 14 provide more detailed information conveyed by the LEDs on the front panel of
the routers:
SYS LED
ACT LED
SYS PS1 LED
-48V PS1 LED
-48 PS2 LED
SYS PS2 LED
PWR LED
SYS/RPS LED
ACT LED
PWR
SYS
RPS
ACT
99507
Table 13 Cisco 3725 Front Panel LEDs and Descriptions
LED Indication Description
PWR Solid green Router is receiving power
Off Router is not receiving power
SYS/RPS Solid green System is operating normally
Rapid blinking System is booting up or in ROM monitor mode
Blinking once per second Redundant power system has failed
Off Router is not receiving power
ACT Blinking System is actively transferring packets
Off No packet transfers are occurring
Table 14 Cisco 3745 Front Panel LEDs and Descriptions
LED Indication Description
SYS Solid green System is operating normally
Blinking green Running ROM monitor with no errors detected
Amber Router is receiving power but malfunctioning
Off Router is not receiving power
