Installing and Upgrading Fans in Cisco 2811 Series Routers
78-17850-01
Installing and Removing the Fans

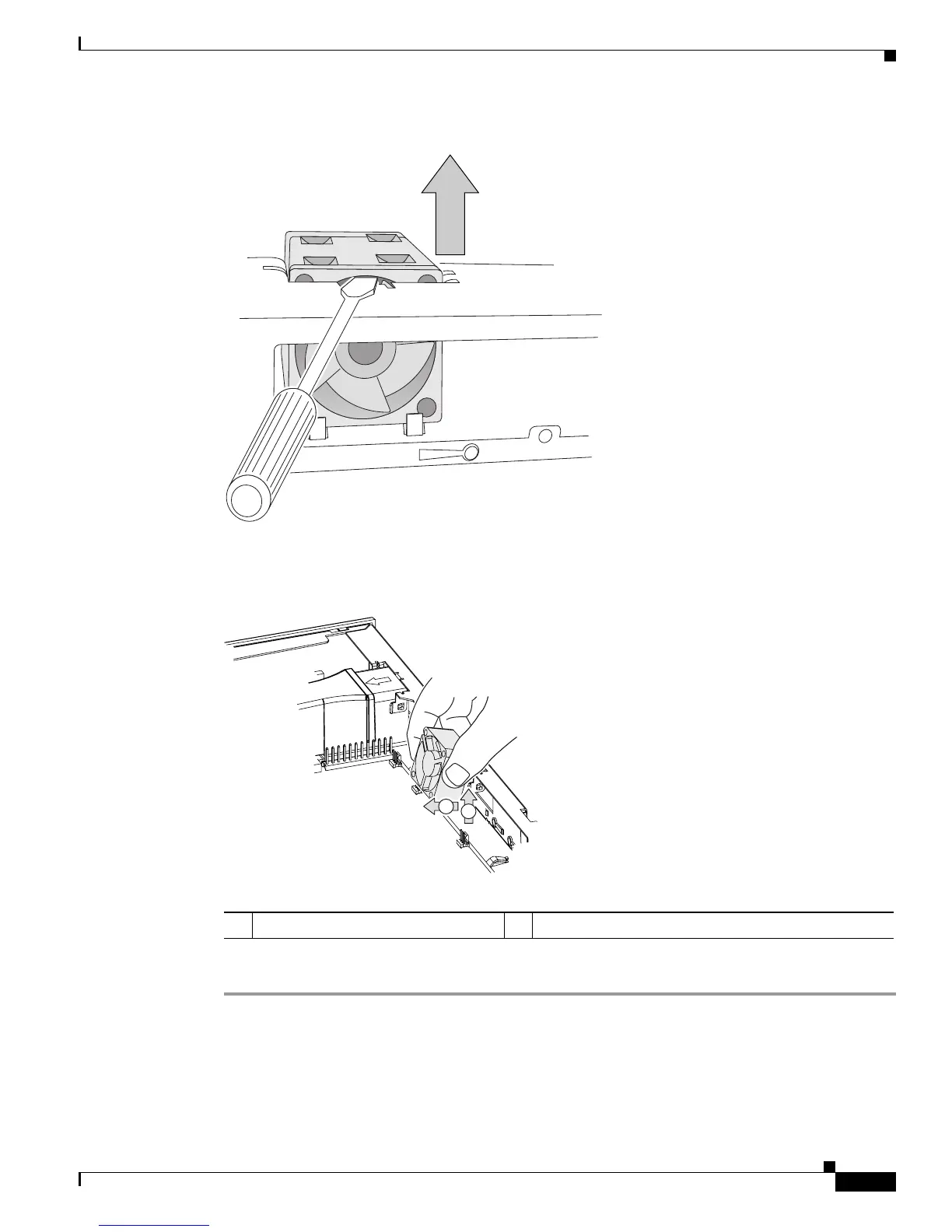

Figure 7 Using a Flat-Blade Screwdriver for Added Leverage When Removing the Fan
Figure 8 shows the fan being tilted away from the chassis to remove it.
Figure 8 Lifting and Tilting the Fan to Remove
Step 5
Place the fan in an antistatic bag to protect it from ESD damage.
170531
1 Lift the fan upward 2 Tilt the fan toward chassis
170498
2
1
2
