Upgrading System Memory in Cisco 3700 Series Routers
OL-5423-02
Upgrading System Memory in Cisco 3745 Routers
Step 5 Open the front panel to the straight-out position and lift it off its hinges. (See Figure 7 parts 1 and 2.)

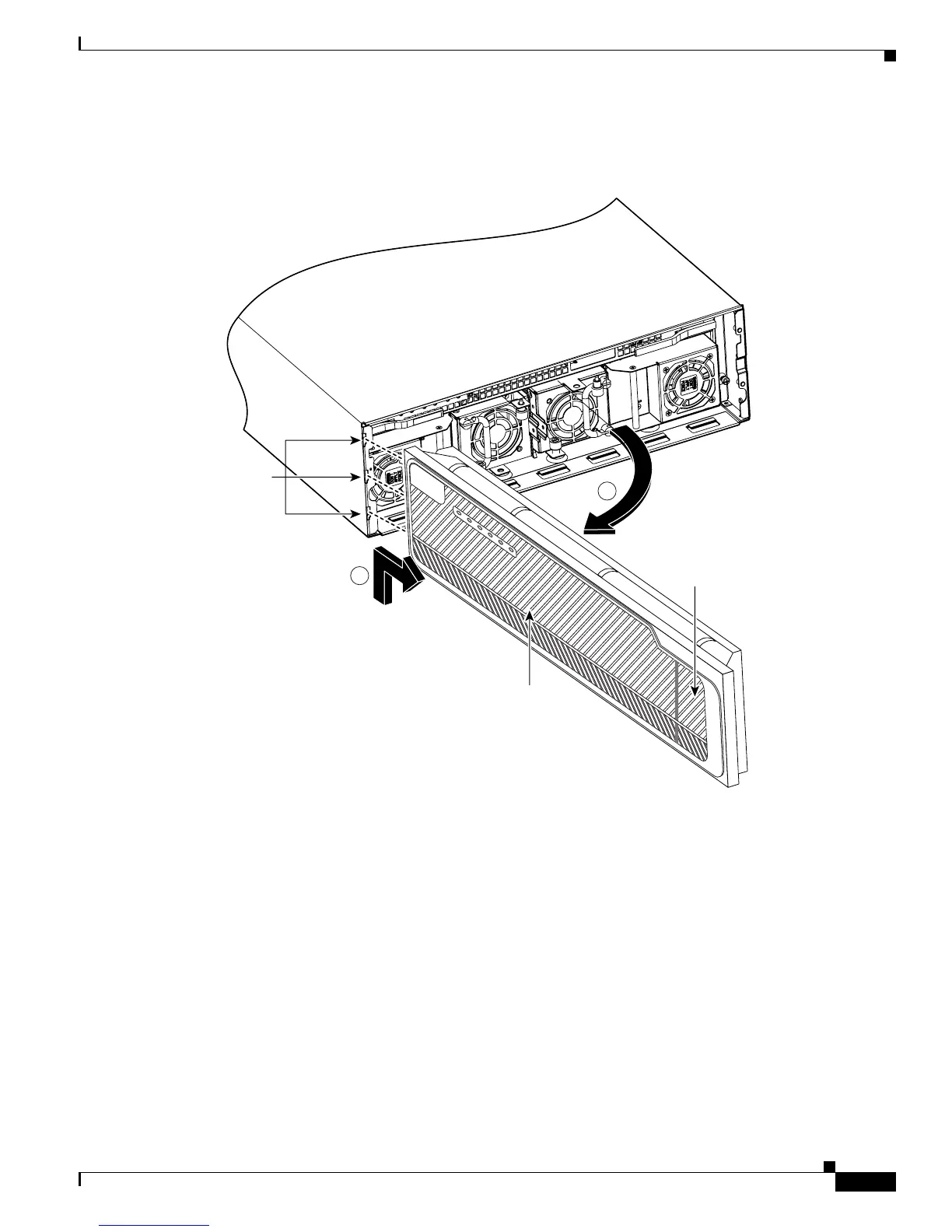

Figure 7 Removing the Front Panel from a Cisco 3745 Router
Step 6
Loosen the two captive retention screws, one on either side of the motherboard. (See Figure 8.)
Step 7 Pull the ejector levers at both sides, and carefully pull the mainboard straight out of the chassis. Place it
on an antistatic surface.
62481
1
2
Hinges
Access door
Fan tray
