Upgrading System Memory in Cisco 3700 Series Routers
OL-5423-02
Upgrading System Memory in Cisco 3745 Routers
Replacing the Cisco 3745 Mainboard
To replace the mainboard, follow these steps:
Step 1 Place the chassis so that the empty mainboard slot faces you.
Step 2 With the ejector levers fully open, carefully insert the mainboard tray into the chassis slot until the
connector is engaged. (See Figure 12.)

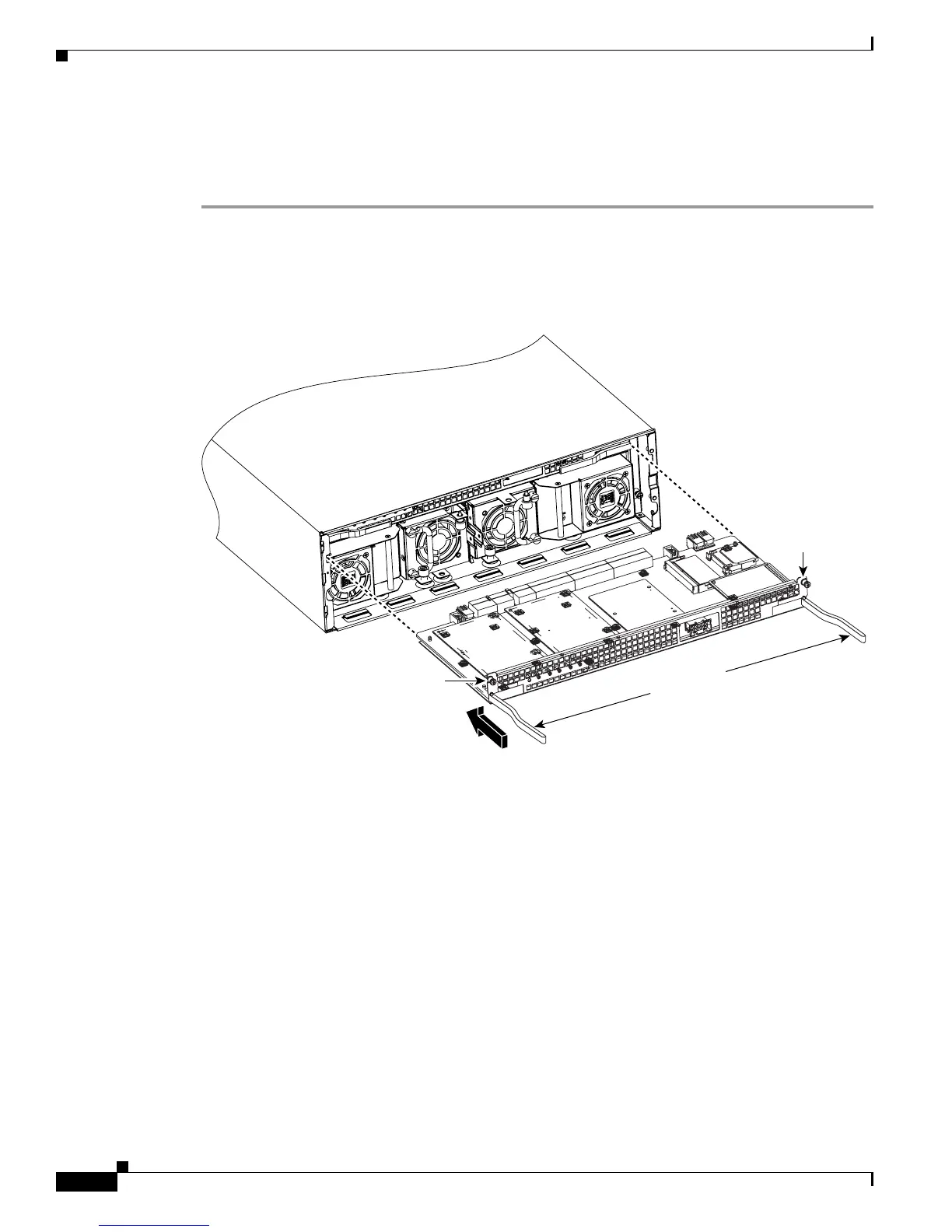

Figure 12 Inserting the Mainboard into a Cisco 3745 Router
Step 3
Close the ejector levers to fully seat the mainboard connector.
Step 4 With a number 2 Phillips screwdriver, tighten the two captive retention screws, one on either side of the
mainboard.
Step 5 Hold the front panel straight out from the chassis, engage the hinges, and close the front panel. (See
Figure 13 parts 1 and 2.)
72136
Captive
retention
screw
Ejector levers
Captive
retention
screw
