Cisco 3600 Series

6 Cisco 3600 Series Memory Upgrade Configuration Note
Removing the Cover

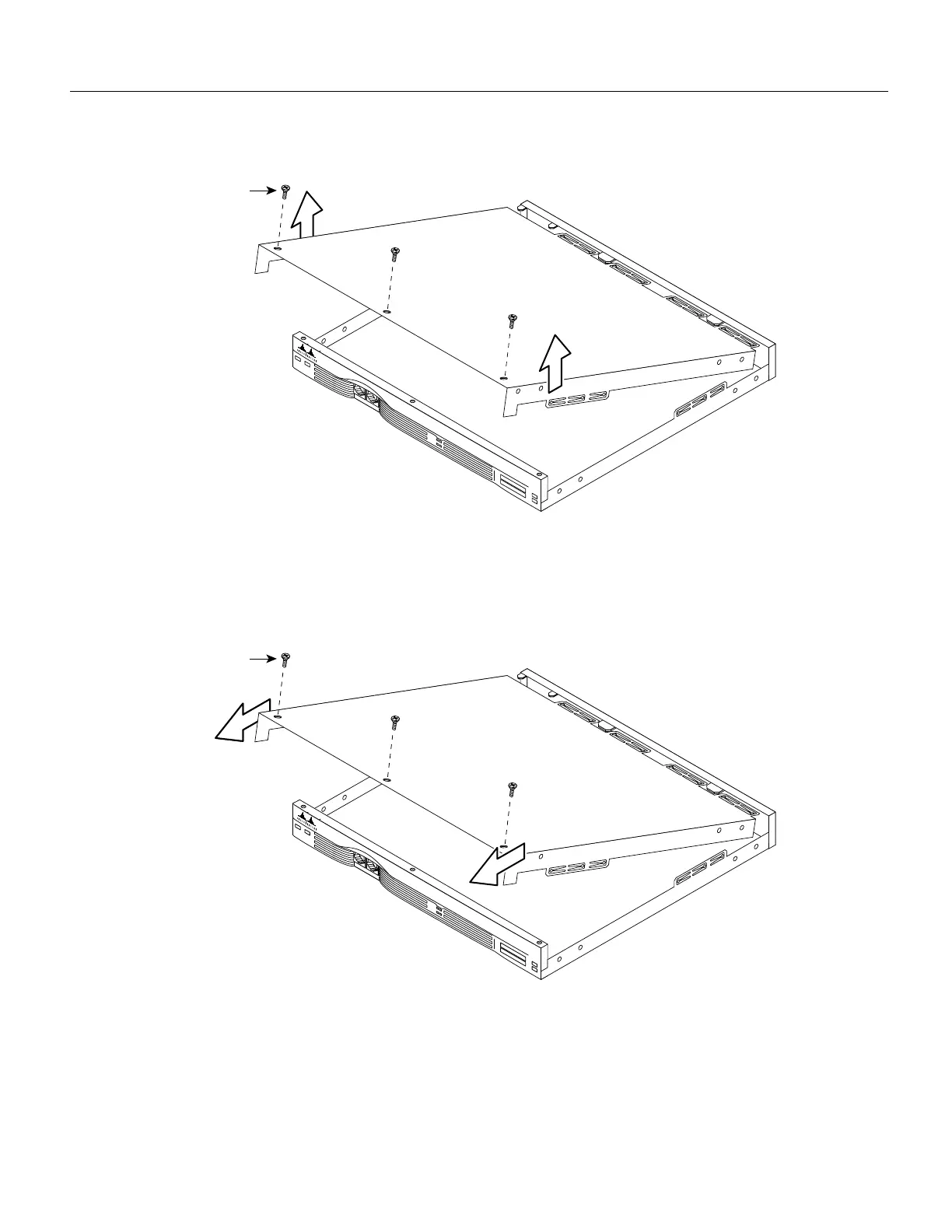

Figure 1 Lifting the Cover
Step 6
Pull the cover toward you until the metal tabs on the rear edge separate from the chassis
bottom. (See Figure 2 for the Cisco 3620 and Figure 3 for the Cisco 3640.)
Figure 2 Removing the Cisco 3620 Cover
H7242
Screw
PCMCIA
0
ACTIVE
READY
1
1
0
SYSTEM
CON
AUX
RPS
H7241
Screw
PCMCIA
0
ACTIVE
READY
1
1
0
SYSTEM
CON
AUX
RPS
