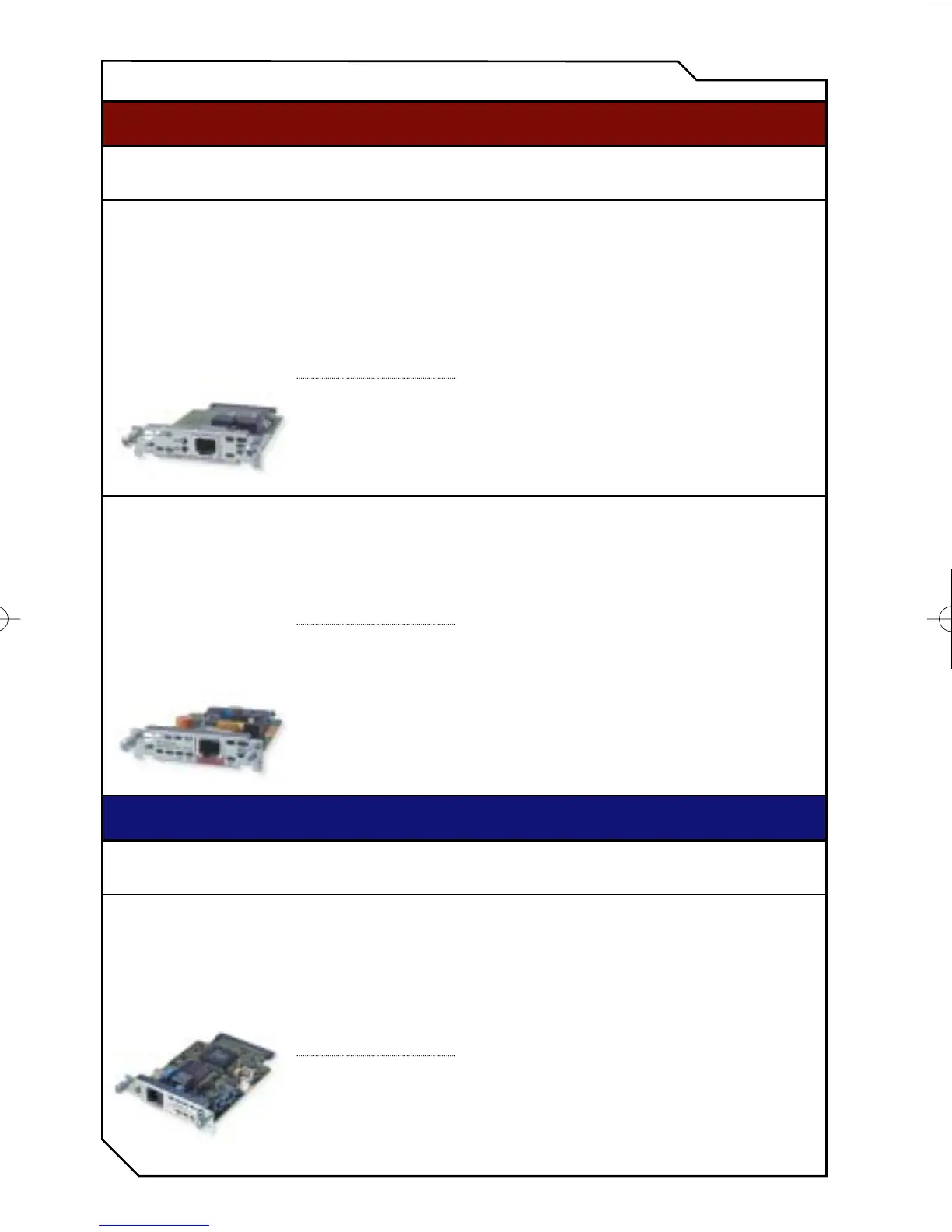

Interface Cards for Cisco 1700, 2600XM, 3600, and 3700 Series
78
ISDN BRI WICs
Product Description
Supported Platforms
and Minimum Cisco
IOS Versions Comments
WIC-1B-S/T
1-port ISDN WIC
Provides a single ISDN BRI
connection via an RJ-45
connector. It requires an
external NT-1 device for
connection to the WAN.
This interface card inserts
into a Cisco mixed-media
network module or
directly into a Cisco WIC
expansion slot.
Modular Router Solutions
ISDN Concentration
Dial-up Remote Access
3700 Series – 12.2(8)T
3660 Series – 12.0(5)T
3640 – 11.2(4)XA
3620 – 11.2(4)XA
2691 – 12.2(8)T
2600XM Series – 12.1(14)
mainline, 12.2(12)
mainline (future),
12.2(8)T1
2650 Series – 12.1(3)T
2620 Series – 11.3(2)XA
2610 Series – 11.3(2)XA
1760 – 12.2(2)XK
[12.2(11)T–CQ3’02]
1751 – 12.2(4)T
1721 – 12.2(8)T
When used in a Cisco 3600
Series router, requires one
of the following mixed-
media network modules:
NM-2W, NM-1E2W, NM-
2E2W, NM-1E1R2W,
NM-1FE2W, NM-2FE2W or
NM-1FE1R2W
DSL WICs
Product Description
Supported Platforms
and Minimum Cisco
IOS Versions Comments
WIC-1ADSL
1-port asymmetric digital
subscriber line WIC
Provides a single ADSL
connection at uplink
speeds up to 1 Mbps and
downlink speeds up to 8
Mbps. This interface card
inserts into a Cisco mixed-
media network module or
directly into a Cisco WIC
expansion slot.
Modular Router Solutions
DSL Access
3700 Series – 12.2(8)T
3660 Series – 12.1.1(5)YB
3640 – 12.1.1(5)YB
3620 – 12.1.1(5)YB
2691 – 12.2(8)T
2600XM Series – 12.2(12)
mainline (future),
12.2(8)T1
2650 Series – 12.1.1(5)YB
2620 Series – 12.1.1(5)YB
2610 Series – 12.1.1(5)YB
1760 – 12.2(2)XK
[12.2(11)T–CQ3’02]
1751 – 12.2(4)T
1721 – 12.2(8)T
When used in a Cisco 3600
Series router, requires one
of the following mixed-
media network modules:
NM-2W, NM-1FE2W, NM-
2FE2W or NM-1FE1R2W.
When using the Cisco
1700 Series, requires a
Cisco IOS IP/DSL module.
When using the Cisco
2600, Cisco 3600, and
Cisco 3700 Series,
requires a Cisco IOS
”Plus” feature set.
WIC-1B-U
1-port ISDN with NT-1 WIC
Provides a single ISDN BRI
connection via an RJ-45
connector. This interface
card inserts into a Cisco
mixed-media network
module or directly into a
Cisco WIC expansion slot.
Modular Router Solutions
ISDN Concentration
Dial-up Remote Access
3700 Series – 12.2(8)T
3660 Series – 12.0(5)T
3640 – 11.2(4)XA
3620 – 11.2(4)XA
2691 – 12.2(8)T
2600XM Series – 12.1(14)
mainline, 12.2(12)
mainline (future),
12.2(8)T1
2650 Series – 12.1(3)T
2620 Series – 11.3(2)XA
2610 Series – 11.3(2)XA
1760 – 12.2(2)XK
[12.2(11)T–CQ3’02]
1751 – 12.2(4)T
1721 – 12.2(8)T
When used in a Cisco 3600
Series router, requires one
of the following mixed-
media network modules:
NM-2W, NM-1E2W, NM-
2E2W, NM-1E1R2W,
NM-1FE2W, NM-2FE2W or
NM-1FE1R2W
AccessRouter_10.21.02 10/24/02 3:31 PM Page 78

Cisco 3700 series Specifications

General

Connectivity Technology	Wired
Operating System	Cisco IOS
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	-4 to 149°F (-20 to 65°C)
Routing Protocols	BGP, OSPF, EIGRP, RIP, IS-IS
Network Management	SNMP, CiscoWorks
Security Features	ACLs, VPN, Firewall, RADIUS, TACACS+
Product Type	Network Router
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, Serial, Frame Relay, ATM
Network/Transport Protocol	TCP/IP, UDP
Remote Management Protocol	SNMP, Telnet, SSH
Features	Quality of Service (QoS)
WAN Interfaces	Serial, ISDN, Frame Relay, ATM
LAN Interfaces	Ethernet, Fast Ethernet, Gigabit Ethernet
Processor	Motorola PowerPC
Interfaces	Variety of modular interface cards including Ethernet, Fast Ethernet, Gigabit Ethernet, Serial, ISDN, ATM, and Voice/WAN Interface Cards (VICs/VWICs)
