1-2
Cisco 3700 Series Routers Hardware Installation Guide
OL-2180-08
Chapter 1 Overview of Cisco 3700 Series Routers
Hardware Features
• Two slots for network modules, one of which can accommodate a double-wide network module
• Three interface card slots
• Two Cisco 3700 CompactFlash slots (one external and one internal)
• Two AIM slots
• Installation in a 19- or 23-inch rack or on a desk
• Support for Cisco Redundant Power System
• 2-rack unit (RU) chassis height

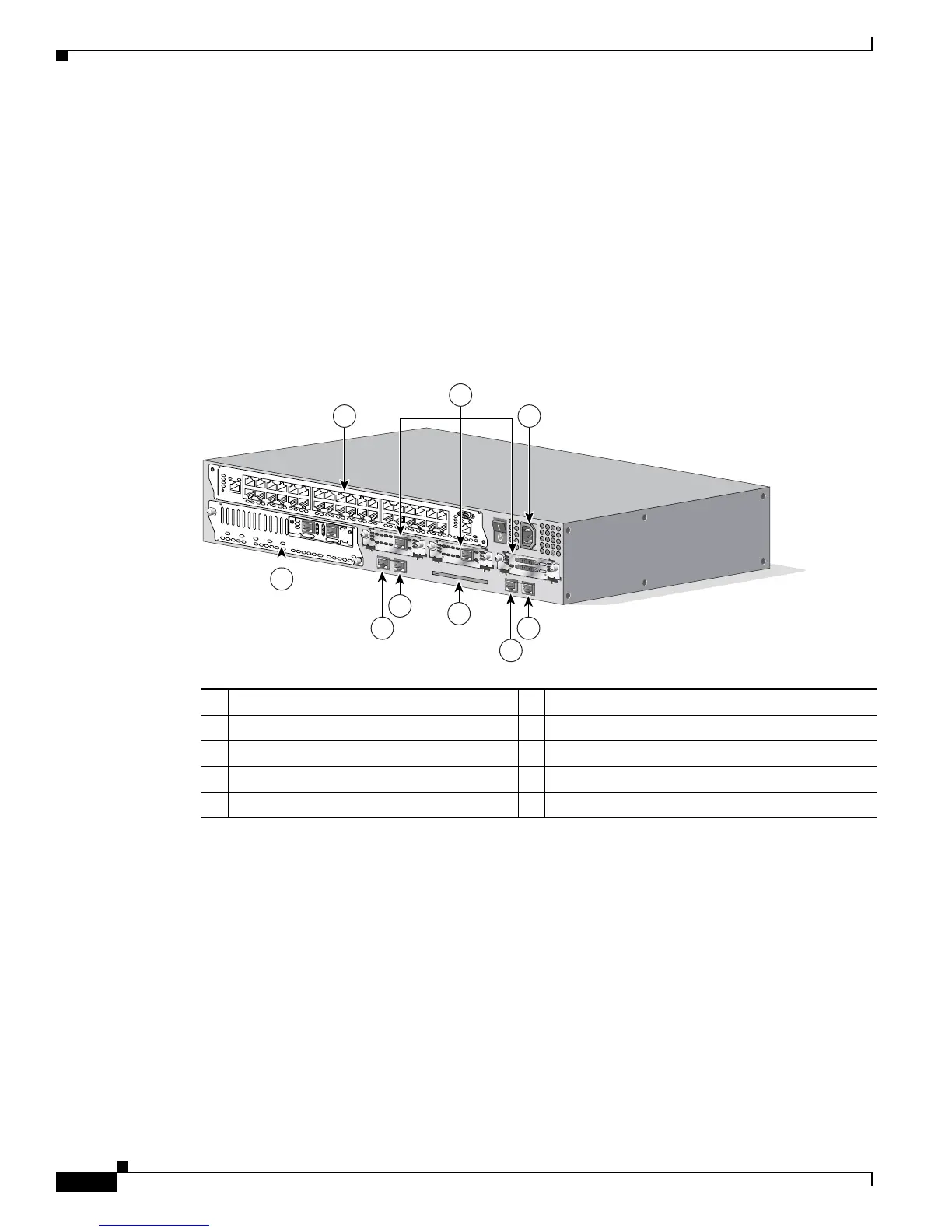

Figure 1-1 shows the rear panel of the Cisco 3725 router.
Figure 1-1 Rear Panel of the Cisco 3725 Router
Cisco 3745
Cisco 3745 routers include the following additional features:
• High-performance 350-MHz RISC processor
• Up to 256 MB SDRAM
• Up to 128 MB CompactFlash memory
• Four slots for network modules that can accommodate up to two double-wide network modules
• Three interface card slots
• Two Cisco 3700 CompactFlash memory card slots (one external and one internal)
• Two AIM slots
1 Double-wide network module slot 6 CompactFlash memory card slot
2 Interface card slots 7 Fast Ethernet 0/0 port
3 Power supply 8 Fast Ethernet 0/1 port
4 Auxiliary port 9 Single-wide network module slot
5 Console port
62691
SEE MANUAL BEFORE INSTALLATION
AL
CD
LP
RD
TD
SEE MANUAL BEFORE INSTALLATION
DSU
56K
AL
CD
LP
RD
TD
SEE MANUAL BEFORE INSTALLATION
DSU
56K
EN
V0
BANK 4
BANK 3
BANK 2
BANK 1
BANK 0
NM-HDV
VWIC
2MFT-E1
SEE
MANUAL
BEFORE
INSTALLATION
CTRLR E2
CTRLR E1
AL
LP
CD
1 3
2
4
6
5
7
9
8

Cisco 3700 Specifications

General

Routing Protocols	BGP, OSPF, EIGRP, RIP, IS-IS
Connectivity Technology	Wired
Remote Management Protocol	SNMP, Telnet, SSH, HTTP, HTTPS
Operating System	Cisco IOS
Interfaces	Varies by module
Performance	Varies by configuration
Security Features	Firewall, VPN, ACLs, IPS
Product Type	Router
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Network/Transport Protocol	TCP/IP, UDP
Features	QoS
Router Type	Modular
WAN Interfaces	Varies by module
LAN Interfaces	Ethernet, Fast Ethernet, Gigabit Ethernet
Processor	Varies by model
Memory	Varies by model
Flash Memory	Varies by model
Dimensions	Varies by model
Weight	Varies by model
Form Factor	Rack-mountable
Power Supply	Internal AC power supply, optional redundant power supply
