4 Cisco 4000 Series Rack-Mount and Wall-Mount Installation
Preparing the Chassis for Rack-Mounting or Wall-Mounting
Warning Hazardous voltages may exist in or near the power supply, so use extreme caution when
working near the power supply. Before starting any of these procedures, turn OFF power to the
system, unplug the power cord, disconnect any cables at the ports, and connect your ESD-preventive
wrist strap.
Old and New Versions of Chassis Shell
Cisco 4000 series routers have two chassis versions. (See Figure 1.) In the old version of the chassis,
the rack-mount and wall-mount brackets are secured to the chassis with tabs located on the inside of
the chassis shell. Newer versions of the chassis use screws to attach the brackets to the side of the
chassis shell. The rack-mount and the wall-mount brackets supplied with this kit can be used with
both types of chassis.

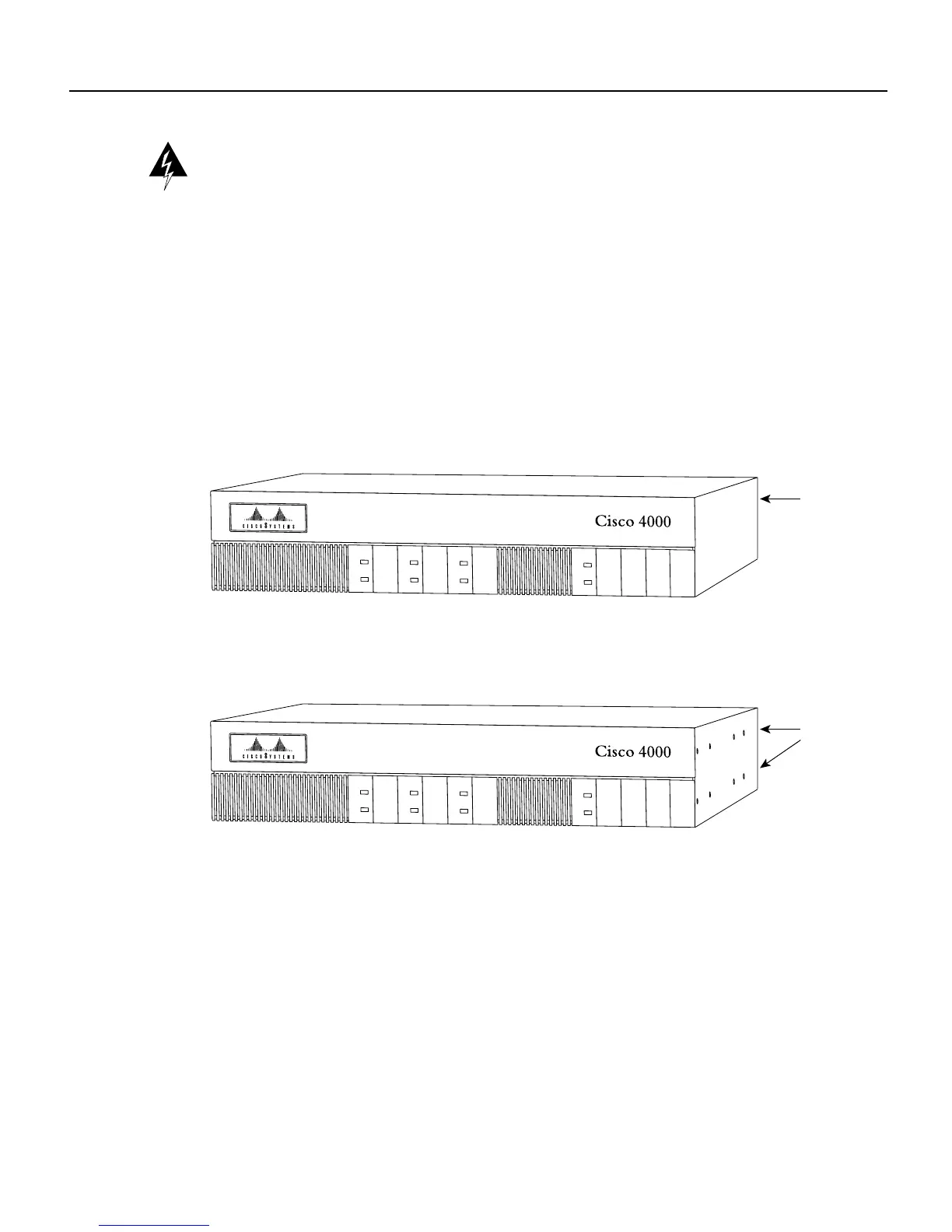

Figure 1 Old and New Versions of the Cisco 4000 Series Chassis Shell
Preparing the Chassis for Rack-Mounting or Wall-Mounting
To rack-mount or wall-mount the chassis, you must first remove the front panel and component tray
from the chassis shell.
Some Cisco 4000 series routers have a safety latch tab on the chassis that affects removing the
component tray. (See Figure 2 and Figure 3.)
If you have a chassis with a safety latch tab, follow the procedure in the following section,
“Removing the Component Tray from a Chassis with a Safety Latch.”
If you have a chassis without a safety latch tab, follow the procedure in the section “Removing the
Component Tray from a Chassis without a Safety Latch,” later in this document.
2
DATA
OK
3
DATA
OK
1
DATA
OK
POWER
OK
2
DATA
OK
3
DATA
OK
1
DATA
OK
POWER
OK
H6082
Old version
Smooth
sides
New version
SERIES
SERIES
Bracket
mounting
holes
