Preparing the Chassis for Rack-Mounting or Wall-Mounting
Removing the Component Tray from a Chassis with a Safety Latch
Warning Hazardous voltages may exist in or near the power supply, so use extreme caution when
working near the power supply. Before starting any of these procedures, turn OFF power to the
system, unplug the power cord, disconnect any cables at the ports, and attach your ESD-preventive
wrist strap.
Take the following steps to remove the component tray from a chassis with a safety latch:
Step 1 Turn OFF the system power.
Step 2 Attach your ESD-preventive wrist strap.
Step 3 Remove all network and power cables.
Step 4 Loosen the nonremovable screw in the back of the router chassis. The screw is labeled
“Chassis release screw” in Figure 2.

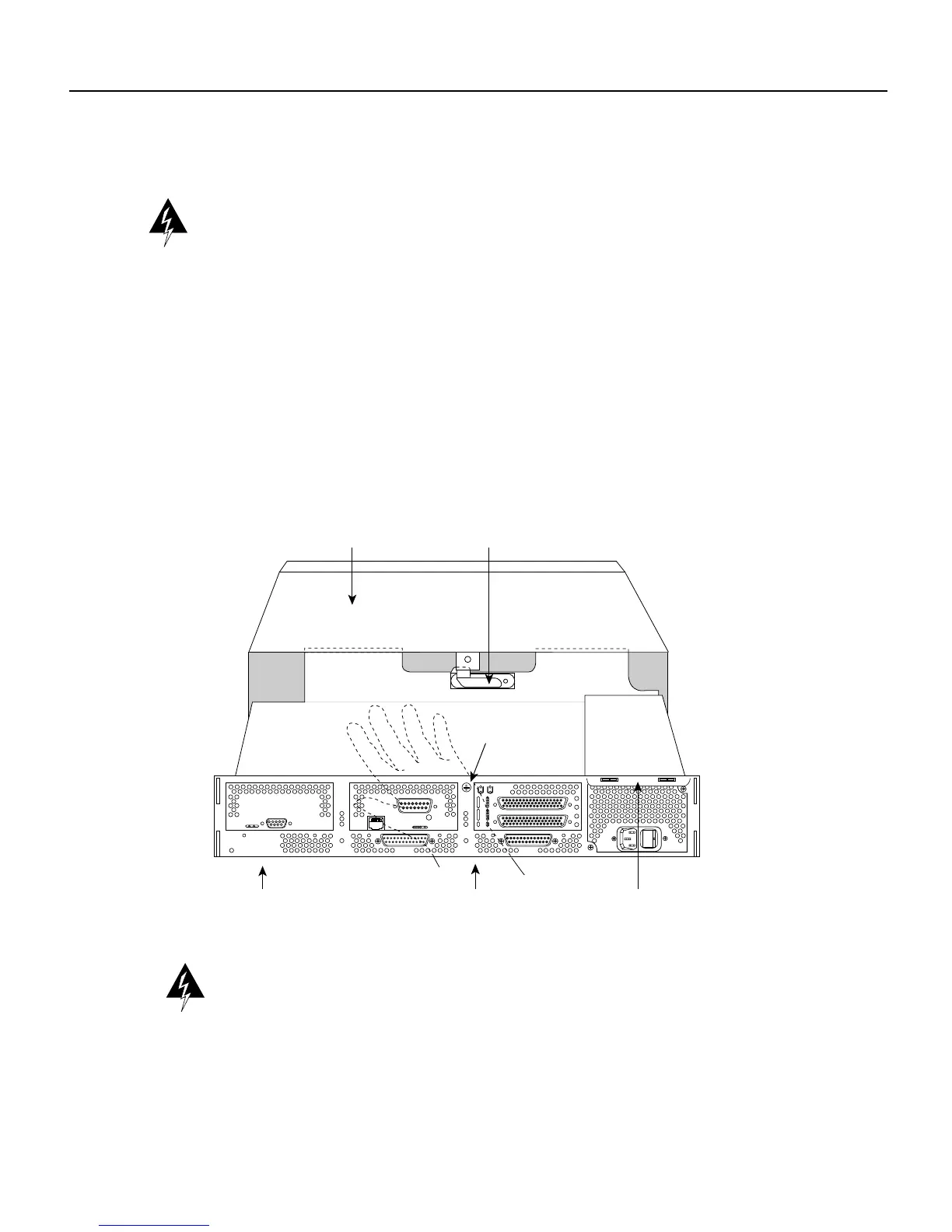

Figure 2 Component Tray Removal for Chassis With a Safety Latch
Warning
Before releasing the safety latch, support the component tray from underneath either on
your work surface or with your hands to prevent it from falling (see Figure 2).
Step 5 Slide the component tray out of the chassis shell while facing the rear panel of the chassis,
pulling the handle on the right side of the chassis until the safety latch catches. (See
Figure 2.)
Step 6 Supporting the component tray with one hand, push down on the safety latch tab while you
pull out on the component tray.
Rear of chassis
Handle
AUX
CONSOLE
INPUT 100-240VAC 50/60HZ 3.0-1.5 AMPS
Safety latch tab
Hand supporting
component tray
H1965
Chassis shell
Chassis release
screw
