Chapter 1 Introducing the Content Router 4430
System Hardware Features
1-4
Cisco Content Router 4430 Hardware Installation Guide
78-12541-01

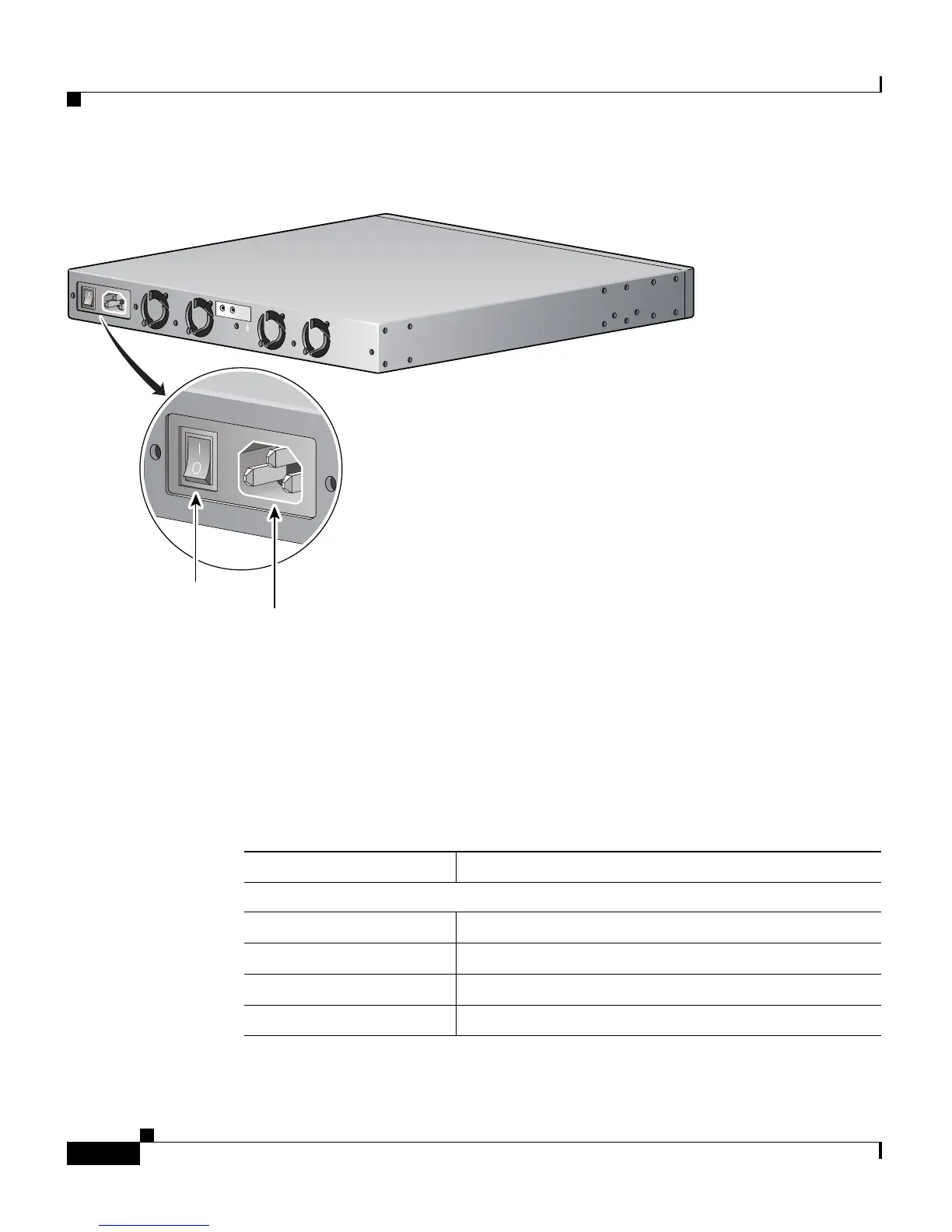

Figure 1-2 Content Router 4430—Back Panel
Ports, Receptacles, and LEDs
Table 1-2 describes the front and back panel ports and receptacles. (See the front
panel in Figure 1-1 and the back panel in Figure 1-2.)
33192
Power switch
Power receptacle
Table 1-2 Ports and Receptacles
Item Description
Front Panel
CONS port This serial port connects to a console.
ETHERNET 0 port The Ethernet cable connects to this port.
ETHERNET 1 port This port is currently not supported.
SCSI LVD only port This port is not supported on the CR-4430.
