1-7
Cisco Content Router 4430 Hardware Installation Guide
78-12541-01
Chapter 1 Introducing the Content Router 4430
System Hardware Features

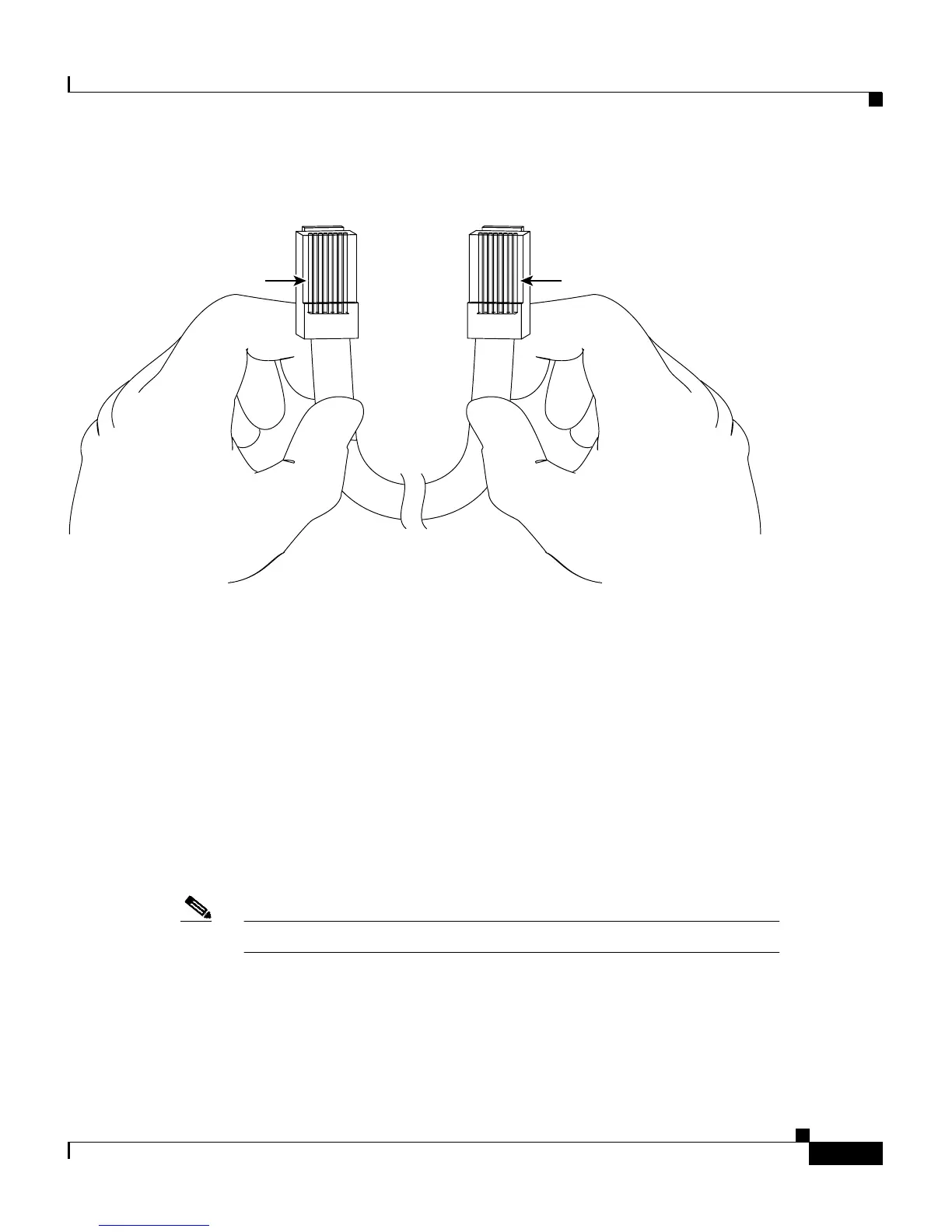

Figure 1-3 Identifying a Rollover Cable
Network Cables
An Ethernet cable is required to connect the Content Router 4430 to your network.
To connect the Content Router 4430 to your network, you must use one of the
following types of cables:
Unshielded twisted-pair (UTP) straight-through cable with RJ-45 connectors
to connect the Content Router 4430 to a Medium Dependent
Interface-crossover (MDI-X) port
RJ-45 to RJ-45 crossover cable to connect the Content Router 4430 to another
MDI port
Note The Ethernet ports on the Content Router 4430 are MDI.
Use a Category 5 UTP cable to connect to a 100BASE-T network.
Pin 1
Pin 8
H3824
Pin 1 and pin 8
should be the
same color
