Chapter 4 Installing the ASA 5505
Ports and LEDs
4-10
ASA 5505 Getting Started Guide
78-18003-02
Front Panel Components
The LINK/ACT indicators on the front panel of the Cisco ASA 5505 are normally
solid green when a link is established and flashing green when there is network
activity. Each Ethernet interface (numbered 0 through 7) has two LEDs: one to
indicate the operating speed and the other to indicate whether the physical link is
established.

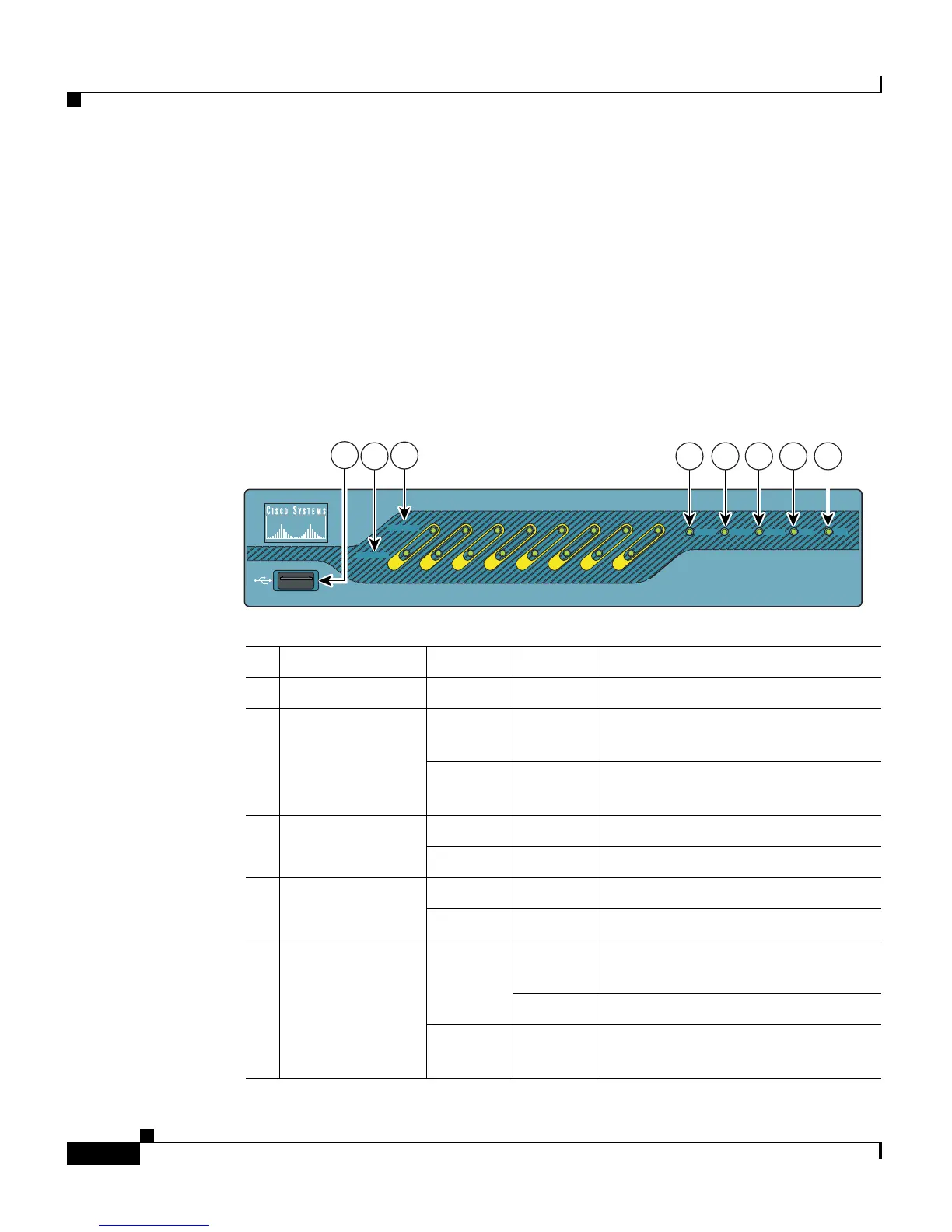

Figure 4-4 illustrates the front panel of the Cisco ASA 5505.
Figure 4-4 ASA 5505 Front Panel
Port / LED Color State Description
1 USB Port — — Reserved for future use.
2 Speed Indicators Not lit — Network traffic is flowing at 10
Mbps.
Green On Network traffic is flowing at 100
Mbps.
3 Link Activity
Indicators
Green Solid The physical link established.
*
Green Flashing There is network activity.
4 Power Green On The device is powered on.
Off — The device is powered off.
5 Status Green Flashing The power-up diagnostics are
running or the system is booting.
Solid The system is operational.
Amber Solid The system has encountered a
problem.
153382
Cisco ASA 5505 series
Adaptive Security Appliance
0
0 0 0 0 0 0 0 0
LINK/ACT
Power Status Active VPN SSC
3
100 MBPS
4 75 6 8
1
2
