Rear Panel Components

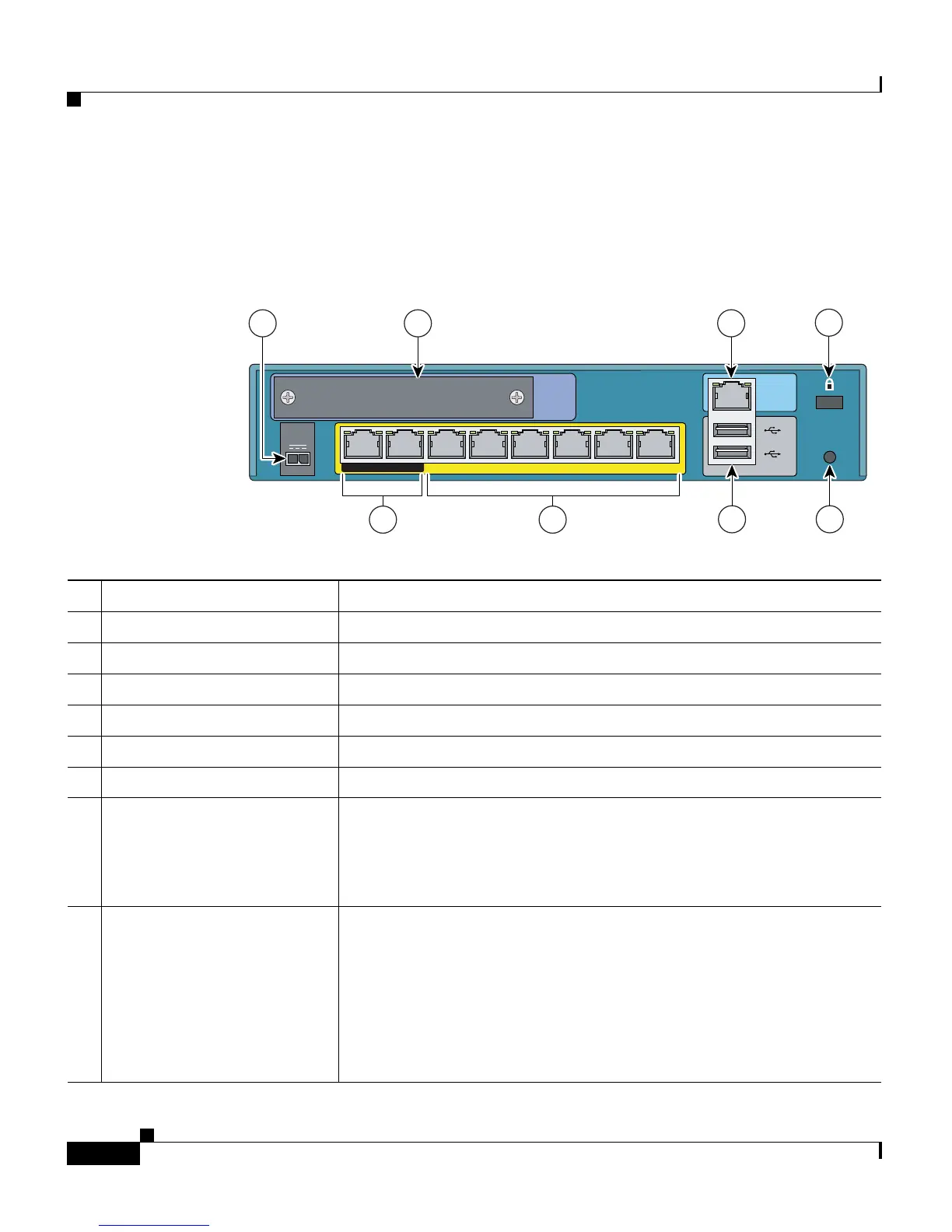

Figure 4-5 illustrates the back panel of the Cisco ASA 5505.
Figure 4-5 ASA 5505 Rear Panel
153383
Security
Services
Card Slot
1
2
Console
RESET
power
48
VDC
7
POWER over ETHERNET 6
543210
2
3
6 5
8 7
1
4
Port or LED Purpose
1 Power connector Attaching the power cord.
2 Security service card slot Reserved for future use.
3 Serial console port Managing the device using the CLI (command-line interface).
4 Lock device Reserved for future use.
5 RESET button Reserved for future use.
6 Two USB v2.0 ports Reserved for future use.
7 Ethernet switch ports 0–7 Layer 2 switch ports that provide flexible VLAN configuration.
Note Ethernet switch ports 6 and 7 also support PoE devices. If
a PoE device is not attached, power is not supplied to the
port and the device must be powered on its own.
8 PoE switch ports 6–7 Can be used for PoE devices, that is, devices that can be powered by
the network interface, such as IP phones.
These ports are the only ports that can be used for IP phones or other
PoE devices. However, these ports are not restricted to that use.
They can also be used as Ethernet switch ports, as are the ports
numbered 0 through 5. If a PoE device is not attached, power is not
supplied to the port and the device must be powered on its own.
