4-5
ASA 5505 Getting Started Guide
78-18003-02
Chapter 4 Installing the ASA 5505
Connecting to Network Interfaces

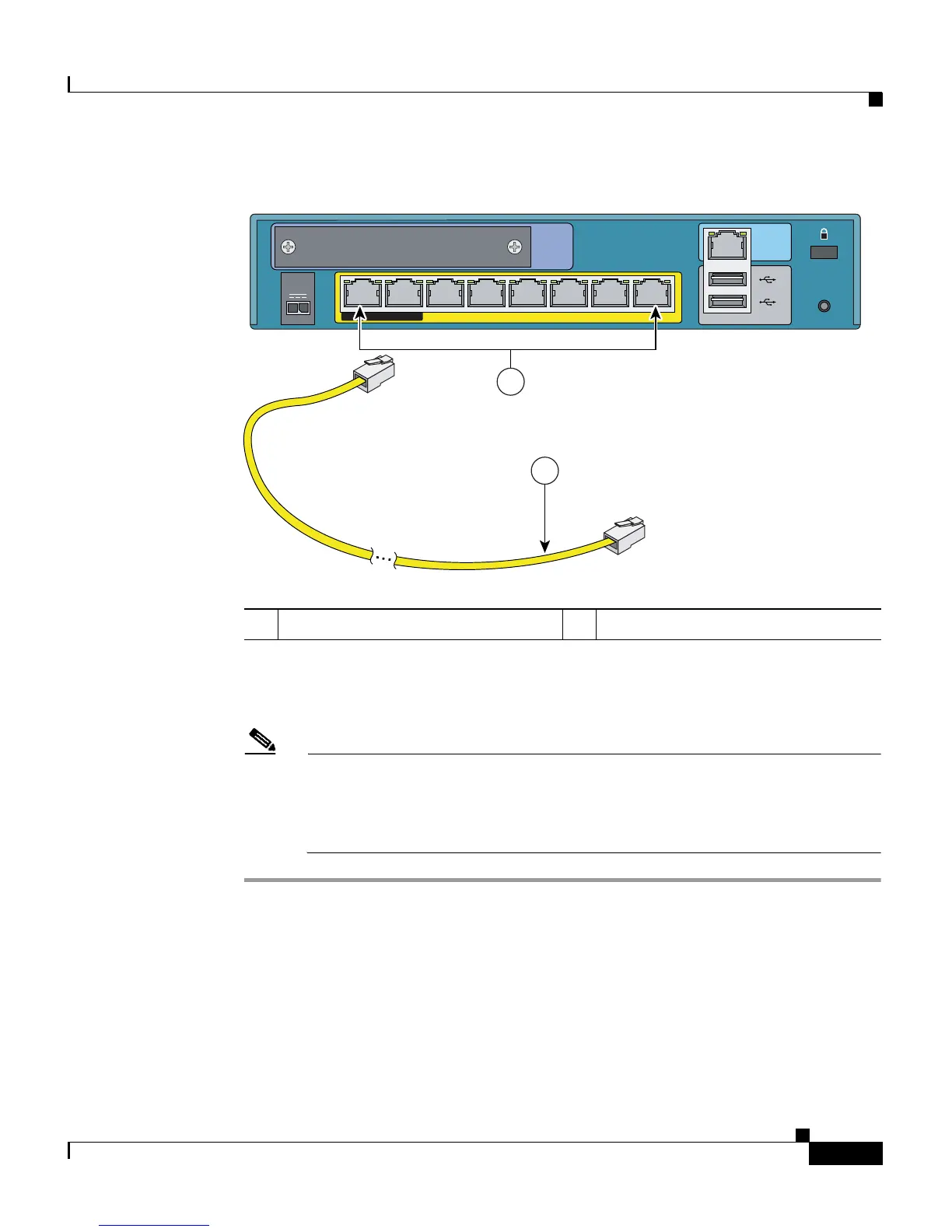

Figure 4-2 Connecting to an Ethernet Interface
Step 3
Connect the other end of the Ethernet cable to a device, such as a router, desktop
computer, or printer.
Note When connecting a computer to an inside port on the rear panel of the
adaptive security appliance, use a straight through cable because ports 0
through 5 are switched ports and ports 6 and 7 are PoE ports and both
require that you connect a straight through cable.
1 Ethernet switch ports 2 Ethernet cable
Security
Services
Card Slot
1
2
POWER
48
VDC
7
POWER over ETHERNET
6
5 4 3210
1
153761
2
Console
RESET
