Cisco 700 series Overview

Overview of Cisco 700 Series Routers 1-13
Router Panels

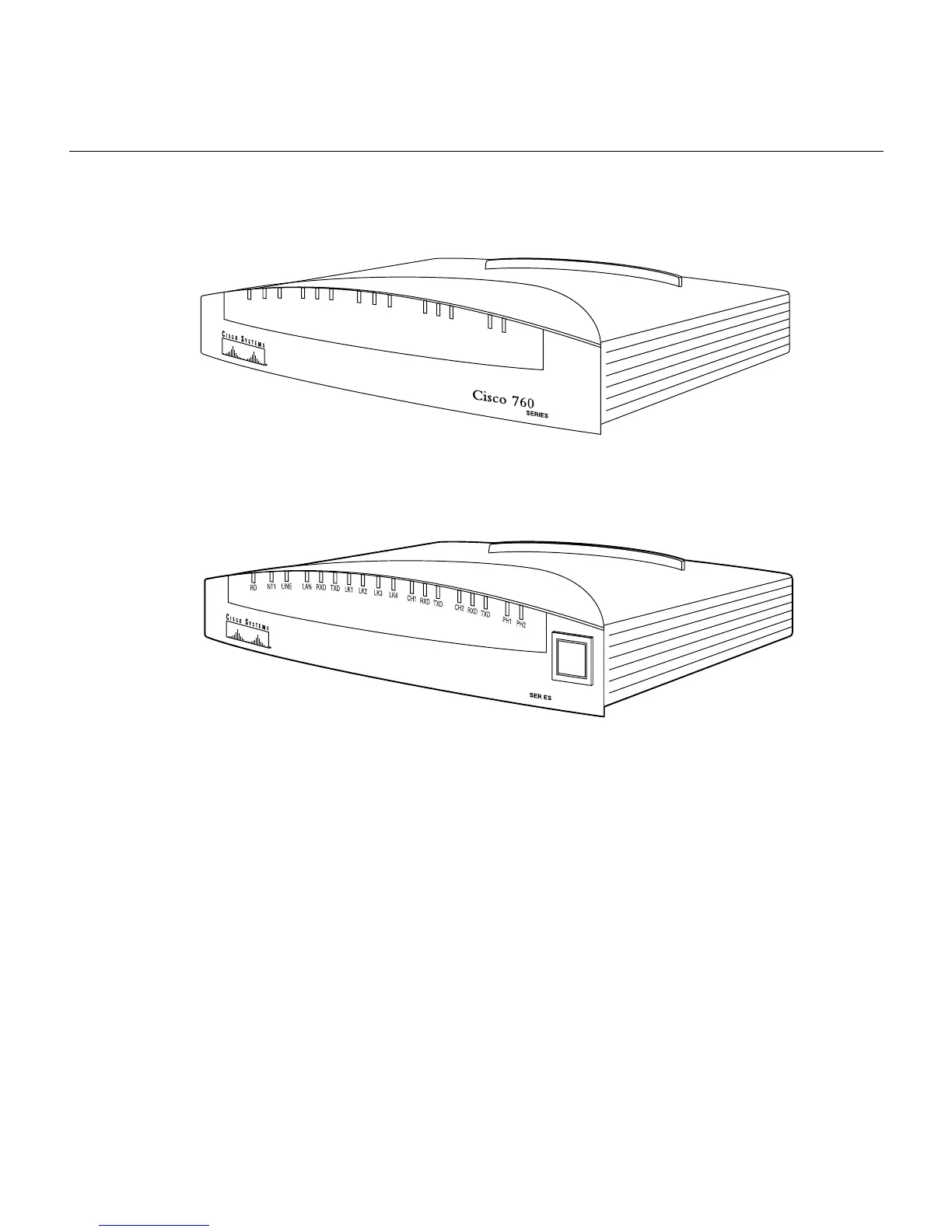

Figure 1-1 Front Panel, Cisco 760 Series Router (Cisco 766 Shown)
Figure 1-2 Front Panel, Cisco 770 Series Router (Cisco 776 Shown)
The ports for the Ethernet, ISDN S/T, ISDN U, and basic telephone service connections are
located on the rear panel of the Cisco 760 series router, as shown in Figure 1-3 through
Figure 1-6 and on the rear panel of the Cisco 770 series routers, as shown in Figure 1-7
through Figure 1-10.
H5787
RD
NT1
LINE
LAN
RXD
TXD
CH1
RXD
TXD
CH2
RXD
TXD
PH1
PH2
H7990
Cisco 700

Cisco 700 series Specifications

General

Wireless	No
Compression	No
WAN Ports	1
Weight	0.48 kg
Power Supply	External
Category	Network Router
