Table 2 DRAM SIMM Configurations

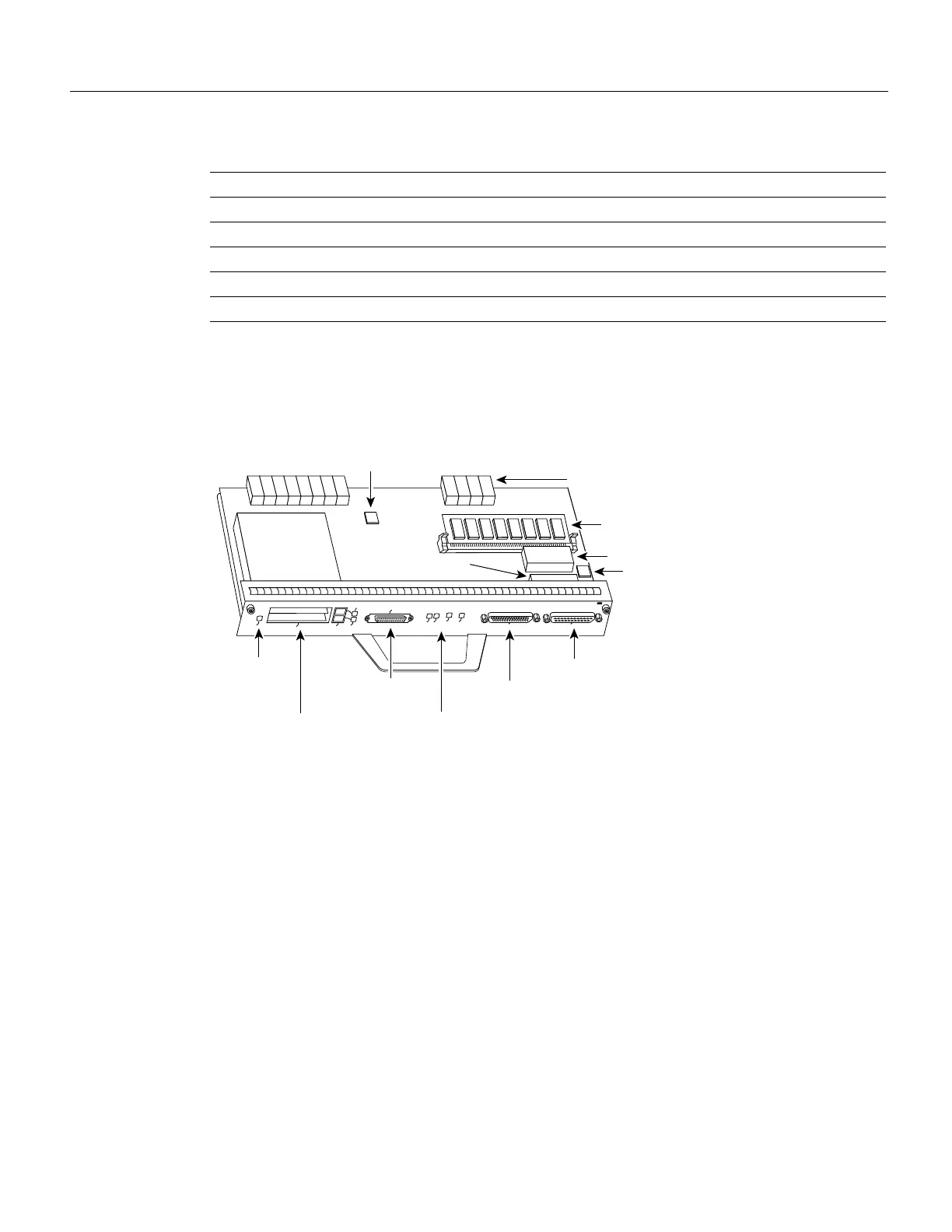

Figure 5 Input/Output Controller—With Optional Fast Ethernet Port
1. These products are also available as DRAM upgrades. For example, to upgrade a network processing engine from 16 MB to 32 MB of
DRAM, order product number MEM-NPE-16MB=.
Total DRAM DRAM Bank 0 Quantity DRAM Bank 1 Quantity Product Number
16 MB U18 and U25 2 8-MB SIMMs U4 and U12 – MEM-NPE-16MB
1
24 MB U18 and U25 2 8-MB SIMMs U4 and U12 2 4-MB SIMMs MEM-NPE-24MB
32 MB U18 and U25 2 16-MB SIMMs U4 and U12 – MEM-NPE-32MB
1
64 MB U18 and U25 2 32-MB SIMMS U4 and U12 – MEM-NPE-64MB
1
128 MB U18 and U25 2 32-MB SIMMs U4 and U12 2 32-MB SIMMs MEM-NPE-128MB
1
