Network Modules for Cisco 2600XM, 3600, and 3700 Series
63

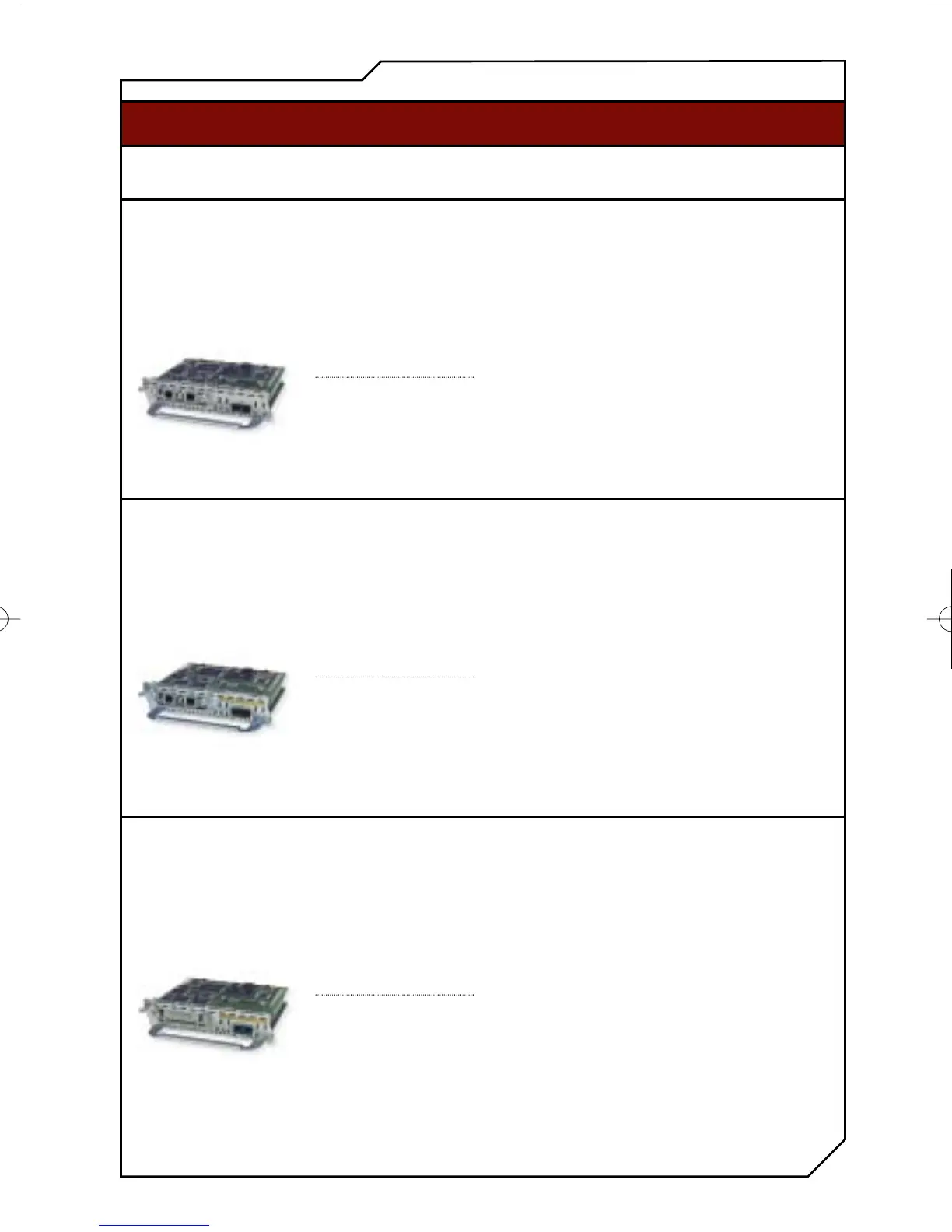

ATM OC3 with T1/E1 CES Network Modules
Product Description
Supported Platforms
and Minimum Cisco
IOS Versions Comments
NM-1A-OC3MM-1V
1-port OC-3/STM-1 CES
multimode ATM network
module
Provides an OC-3 interface
with UNI mode AAL1 and
AAL5 for CBR, UBR,
VBR-rt, VBR-nrt, UBR+ and
ABR classes of service and
one WIC expansion slot for
circuit emulation services.
This module will drive a
signal to a maximum
distance of two kilometers.
Modular Router Solutions
ATM Edge Connectivity
Voice and Fax Integration
3700 Series – Not Available
3660 Series – 12.1(2)T
3640 – 12.1(2)T
3620 – 12.1(2)T
2691 – Not Available
2600XM Series – Not
Available
2650 Series – Not Available
2620 Series – Not Available
2610 Series – Not Available
Requires a Cisco IOS
”Plus” feature set.
Maximum of one per
Cisco 3620 or Cisco 3640.
Requires an E1 or T1 VWIC
for PBX connectivity.
NM-1A-OC3SMI-1V
1-port OC-3/STM-1 CES
single-mode intermediate
reach ATM network
module
Provides an OC-3 interface
with UNI mode AAL1 and
AAL5 for CBR, UBR,
VBR-rt, VBR-nrt, UBR+ and
ABR classes of service and
one WIC expansion slot for
circuit emulation services.
This module will drive a
signal to a maximum
distance of 15 kilometers.
Modular Router Solutions
ATM Edge Connectivity
Voice and Fax Integration
3700 Series – Not Available
3660 Series – 12.1(2)T
3640 – 12.1(2)T
3620 – 12.1(2)T
2691 – Not Available
2600XM Series – Not
Available
2650 Series – Not Available
2620 Series – Not Available
2610 Series – Not Available
Requires a Cisco IOS
”Plus” feature set.
Maximum of one per
Cisco 3620 or Cisco 3640.
Requires an E1 or T1 VWIC
for PBX connectivity.
NM-1A-OC3SML-1V
1-port OC-3/STM-1 CES
single-mode long reach
ATM network module
Provides an OC-3 interface
with UNI mode AAL1 and
AAL5 for CBR, UBR,
VBR-rt, VBR-nrt, UBR+ and
ABR classes of service and
one WIC expansion slot for
circuit emulation services.
This module will drive a
signal to a maximum
distance of 45 kilometers.
Modular Router Solutions
ATM Edge Connectivity
Voice and Fax Integration
3700 Series – Not Available
3660 Series – 12.1(2)T
3640 – 12.1(2)T
3620 – 12.1(2)T
2691 – Not Available
2600XM Series – Not
Available
2650 Series – Not Available
2620 Series – Not Available
2610 Series – Not Available
Requires a Cisco IOS
”Plus” feature set.
Maximum of one per
Cisco 3620 or Cisco 3640.
Requires an E1 or T1 VWIC
for PBX connectivity.
