Cisco 800 Series Quick Reference Guide

Benefits & Advantages continued

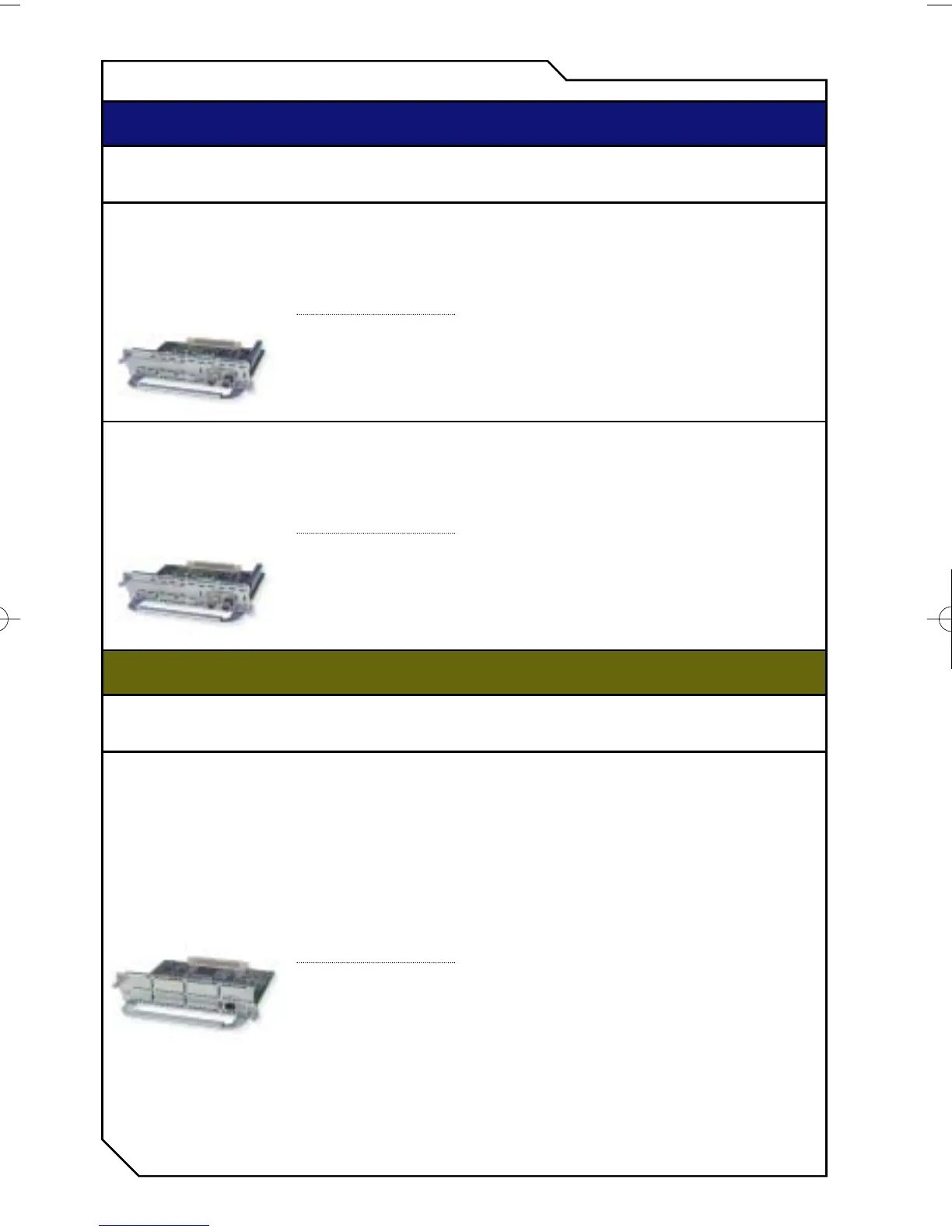

Network Modules for Cisco 2600XM, 3600, and 3700 Series
64
ATM T3/E3 Network Modules
Product Description
Supported Platforms
and Minimum Cisco
IOS Versions Comments
NM-1A-T3
1-port DS3 ATM network
module
Provides a single ATM
connection of 45 Mbps for
DS3 using 75 ohm BNC
Connectors. The network
module supports ATM
Forum-compliant AAL5.
Modular Router Solutions
ATM Edge Connectivity
3700 Series – 12.2(8)T
3660 Series – 12.1(2)T
3640 – 12.1(2)T
3620 – 12.1(2)T
2691 – 12.2(8)T
2600XM Series – 12.2(12)
mainline (future), 12.2(8)T1
2650 Series – 12.1(3)T
2620 Series – 12.1(2)T
2610 Series – 12.1(2)T
Requires a Cisco IOS
”Plus” feature set.
No reliance on other
network modules, WICs,
voice interface cards, or
advanced integration
modules.
ATM 25 Mbps Network Modules
Product Description
Supported Platforms
and Minimum Cisco
IOS Versions Comments
NM-1ATM-25
1-port ATM 25 network
module
Provides 25 Mbps ATM
connections to external
ADSL modems. The ATM
network module is
compatible with the ATM
Forum 25.6-Mbps physical
sublayer (PHY)
specification for
unshielded twisted-pair
(UTP), Category 3 (UTP-3),
or shielded twisted-pair
(STP) cable plants.
Modular Router Solutions
ATM Edge Connectivity
DSL Access
LAN-to-LAN Routing
3700 Series – Not Available
3660 Series – 12.0(7)XK
3640 – 11.3(3a)T
3620 – 11.3(3a)T
2691 – Not Available
2600XM Series – 12.1(14)
mainline, 12.2(12) mainline
(future), 12.2(8)T1
2650 Series – 12.1(3)T
2620 Series – 11.3(3a)T
2610 Series – 11.3(3a)T
Requires a Cisco IOS
”Plus” feature set.
No reliance on other
network modules, WICs,
voice interface cards, or
advanced integration
modules.
NM-1A-E3
1-port E3 ATM network
module
Provides a single ATM
connection of 34 Mbps for
E3 using 75 ohm BNC
Connectors. The network
module supports ATM
Forum-compliant AAL5.
Modular Router Solutions
ATM Edge Connectivity
3700 Series – 12.2(8)T
3660 Series – 12.1(2)T
3640 – 12.1(2)T
3620 – 12.1(2)T
2691 – 12.2(8)T
2600XM Series – 12.2(12)
mainline (future), 12.2(8)T1
2650 Series – 12.1(3)T
2620 Series – 12.1(2)T
2610 Series – 12.1(2)T
Requires a Cisco IOS
”Plus” feature set.
No reliance on other
network modules, WICs,
voice interface cards, or
advanced integration
modules.
AccessRouter_10.21.02 10/24/02 3:31 PM Page 64
