Interface Cards for Cisco 1700, 2600XM, 3600, and 3700 Series
78
ISDN BRI WICs
Product Description
Supported Platforms
and Minimum Cisco
IOS Versions Comments

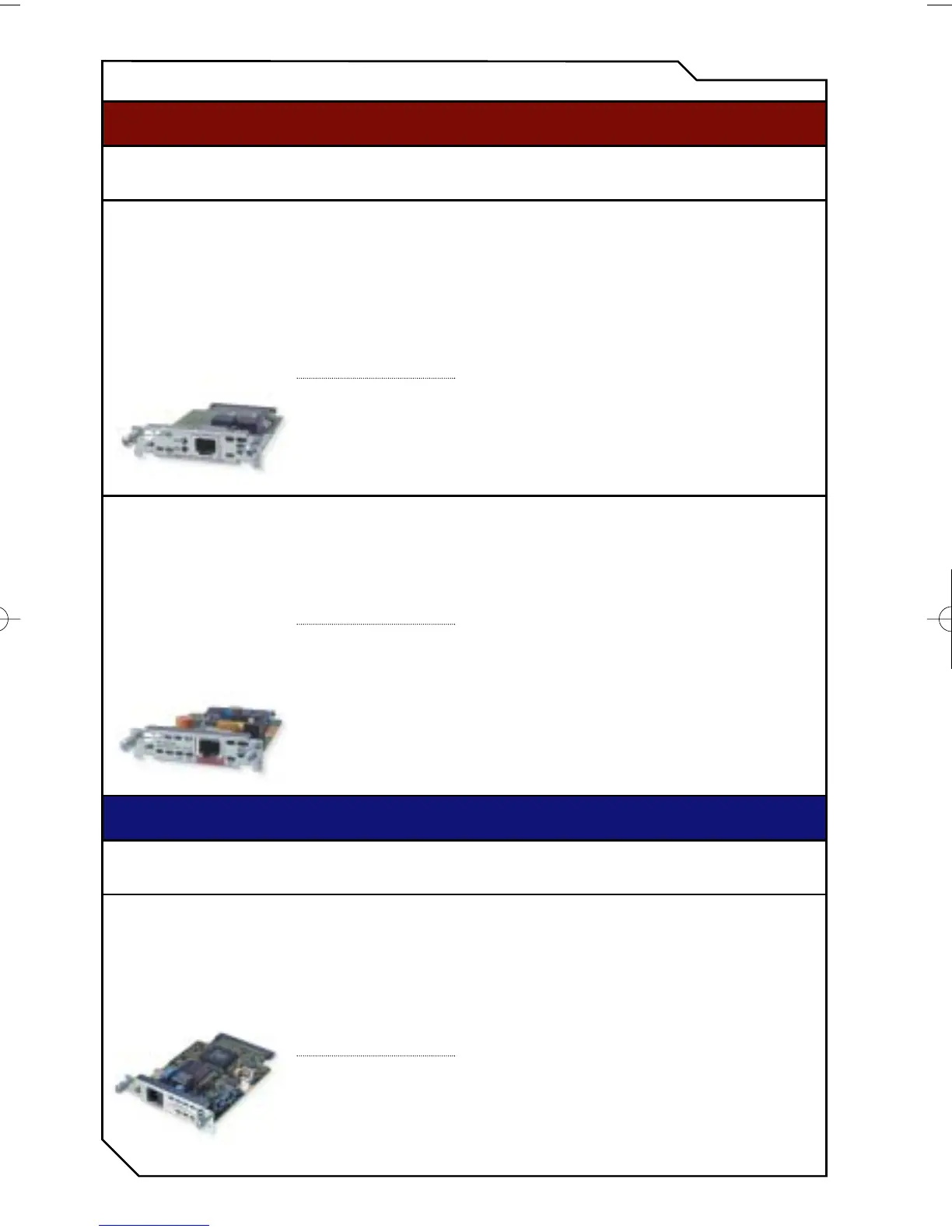

WIC-1B-S/T
1-port ISDN WIC
Provides a single ISDN BRI
connection via an RJ-45
connector. It requires an
external NT-1 device for
connection to the WAN.
This interface card inserts
into a Cisco mixed-media
network module or
directly into a Cisco WIC
expansion slot.
Modular Router Solutions
ISDN Concentration
Dial-up Remote Access
3700 Series – 12.2(8)T
3660 Series – 12.0(5)T
3640 – 11.2(4)XA
3620 – 11.2(4)XA
2691 – 12.2(8)T
2600XM Series – 12.1(14)
mainline, 12.2(12)
mainline (future),
12.2(8)T1
2650 Series – 12.1(3)T
2620 Series – 11.3(2)XA
2610 Series – 11.3(2)XA
1760 – 12.2(2)XK
[12.2(11)T–CQ3’02]
1751 – 12.2(4)T
1721 – 12.2(8)T
When used in a Cisco 3600
Series router, requires one
of the following mixed-
media network modules:
NM-2W, NM-1E2W, NM-
2E2W, NM-1E1R2W,
NM-1FE2W, NM-2FE2W or
NM-1FE1R2W
DSL WICs
Product Description
Supported Platforms
and Minimum Cisco
IOS Versions Comments
WIC-1ADSL
1-port asymmetric digital
subscriber line WIC
Provides a single ADSL
connection at uplink
speeds up to 1 Mbps and
downlink speeds up to 8
Mbps. This interface card
inserts into a Cisco mixed-
media network module or
directly into a Cisco WIC
expansion slot.
Modular Router Solutions
DSL Access
3700 Series – 12.2(8)T
3660 Series – 12.1.1(5)YB
3640 – 12.1.1(5)YB
3620 – 12.1.1(5)YB
2691 – 12.2(8)T
2600XM Series – 12.2(12)
mainline (future),
12.2(8)T1
2650 Series – 12.1.1(5)YB
2620 Series – 12.1.1(5)YB
2610 Series – 12.1.1(5)YB
1760 – 12.2(2)XK
[12.2(11)T–CQ3’02]
1751 – 12.2(4)T
1721 – 12.2(8)T
When used in a Cisco 3600
Series router, requires one
of the following mixed-
media network modules:
NM-2W, NM-1FE2W, NM-
2FE2W or NM-1FE1R2W.
When using the Cisco
1700 Series, requires a
Cisco IOS IP/DSL module.
When using the Cisco
2600, Cisco 3600, and
Cisco 3700 Series,
requires a Cisco IOS
”Plus” feature set.
WIC-1B-U
1-port ISDN with NT-1 WIC
Provides a single ISDN BRI
connection via an RJ-45
connector. This interface
card inserts into a Cisco
mixed-media network
module or directly into a
Cisco WIC expansion slot.
Modular Router Solutions
ISDN Concentration
Dial-up Remote Access
3700 Series – 12.2(8)T
3660 Series – 12.0(5)T
3640 – 11.2(4)XA
3620 – 11.2(4)XA
2691 – 12.2(8)T
2600XM Series – 12.1(14)
mainline, 12.2(12)
mainline (future),
12.2(8)T1
2650 Series – 12.1(3)T
2620 Series – 11.3(2)XA
2610 Series – 11.3(2)XA
1760 – 12.2(2)XK
[12.2(11)T–CQ3’02]
1751 – 12.2(4)T
1721 – 12.2(8)T
When used in a Cisco 3600
Series router, requires one
of the following mixed-
media network modules:
NM-2W, NM-1E2W, NM-
2E2W, NM-1E1R2W,
NM-1FE2W, NM-2FE2W or
NM-1FE1R2W
