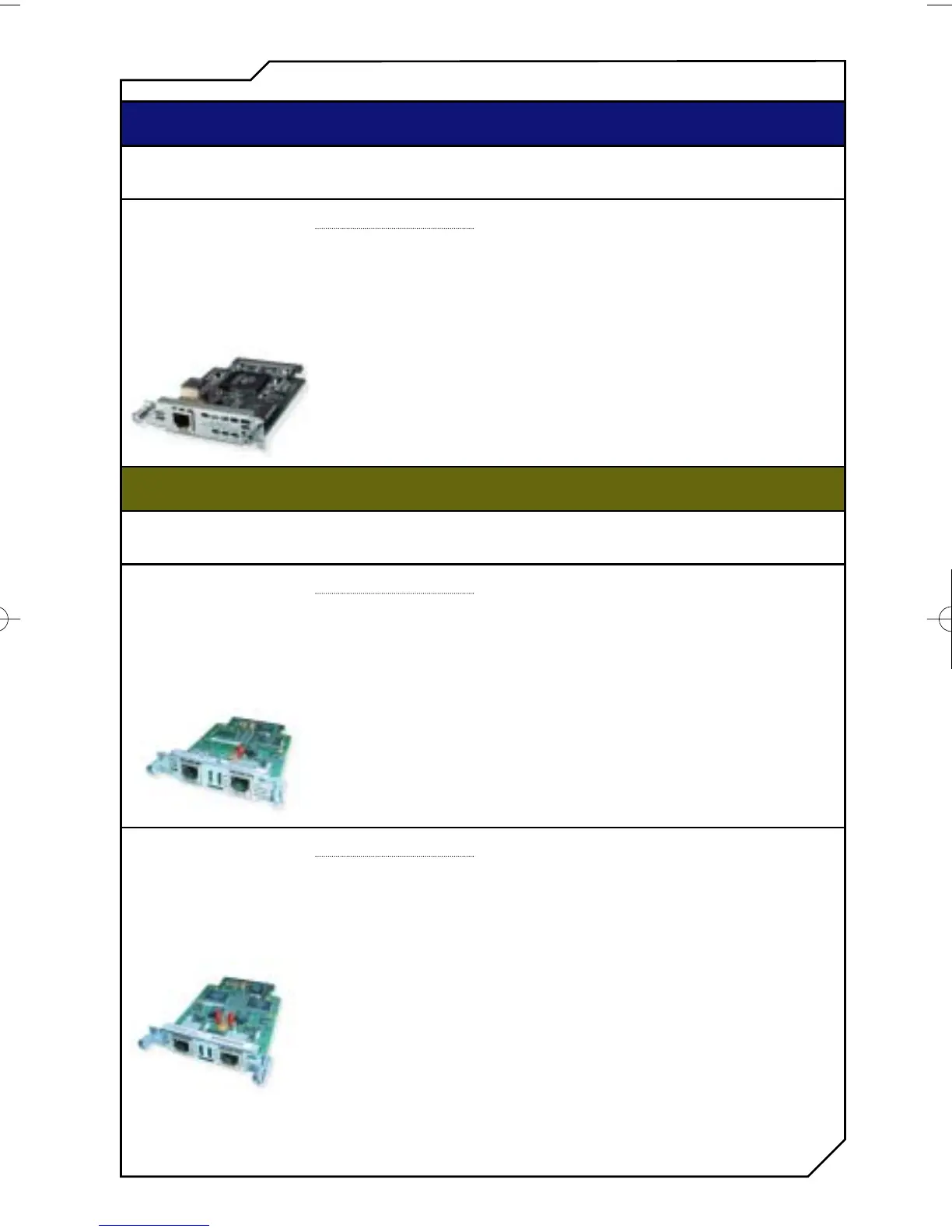

Interface Cards for Cisco 1700, 2600XM, 3600, and 3700 Series
79
DSL WICs
Product Description
Supported Platforms
and Minimum Cisco
IOS Versions Comments
WIC-1SHDSL
1-port symmetrical
high-speed DSL line
(G.SHDSL) WIC
Modular Router Solutions
DSL Access
3700 Series – Future
3660 Series – 12.2(4)XL2
3640 – 12.2(4)XL2
3620 – 12.2(4)XL2
2691 – Future
2600XM Series – 12.2(8)T1
2650 Series – 12.2(4)XL
2620 Series – 12.2(4)XL
2610 Series – 12.2(4)XL
1760 – 12.2(4)YB
(Sixth release of 12.2T)
1751 – 12.2(4)XL
(Fifth release of 12.2T)
1721 – 12.2(4)YA
(Sixth release of 12.2T)
When used in a Cisco 3600
Series router, requires one
of the following mixed-
media network modules:
NM-2W, NM-1FE2W, NM-
2FE2W or NM-1FE1R2W.
When using the Cisco
1700 Series, requires an
IOS IP/DSL module.
When using the Cisco
2600, Cisco 3600, and
Cisco 3700 Series, requires
a Cisco IOS”Plus” feature
set.
Analog Modem WICs
Product Description
Supported Platforms
and Minimum Cisco
IOS Versions Comments
WIC-1AM
1-port analog modem WIC
Modular Router Solutions
Dial-up Remote Access
3700 Series – 12.2(8)T
3660 Series – 12.2(2)XB
3640 – 12.2(2)XB
3620 – 12.2(2)XB
2691 – 12.2(8)T1
2600XM Series – 12.2(8)T1
2650 Series – 12.2(2)XB
2620 Series – 12.2(2)XB
2610 Series – 12.2(2)XB
1760 – 12.2(4)YB
(Sixth release of 12.2T)
1751 – 12.2(4)YB
(Sixth release of 12.2T)
1721 – 12.2(4)YB
(Sixth release of 12.2T)
When used in a Cisco 3600
Series router, requires one
of the following mixed-
media network modules:
NM-2W, NM-1FE2W, NM-
2FE2W or NM-1FE1R2W.
WIC-2AM
2-port analog modem WIC
Modular Router Solutions
Dial-up Remote Access
3700 Series – 12.2(8)T
3660 Series – 12.2(2)XB
3640 – 12.2(2)XB
3620 – 12.2(2)XB
2691 – 12.2(8)T1
2600XM Series – 12.2(8)T1
2650 Series – 12.2(2)XB
2620 Series – 12.2(2)XB
2610 Series – 12.2(2)XB
1760 – 12.2(4)YB
(Sixth release of 12.2T)
1751 – 12.2(4)YB
(Sixth release of 12.2T)
1721 – 12.2(4)YB
(Sixth release of 12.2T)
When used in a Cisco 3600
Series router, requires one
of the following mixed-
media network modules:
NM-2W, NM-1FE2W, NM-
2FE2W or NM-1FE1R2W.
