• Console cable for connecting to the console port
• Ratcheting torque screwdriver with a Phillips head that exerts up to 30-pound force per square inch (in-lb)
or 0.02-kilograms force per square millimeter (kgf/mm2) of pressure
• Crimping tool as specified by the ground lug manufacturer
• Wire-stripping tools for stripping both 6-AWG and 14-AWG wires
• Tape measure and level
Prepare Your Location
This section illustrates how the building that houses the chassis must be properly grounded to the earth ground.

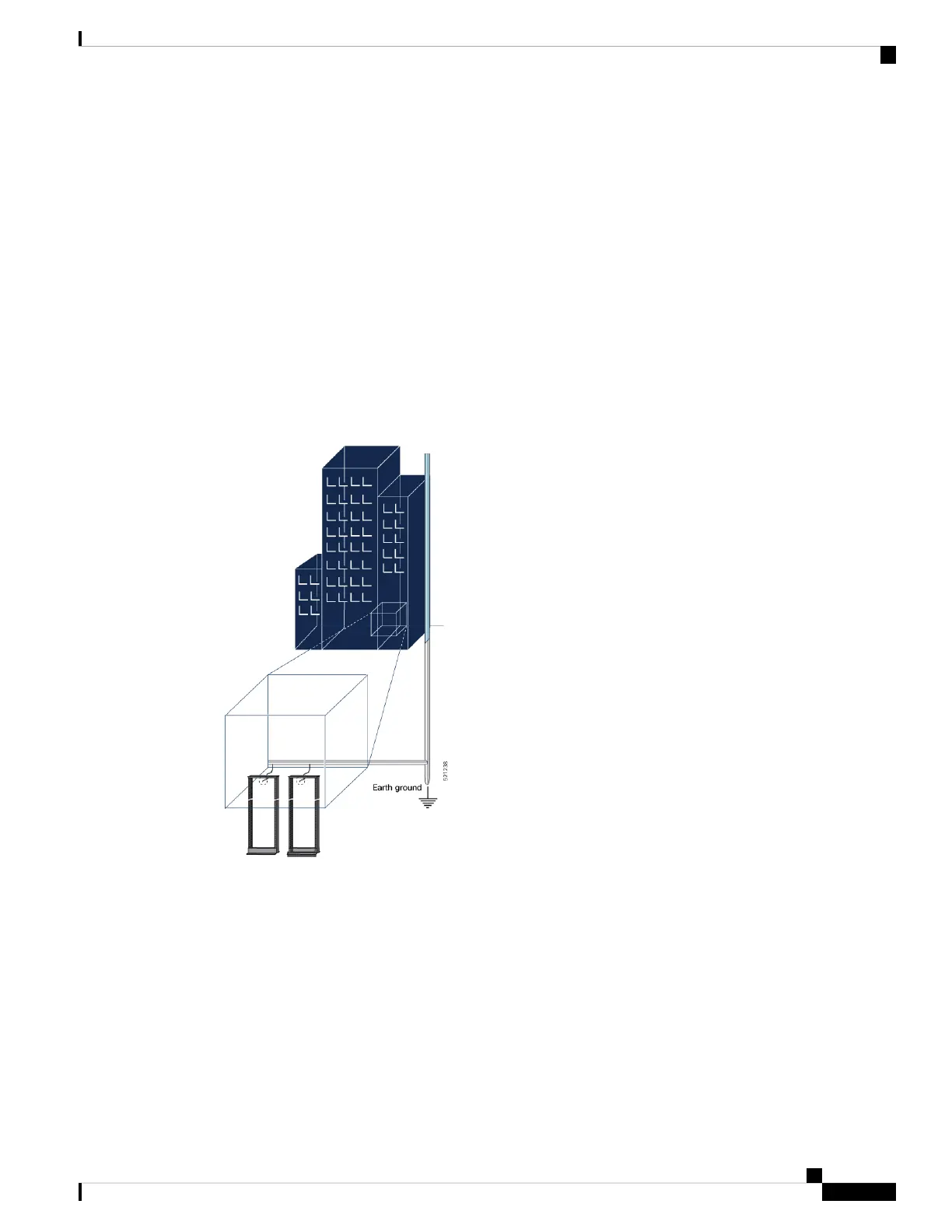

Figure 2: Building with Rack Room Connected to Earth Ground
Prepare Yourself
This section illustrates how to prepare yourself before removing the chassis from the sealed antistatic bag.
The figures show how to wear the ESD strap around the wrist and how to connect the other end of the strap
to the ground. ESD wrist straps are the primary means of controlling static charge on personnel.
Note: These images are for only representation purposes. The chassis' actual appearance and size would vary.
Prepare for Installation
7
Prepare for Installation
Prepare Your Location
