Cisco AS5350XM and Cisco AS5400XM Universal Gateways Card Installation Guide
78-17406-01
Chapter 5 Universal Port and Dial-Only Feature Cards
Online Insertion and Removal of the Universal Port or Dial-Only Feature Card

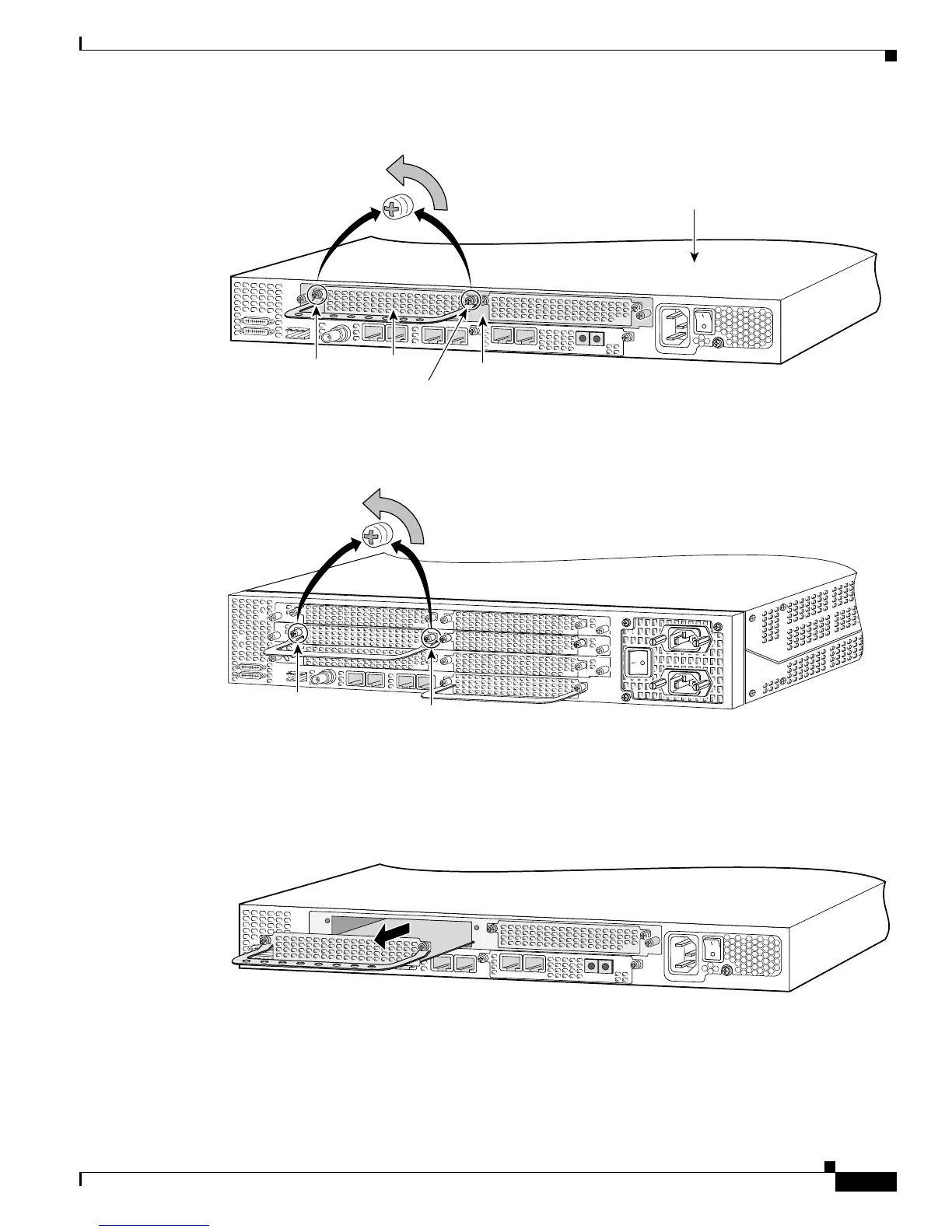

Figure 5-4 Loosening the Captive Screws on the Cisco AS5350XM Universal Gateway
Figure 5-5 Loosening the Captive Screws on the Cisco AS5400XM Universal Gateway
Step 8 Grasp the feature card handle with one hand. Pull the card toward you until the card slides free of the
chassis. Grasp the ventilated metal cover with your other hand to support and guide the feature card out
of the slot. (See Figure 5-6 and Figure 5-7.)
Figure 5-6 Removing the Feature Card from the Cisco AS5350XM Universal Gateway
36821
Carrier card
DFC
Chassis
Captive
screw
Captive
screw
37171
Captive
screw
Captive
screw
36819
