Cisco AS5350XM and Cisco AS5400XM Universal Gateways Card Installation Guide
78-17406-01
Chapter 5 Universal Port and Dial-Only Feature Cards
Online Insertion and Removal of the Universal Port or Dial-Only Feature Card

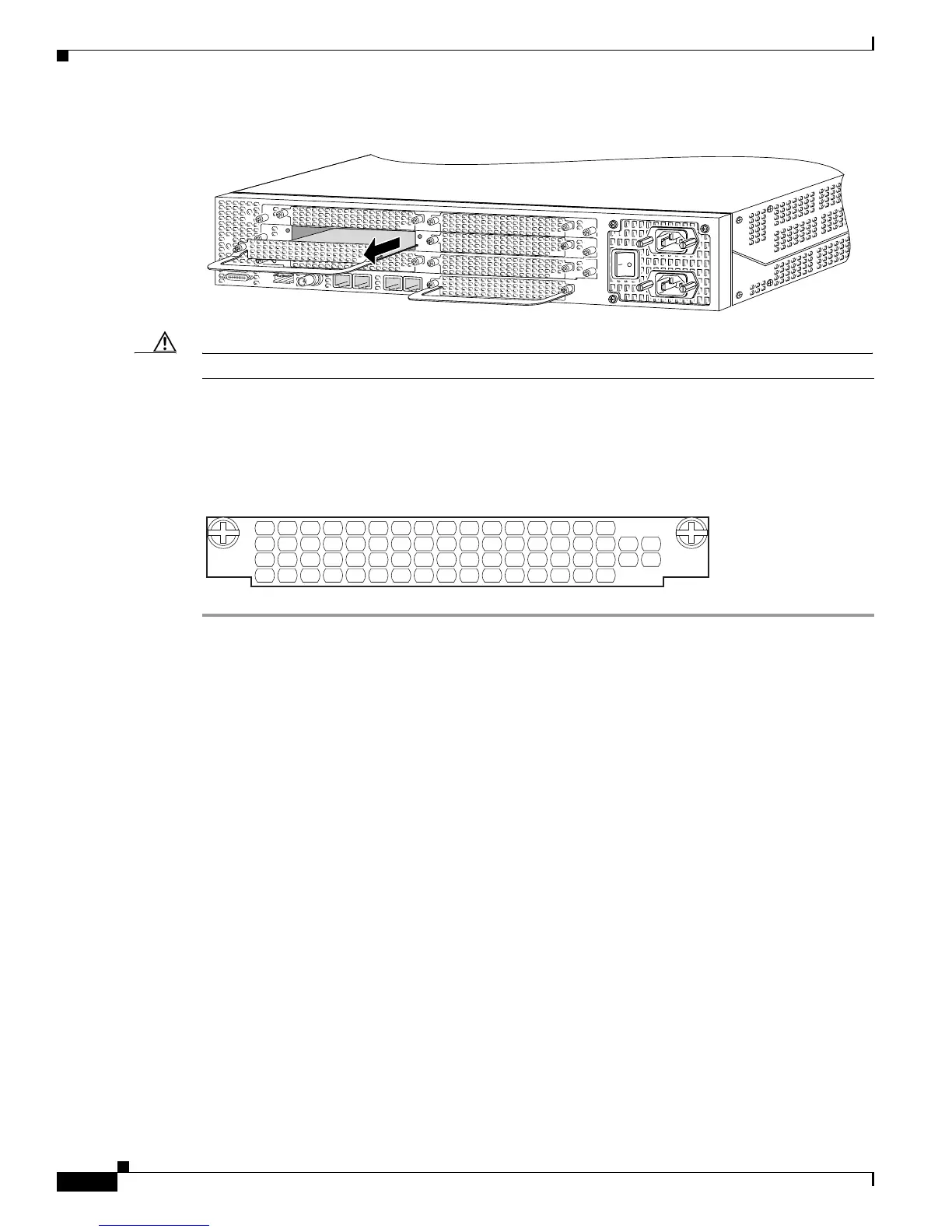

Figure 5-7 Removing the Feature Card from the Cisco AS5400XM Universal Gateway
Caution Avoid touching any pins or circuit board components when you remove or install a feature card.
Step 9 After you remove the feature card, set it aside on an ESD-preventive mat.
Step 10 If the feature card slot is to remain empty, install a blank cover over the open feature card slot to ensure
proper airflow inside the chassis. (See Figure 5-8.)
Figure 5-8 Blank Feature Card Cover
Online Insertion and Removal Example for the Universal Port or Dial-Only Feature Card
The following output is an example of the online insertion and removal (OIR) process for a universal
port feature card in slot 3 of the universal gateway:
Router# show chassis slot 3
Slot 3:
DFC type is NP108 DFC
OIR events:
Number of insertions = 0, Number of removals = 0
DFC State is DFC_S_OPERATIONAL
Router#
Router# show busyout 3
Slot 3 is not being busied out
Router#
Router# busyout 3
Busyout in progress for 3
Router#
Router# show busyout 3
Slot busyout is in progress
Slot 3:Pending (64 calls remaining)
Router#
Router# show chassis slot 3
Slot 3:
DFC type is NP108 DFC
