Cisco AS5350XM and Cisco AS5400XM Universal Gateways Card Installation Guide
78-17406-01
Appendix A Cabling Specifications
8-Port T1 or E1 Feature Card Cable and Port Pinouts
• Align the molded RJ-45 ends of the cables with an opening between the adjacent molded RJ-45 ends
of the cable. Route the cables through the openings. (See Figure A-9.)

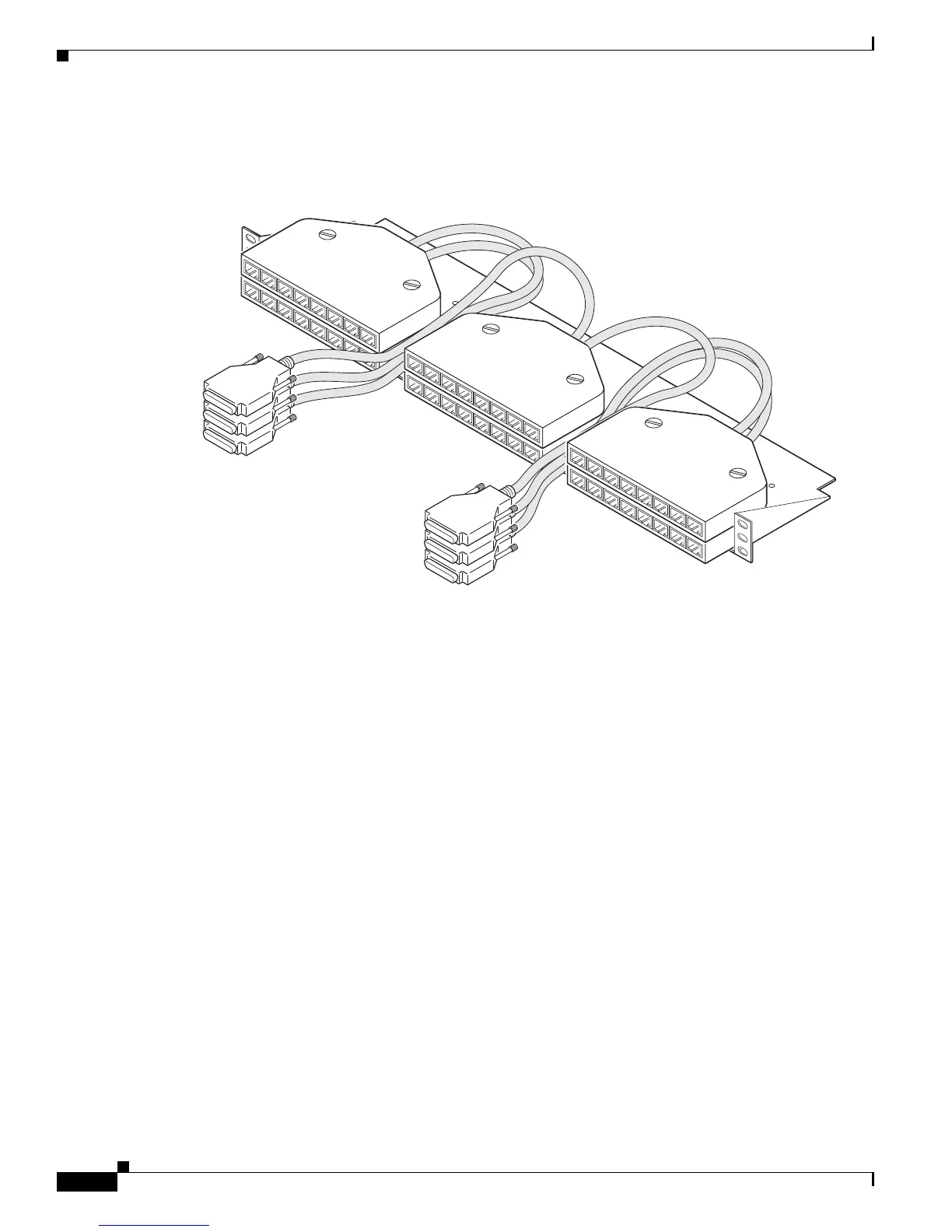

Figure A-9 Routing Cables with Molded RJ-45 Ends of Cables Flush with Bracket Edges
35060
