Cisco AS5350XM and Cisco AS5400XM Universal Gateways Card Installation Guide
78-17406-01
Appendix A Cabling Specifications
8-Port T1 or E1 Feature Card Cable and Port Pinouts
Step 3 Secure the molded RJ-45 ends of the cables to the bracket with the provided flathead screws. (See
Figure A-10.)
Note To secure a single molded RJ-45 end of the cable, use the short flathead screws. To secure two
(stacked) molded RJ-45 ends of the cables, use the long flathead screws.

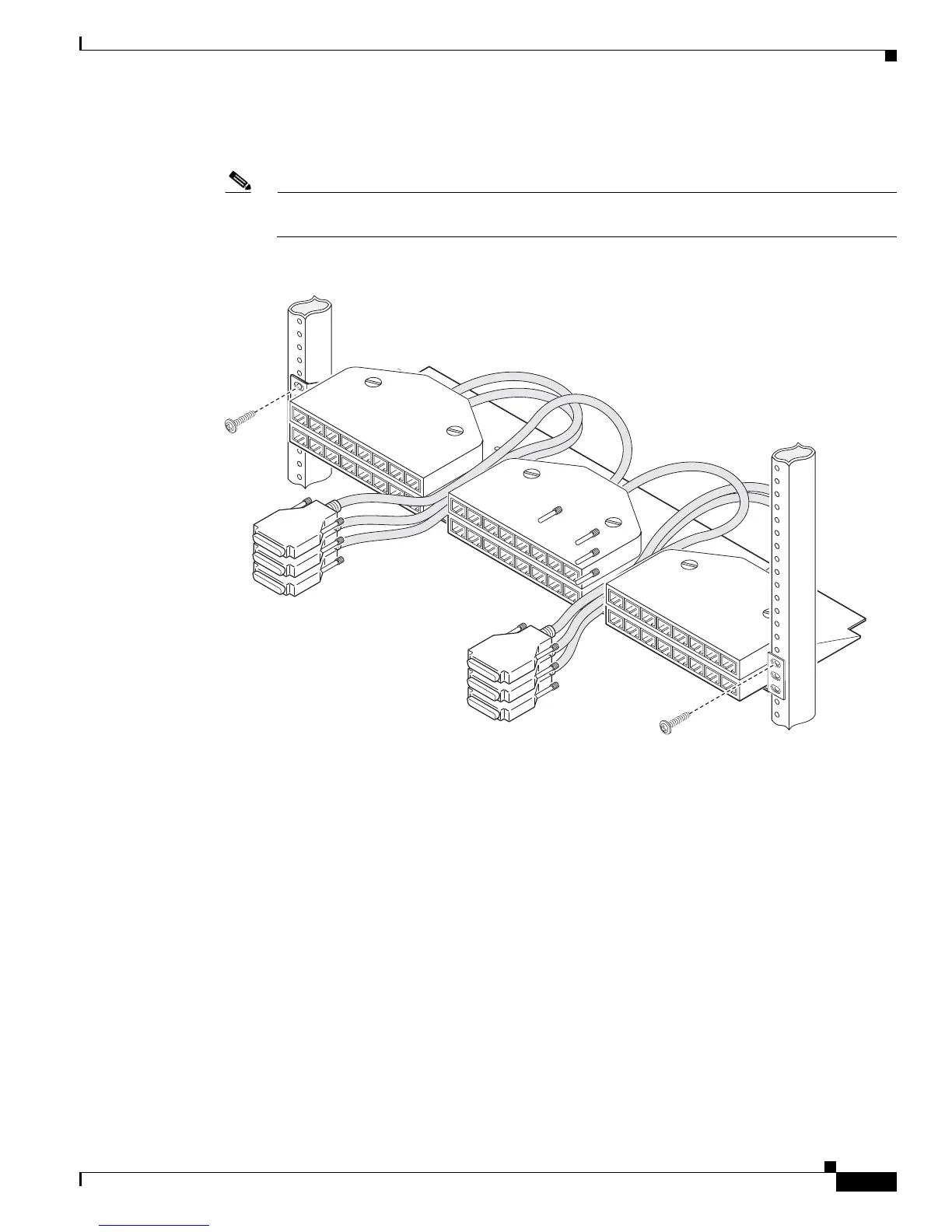

Figure A-10 Securing the Cable Bracket to the Rack
Step 4
Use the end screws on the bracket to secure the cable bracket to the rack. (See Figure A-10.)
35061
