Lock slot
The slot accepts a standard Kensington T-bar
locking mechanism for securing the ASA.
8Reset button
A small recessed button that if pressed for longer
than three seconds resets the ASA to its default
“as-shipped” state following the next reboot.
Configuration variables are reset to factory
default. However, the flash is not erased and no
files are removed.
You can use the service
sw-reset-button command to disable
the reset button. The default is enabled.
Note
Pressing the reset button on the ASA
5506W-X does not affect the AP
configuration, but it causes any
unsaved AP configuration to be lost,
because the system has rebooted. After
the system reboots, if you want a
default AP configuration, use the
hw-module module wlan recover
configuration command to recover
the AP configuration.
Note
7
The following figure shows the rear panel of the 5506H-X.

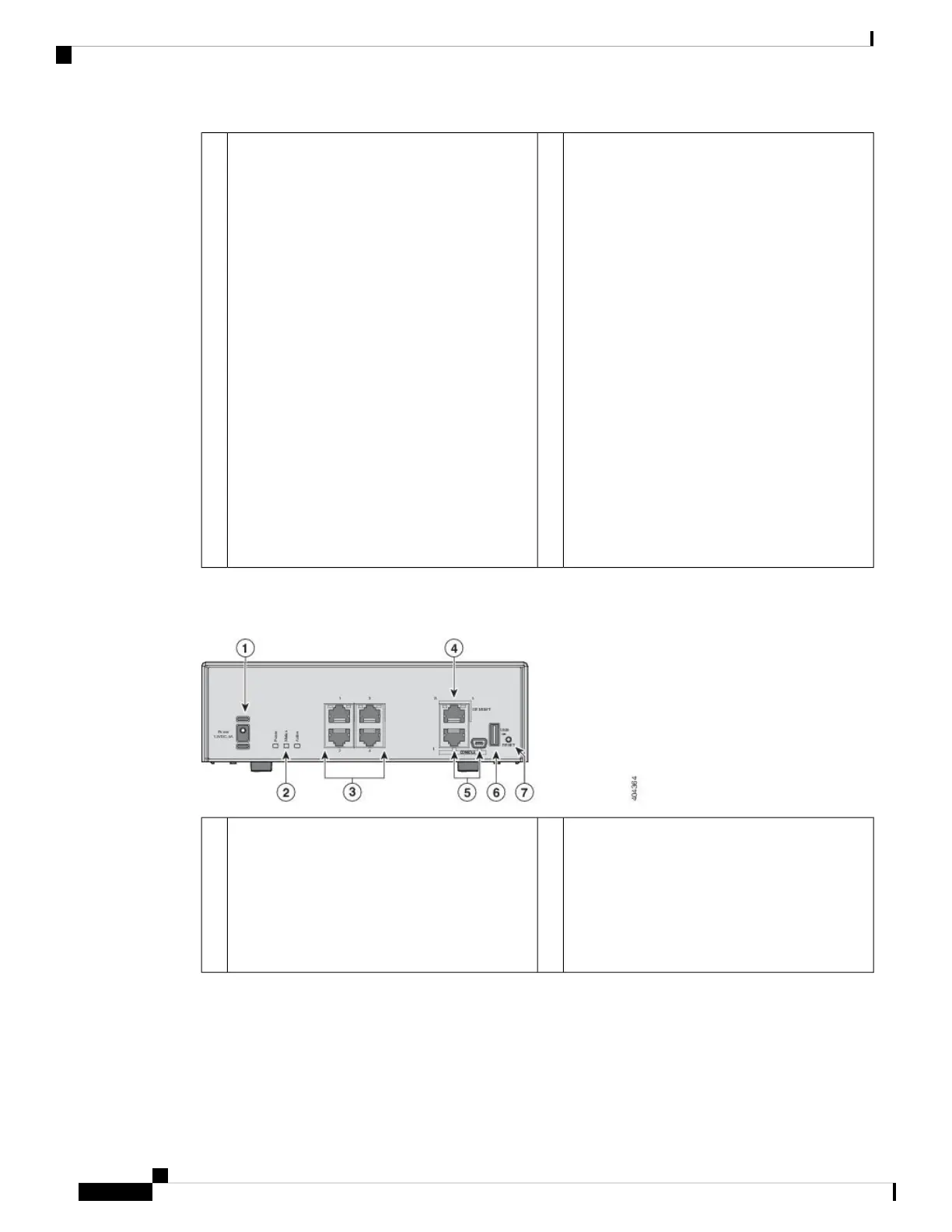

Figure 6: ASA 5506H-X Rear Panel
Status LEDs
The locations and meanings of the status LEDs
are described in LEDs, on page 7.
2Power cord socket.
The chassis power-supply socket. See Power
Supply Modules, on page 11 for more
information about the chassis power supply.
The ASA is powered on when you
plug in the AC power supply.
Note
1
Cisco ASA 5506-X, ASA 5506W-X, and ASA 5506H-X Hardware Installation Guide
Online Only6
Overview
Rear Panel
