Cisco ASA 5506W-X Installation Guide

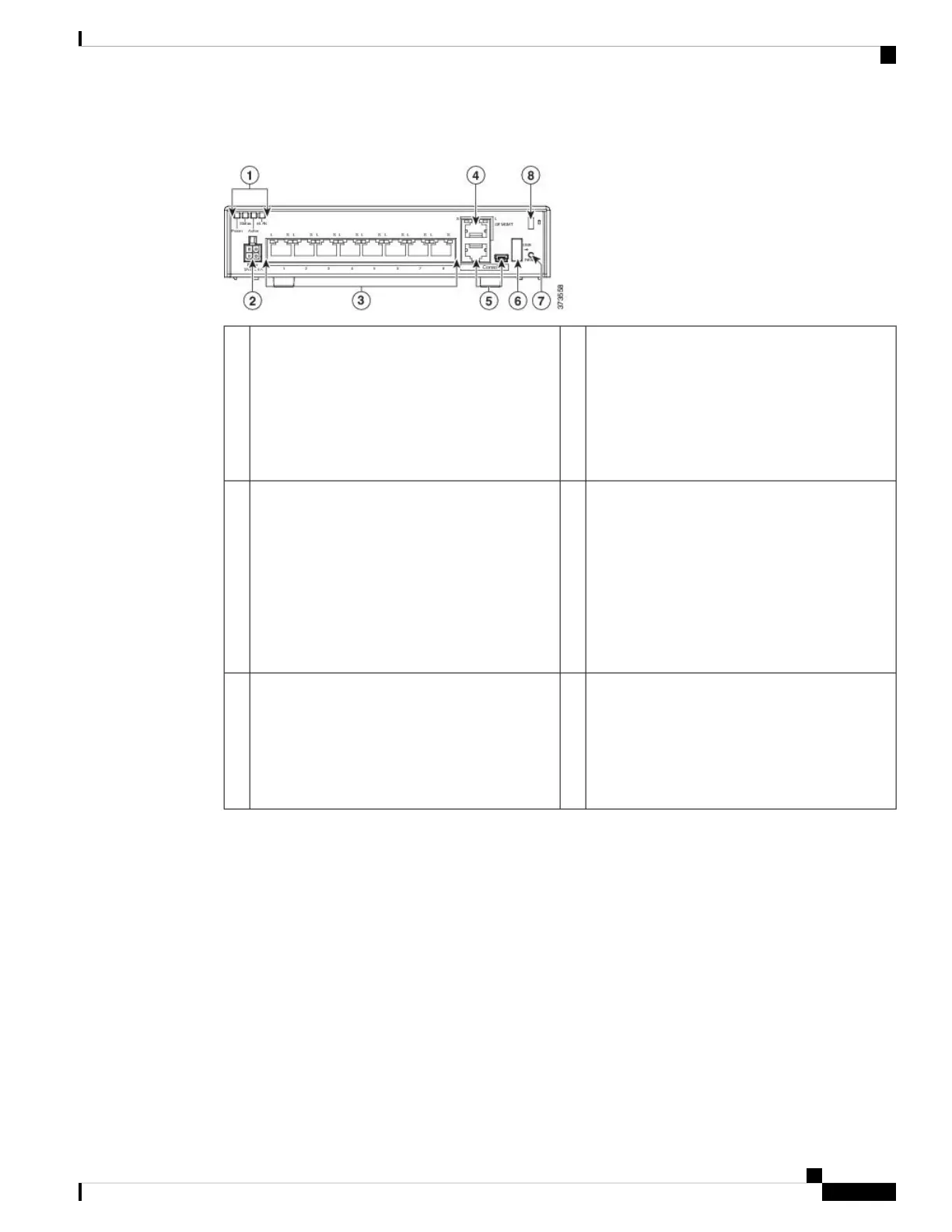

Figure 5: ASA 55-6-X and 5506W-X Rear Panel
Power cord socket
The chassis power-supply socket. See Power
Supply Modules, on page 11 for more
information about the chassis power supply.
The ASA is powered on when you
plug in the AC power supply.
Note
2Status LEDs
The locations and meanings of the status LEDs
are described in LEDs, on page 7.
1
Management port
A Gigabit Ethernet interface restricted to network
management access only. Connect with an RJ-45
cable.
4Network data ports
Eight Gigabit Ethernet RJ-45 (8P8C) network I/O
interfaces. The ports are numbered (from left to
right) 1, 2, 3, 4, 5, 6, 7, 8. Each port includes a
pair of LEDs, one each for connection status and
link status. The ports are named and numbered
Gigabit Ethernet 1/1 through Gigabit Ethernet
1/8. See Network Ports, on page 9 for additional
information.
3
USB port
A standard USB Type A port is provided that
allows the attachment of an external device, such
as mass storage. See Internal and External Flash
Storage, on page 11 for additional information.
6Console ports
Two serial ports, a mini USB Type B, and a
standard RJ-45 (8P8C), are provided for
management access via an external system. See
Console Ports, on page 10 for additional
information.
5
Cisco ASA 5506-X, ASA 5506W-X, and ASA 5506H-X Hardware Installation Guide
5Online Only
Overview
Rear Panel
