Cisco ASA 5512-X Hardware Installation Guide

About the ASA 5500-X
ASA Chassis Panels
Cisco ASA 5512-X, ASA 5515-X, ASA 5525-X, ASA 5545-X, and ASA 5555-X Hardware Installation Guide
13
 Rear Panel Ports, page 17
Front Panel LEDs

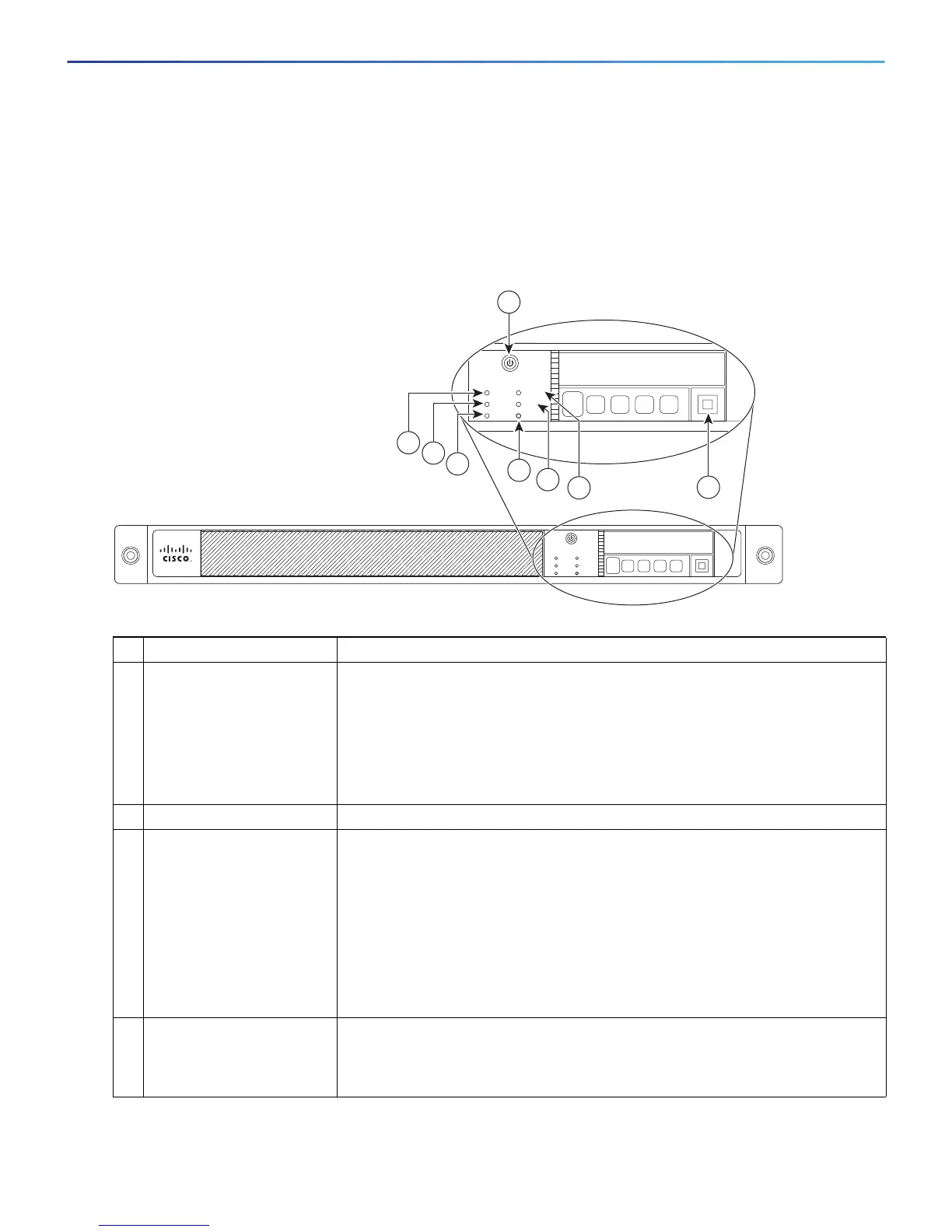

Figure 1 shows the front panel LEDs for the ASA 5512-X, ASA 5515-X, and ASA 5525-X models.
Figure 1 Front Panel LEDs for the Cisco ASA 5512-X, ASA 5515-X, and ASA 5525-X
LED Description
1 Power button A soft switch that turns the system on and off. Once pressed, the button stays
in the “on” position:
 On—The power symbol on the button is lit.
 Off—The power symbol on the button is dark.
For information about the power state, see the Power Supply Considerations,
page 31.
2 Hard-disk release button Releases the hard disk from the device.
3 Alarm System operating status:
 Off—Normal operating system function.
 Solid amber—Critical Alarm indicating one or more of the following:
— a major failure of a hardware or software component.
— an over-temperature condition.
— power voltage is outside of the tolerance range.
Note: May appear red on some devices.
4 VPN VPN tunnel status:
 Solid green—VPN tunnel is established.
 Off—No VPN tunnel established.
Cisco ASA 5515
Adapative Security Appliance
BOOT
ACTIVE
PS
ALARM
VPN
HD
282360
Cisco ASA 5515
Adapative Security Appliance
BOOT
ACTIVE
PS
ALARM
VPN
HD
1
2
5
8
7
6
3
4

Cisco ASA 5512-X Specifications

General

Firewall Throughput	1.2 Gbps
VPN Throughput	200 Mbps
Maximum VPN Peers	250
Integrated IPS	Yes
IPS Throughput	250 Mbps
RAM	4 GB
Power Supply	AC, 100-240V
Security Contexts	2 (Standard), 50 (with Security Contexts license)
Interfaces	6 x Gigabit Ethernet
Dimensions (H x W x D)	1.75 x 17.5 x 14.5 inches
Weight	16 lbs
