Cisco ASA 5512-X Hardware Installation Guide

Maintenance and Upgrade Procedures for the ASA 5500-X
Install an Expansion I/O Card
Cisco ASA 5512-X, ASA 5515-X, ASA 5525-X, ASA 5545-X, and ASA 5555-X Hardware Installation Guide
52
Figure 4 Removing the Connector Clamp

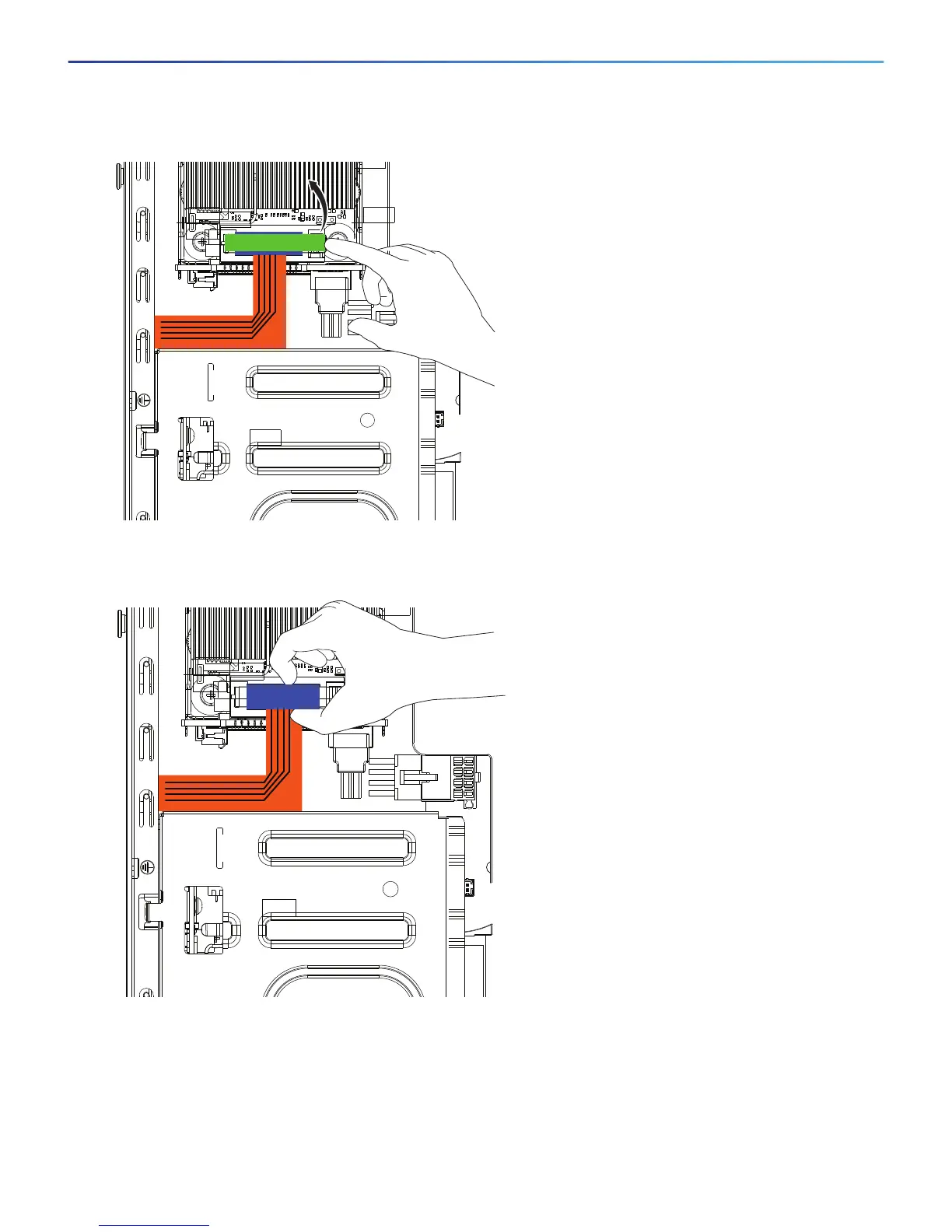

7. Disconnect the blue Regex cable connector from the motherboard by lifting carefully but firmly. (See Figure 5.)
Figure 5 Removing the Regex Cable Connector
8. Lift the I/O card out of the chassis with both hands by placing an index finger into each of the card cover vents
and placing your thumbs on the edge of the card cover. (See Figure 6 on page -53.) Use firm upward pressure
and a gentle rocking motion, as the card is firmly seated.
Caution: Keep hands clear of all electronics underneath the card cover.
331359
-A-
-A-
-B-
-B-
-A--A-
-B-
-B-
-A-
-A-
-B-
-B-
-A--A-
-B-
-B-
-C-
-C-
-B-
-B-
-C-
-C-
-B-
-B-
-B-
-B-
PUSH AND LIFT TAB
331355
-A--A-
-B--B-
-A--A-
-B--B-
-A--A-
-B--B-
-A--A-
-B--B-
-C--C-
-B--B-
-C--C-
-B--B-
-B--B-

Cisco ASA 5512-X Specifications

General

Firewall Throughput	1.2 Gbps
VPN Throughput	200 Mbps
Maximum VPN Peers	250
Integrated IPS	Yes
IPS Throughput	250 Mbps
RAM	4 GB
Power Supply	AC, 100-240V
Security Contexts	2 (Standard), 50 (with Security Contexts license)
Interfaces	6 x Gigabit Ethernet
Dimensions (H x W x D)	1.75 x 17.5 x 14.5 inches
Weight	16 lbs
