Chapter 4 Maintenance and Upgrade Procedures
Installing and Removing a Slide-mounted Chassis
Removing the Chassis from the Rack
To remove the chassis from the rack, follow these steps:
Step 1 Remove the screws from the front brackets of the rail post (Figure 4-32).

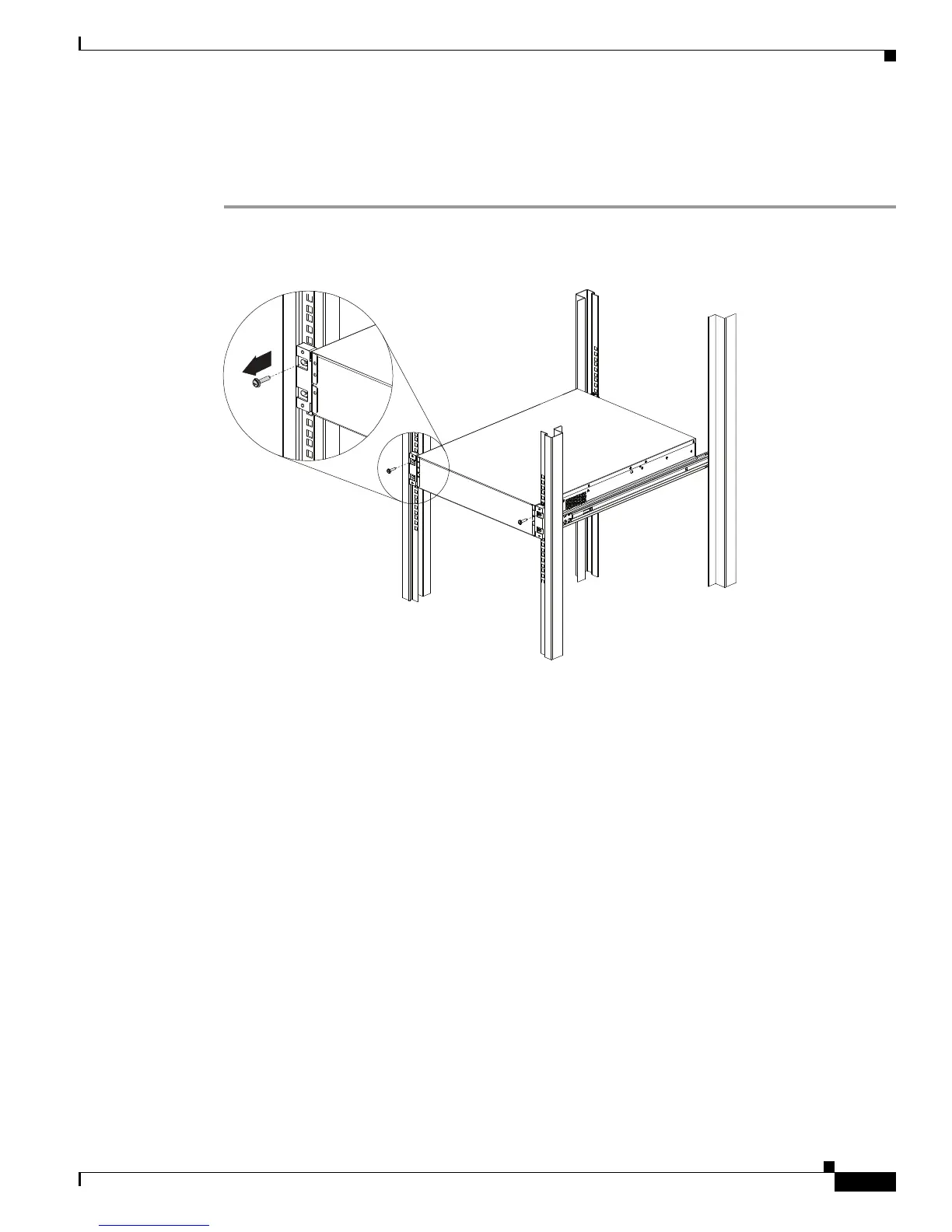

Figure 4-32 Removing the Screws from the Outer Rail
Step 2
Pull the chassis out to the locked position.
330599
