Chapter 4 Maintenance and Upgrade Procedures
Installing and Removing a Slide-mounted Chassis
Step 3 Press down the release hook to remove the chassis from the rack (Figure 4-33).

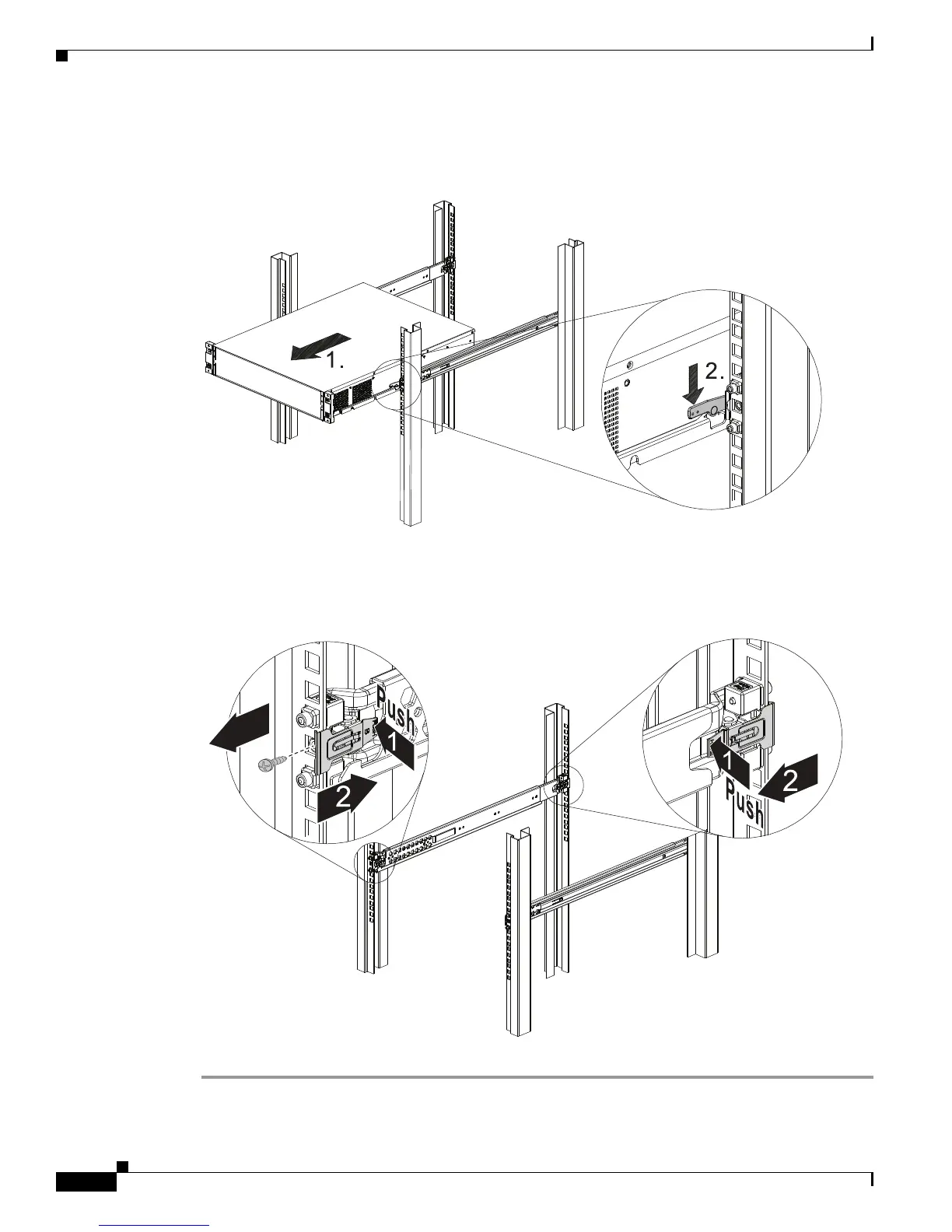

Figure 4-33 Pressing Down the Release Hook
Step 4
Remove the two screws from the front and rear of the rack that are securing the slide rail, and release the
latch and pull out the rails (Figure 4-34).
Figure 4-34 Releasing the Latch to Pull Out the Rails
