Chapter 4 Maintenance and Upgrade Procedures
Installing and Removing Cisco ASA 5585-X Network I/O Modules
Figure 4-4 shows the port numbering for the 20-port network I/O module. For slot 0, the interface is
named GigabitEthernet 0/0 through GigabitEthernet 0/19.

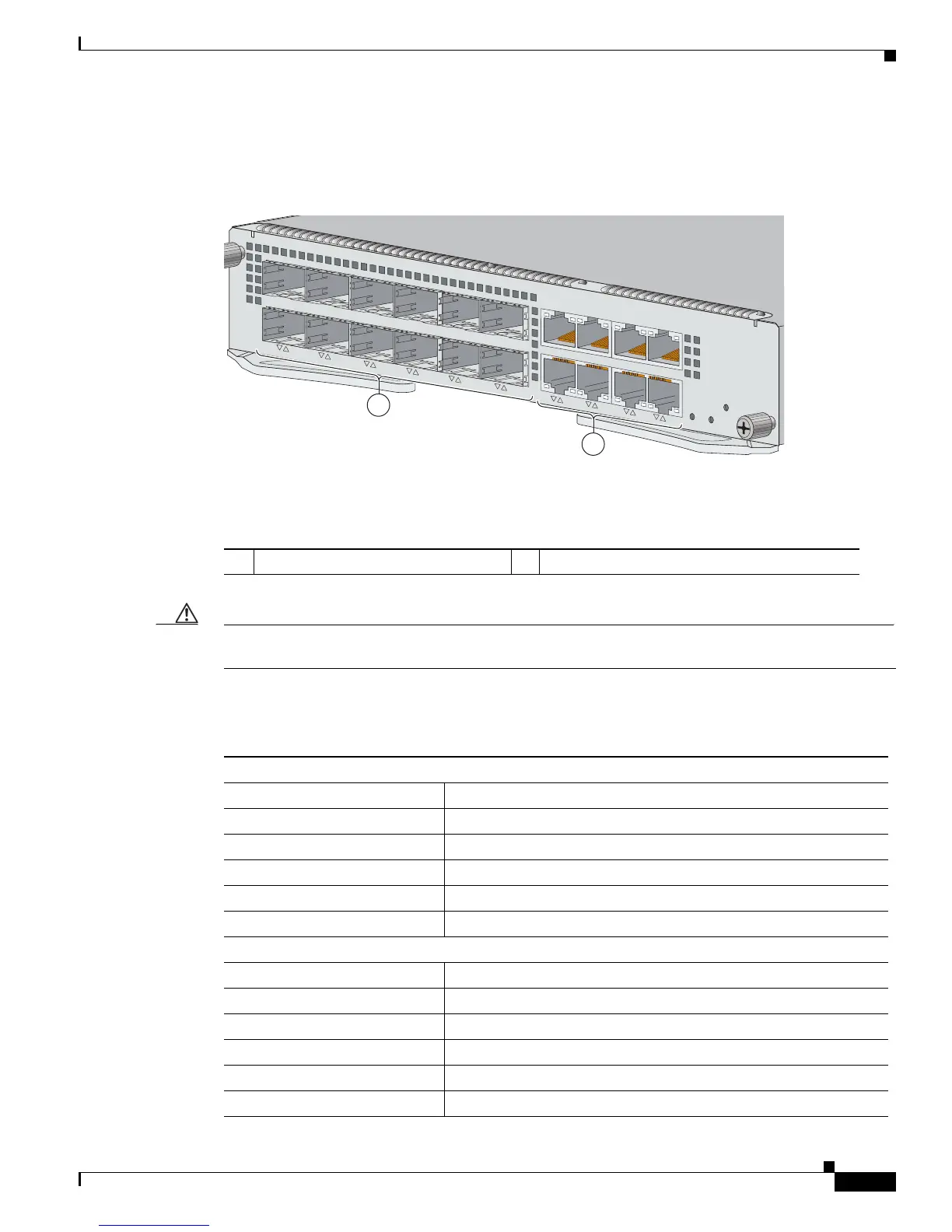

Figure 4-4 20-Port Network I/O Module Port Numbering
Caution Be sure the ASA software version installed on your ASA 5585-X supports the network I/O modules and
the accompanying SFP/SFP+ transceivers. Refer to Cisco ASA Compatibility for more information.
Table 4-1 lists the SFP/SFP+ transceiver modules supported by the ASA 5585-X.
1 GigabitEthernet 00 through 07 2 GigabitEthernet 08 through 19
8
9
10
11
12
13
14
15
16
17
18
19
6
7
4
5
2
3
0
1
Cisco ASA 5585-X 20-Port GE Module
PWR
STATUS
EJECT
1
2
332446
Table 4-1 SFP/SFP+ Transceiver Modules
1G SFP Module
GLC-SX-MM 1000 Base-SX SFP module
GLC-SX-MMD 1000BASE-SX short wavelength, with DOM
GLC-LH-SM 1000 Base-LX/LH SFP module
GLC-LH-SMD 1000BASE-LX/LH long-wavelength, with DOM
GLC-EX-SMD 1000 Base-EX SFP module, SMF, 1310nm, DOM
GLC-T 1000BASE-T standard
10G SFP+ Module
SFP-10G-ER 10G ER SFP+ module
SFP-10G-SR 10G SR SFP+ module
SFP-10G-LRM 10G LRM SFP+ module
SFP-10G-LR 10G LR SFP+ module
SFP-H10GB-ACU7M 10GBASE-CU SFP+ Cable 7 Meter, active
SFP-H10GB-ACU10M 10GBASE-CU SFP+ Cable 10 Meter, active
