4. Connect Interface Cables and Verify Connectivity
3
All management traffic to and from the non-ASA SSP must enter and exit the Management 1/0 or 1/1 interface.
Because this interface is not an ASA data interface, traffic cannot pass through the ASA over the backplane; you
need to physically cable the management interface to an ASA interface. Non-ASA SSPs usually need Internet
access for updates. See the following typical cabling setup to allow SSP access to the Internet through the ASA
management interface. Other options are possible, depending on how you want to connect your network; for
example, you can make the Management 1/0 interface outside facing; or you can route between it and a different
ASA interface if you have an inside router; and so on.
4. Connect Interface Cables and Verify Connectivity

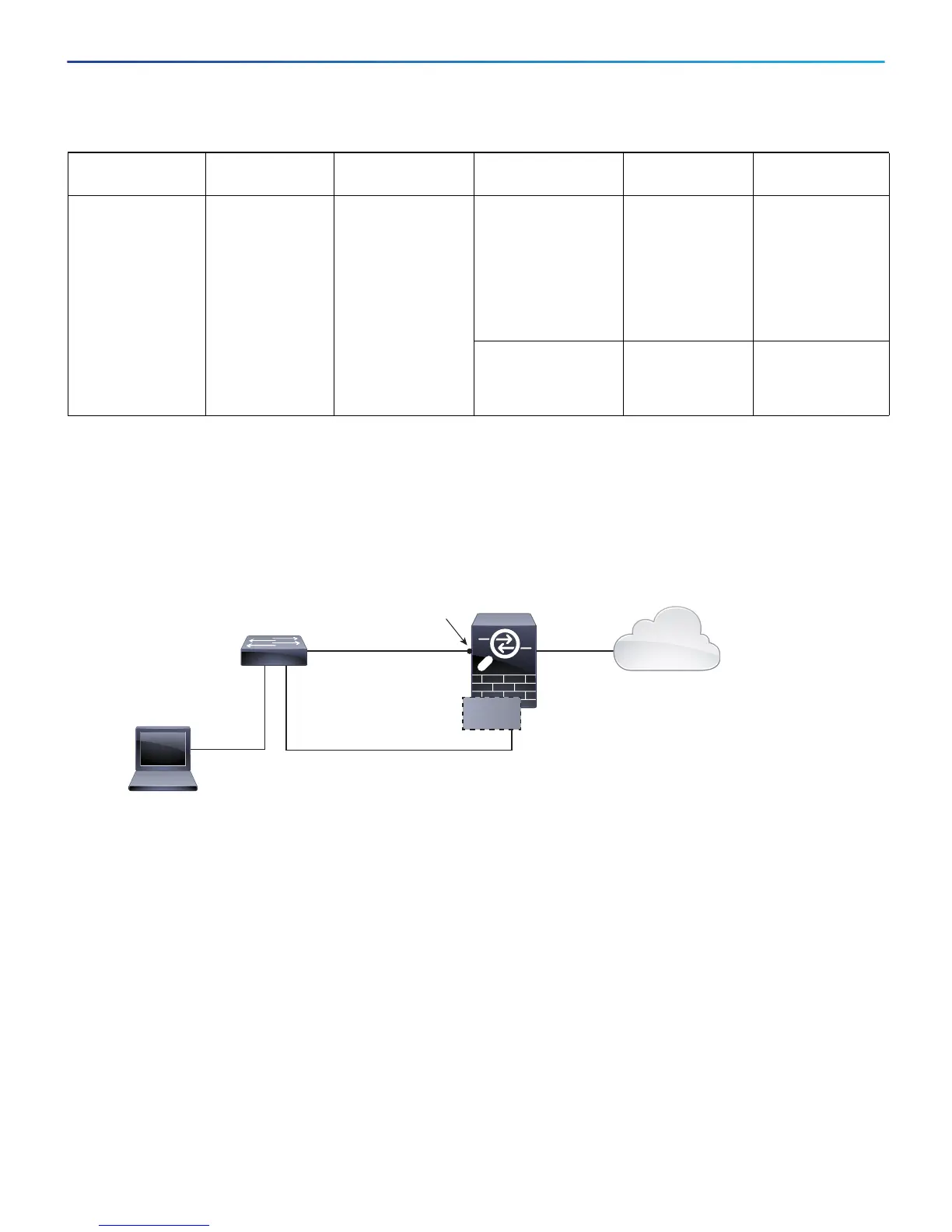

1. Cable the management and data interfaces. See 3. Network Considerations for Multiple SSPs, page 2 for a
sample cabling scenario.
Slot 0 Module Management
Interface ID
Default IP
address
Slot 1 Module Management
Interface ID
Default IP
address
ASA SSP
The ASA SSP is
the only
supported
module in slot 0.
Management 0/0 192.168.1.1 ASA SSP Management 0/0 192.168.1.1
If you want to put
both ASA SSPs
on the same
network, you
must change
from this default.
All other SSPs Management 1/0 Varies. See the
module quick start
guide for exact
values.
ASA Management 0/0
Module Management 1/0
Set IP to be on same network as M0/0
Management PC
Layer 2
Switch
ASA
management outside
Module
Internet
Module Gateway
to Internet

Cisco ASA 5585-X Specifications

General

Firewall Throughput	up to 20 Gbps
Maximum VPN Peers	10, 000
IPS Throughput	up to 10 Gbps
Maximum Concurrent Connections	10, 000, 000
Security Contexts	250
Interfaces	8 x 10 Gigabit Ethernet
Connections Per Second	350, 000
Power Supply	Dual, hot-swappable
