Cisco ASA Series Mount And Connect

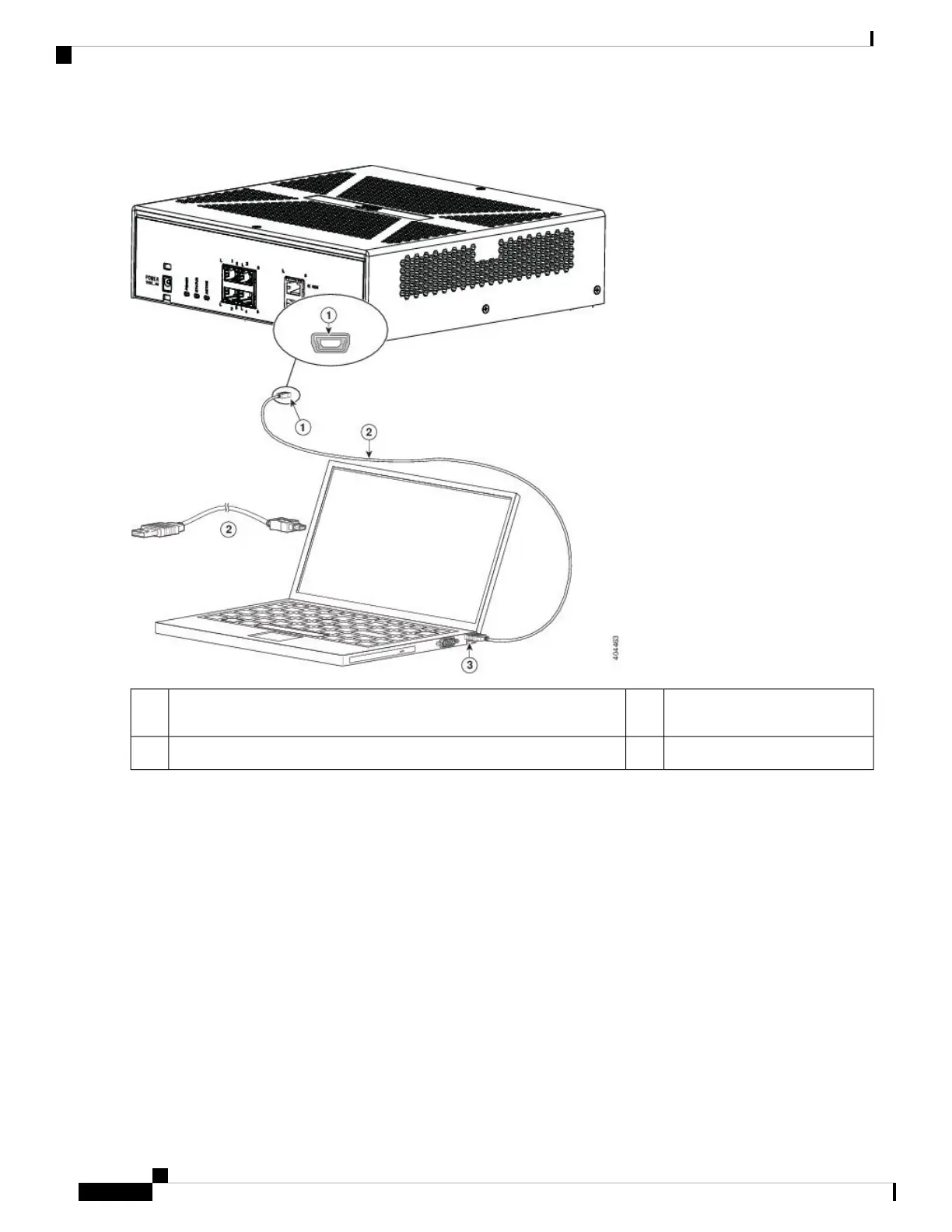

Figure 9: ASA 5506H-X Console Port Connection
Mini USB Type B to USB Type
A console cable
2Mini USB Type B console port1
USB Type A3
Step 4 Connect the end of the cable with the DB-9 connector (or USB Type A) to the terminal or PC. If your terminal or PC has
a console port that does not accommodate a DB-9 connector, you must provide an appropriate adapter for that port.
The LED for the console port turns green and within a few moments the Found New Hardware Wizard appears.
Step 5 Follow the instructions to complete the driver installation.
Step 6 To communicate with the ASA, start a terminal emulator application. This software should be configured with the
following parameters:
• 9600 baud
• 8 data bits
• no parity
• 1 stop bit
Mount and Connect
10
Mount and Connect
Connect to the Console Port with Microsoft Windows
