DETAILED STEPS
Step 1
Connect the USB end of the USB-to RJ-45 cable to the EIA Console port.
Step 2
Connect the RJ-45 end of the DB-9 adapter cable to the USB-to RJ-45 cable, as shown in the figure below.

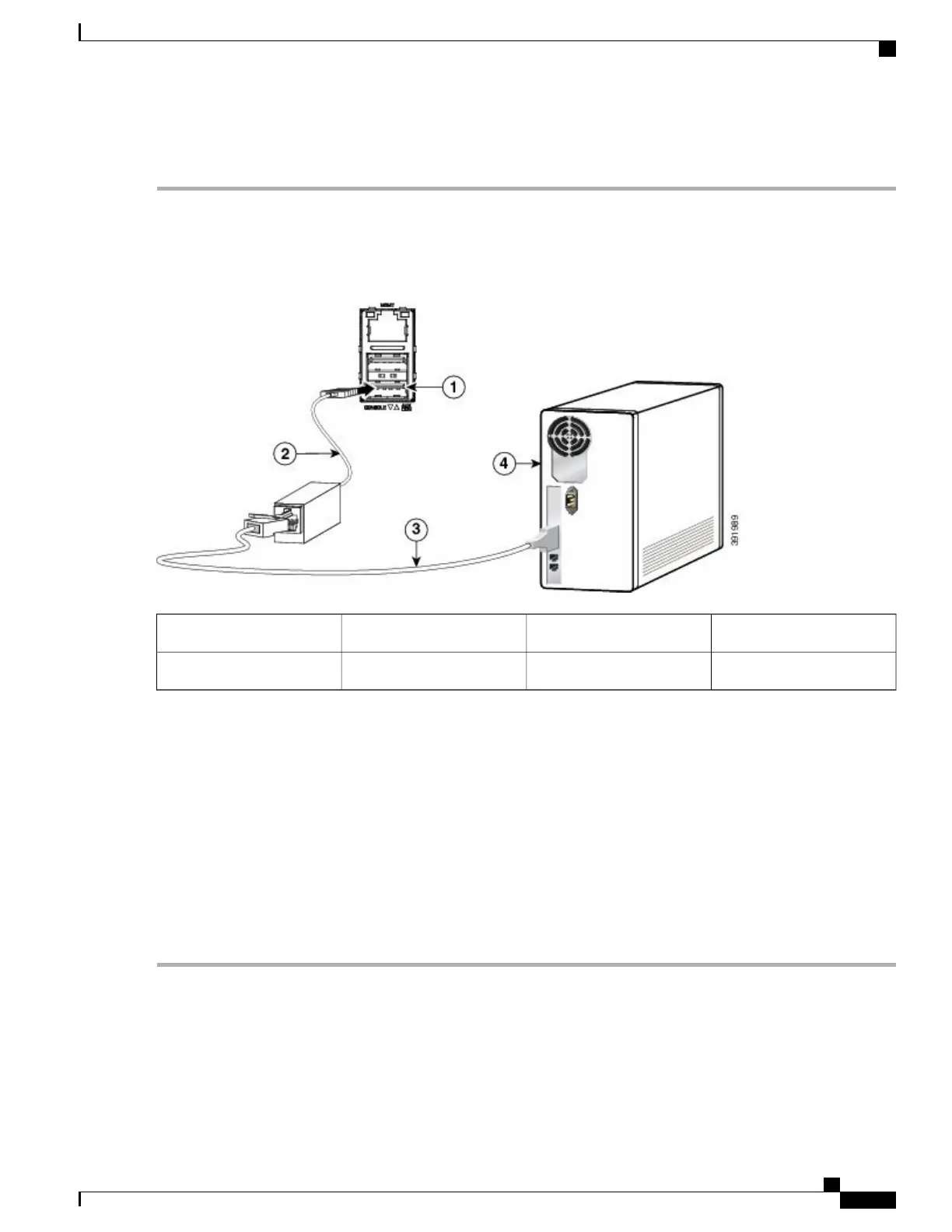

Figure 51: Connecting a Modem to the Cisco ASR 920-24SZ-IM, ASR-920-24SZ-M, ASR-920-24TZ-M Router
USB-to-RJ-45 adapter2EIA Console port1
Desktop or system4RJ-45 to DB-9 cable3
Step 3
Connect the DB-9 end of the console cable to the DB-9 end of the terminal.
Step 4
To communicate with the router, start a terminal emulator application, such as Microsoft Windows HyperTerminal. This
software should be configured with the following parameters:
•
9600 baud
•
8 data bits
•
no parity
•
1 stop-bit
•
no flow control
Cisco ASR-920-24SZ-IM, ASR-920-24SZ-M, ASR-920-24TZ-M Aggregation Services Router Hardware Installation
Guide
109
Installing the Router
Connecting to the EIA Console Port
