Cisco ASR-920-4SZ-D Hardware Installation Guide

1-3
Cisco ASR 920 Series Aggregation Services Router Hardware Installation Guide
OL-32751-01
Chapter 1 Cisco ASR 920 Series Aggregation Services Router Overview
Cisco ASR 920 Router Features

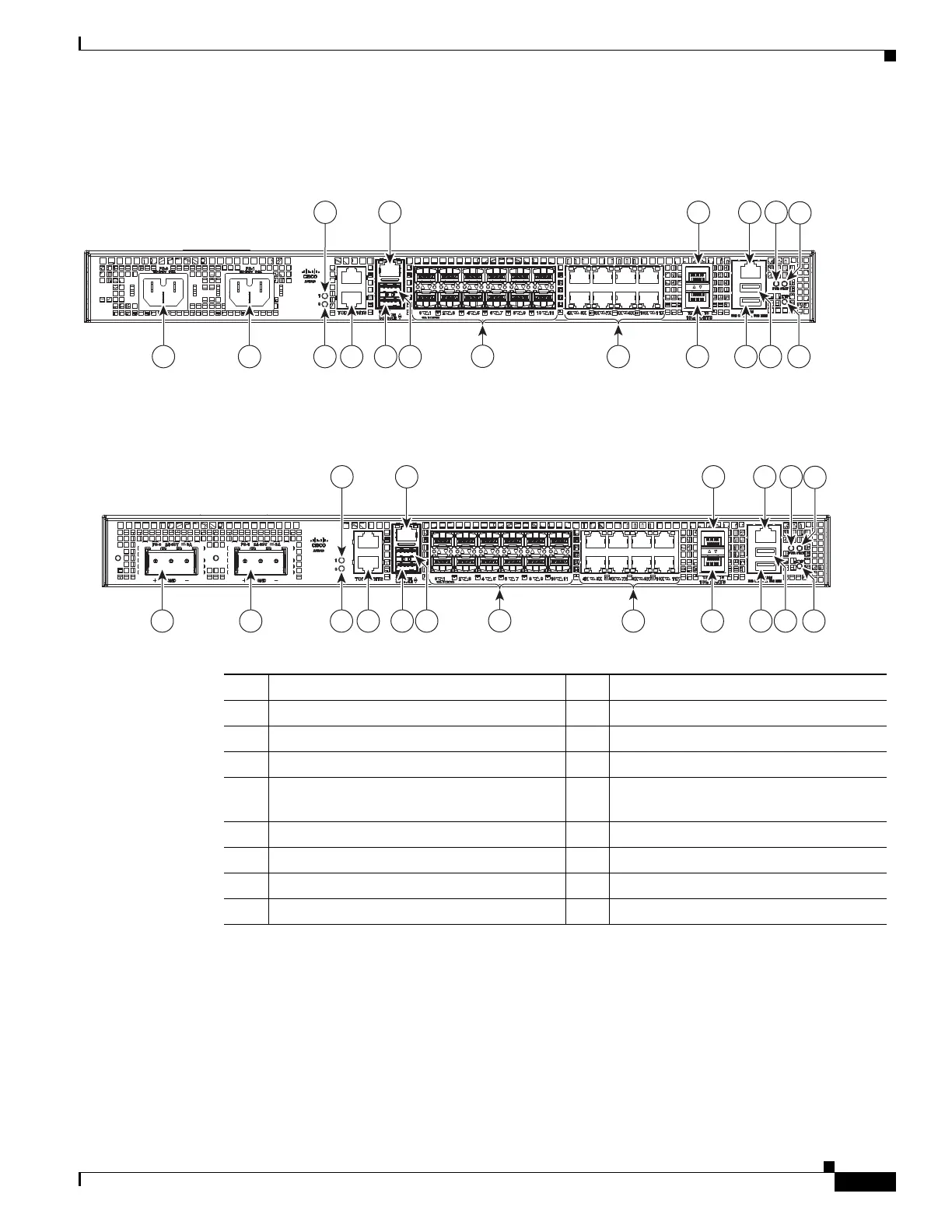

The following figures show the port numbering for the Cisco ASR 920 router:
Figure 1-1 Front Panel of Cisco ASR-920-12CZ-A Router
Figure 1-2 Front Panel of Cisco ASR-920-12CZ-D Router
391646
11 2 53 7
9
10
64 12 14 16
8
1311
15 17
18
391648
11 2 53 7
9
10
64 12 14 16
8
1311
15 17
18
1 Power Supply 0 (AC or DC) 10 Eight Copper port
2 Power Supply 1(AC or DC) 11 1G/10G Dual Rate port
3 Power Supply 0 LED (AC or DC) 12 1G/10G Dual Rate port
4 Power Supply 1 LED (AC or DC) 13 USB Console port
5 RJ-48 slots for BITS (upper slot) and ToD
(lower slot)
14 Alarm port
6 Management port 15 USB Memory port
7 Console port (TIA/EIA-232F) 16 Board power LED
8 Auxiliary Console port 17 Zero Touch Provisioning button
9 4x1GE SFP + 8x1GE SFP combo ports 18 System Status LED

Cisco ASR-920-4SZ-D Specifications

General

Brand	Cisco
Model	ASR-920-4SZ-D
Category	Network Router
Language	English
