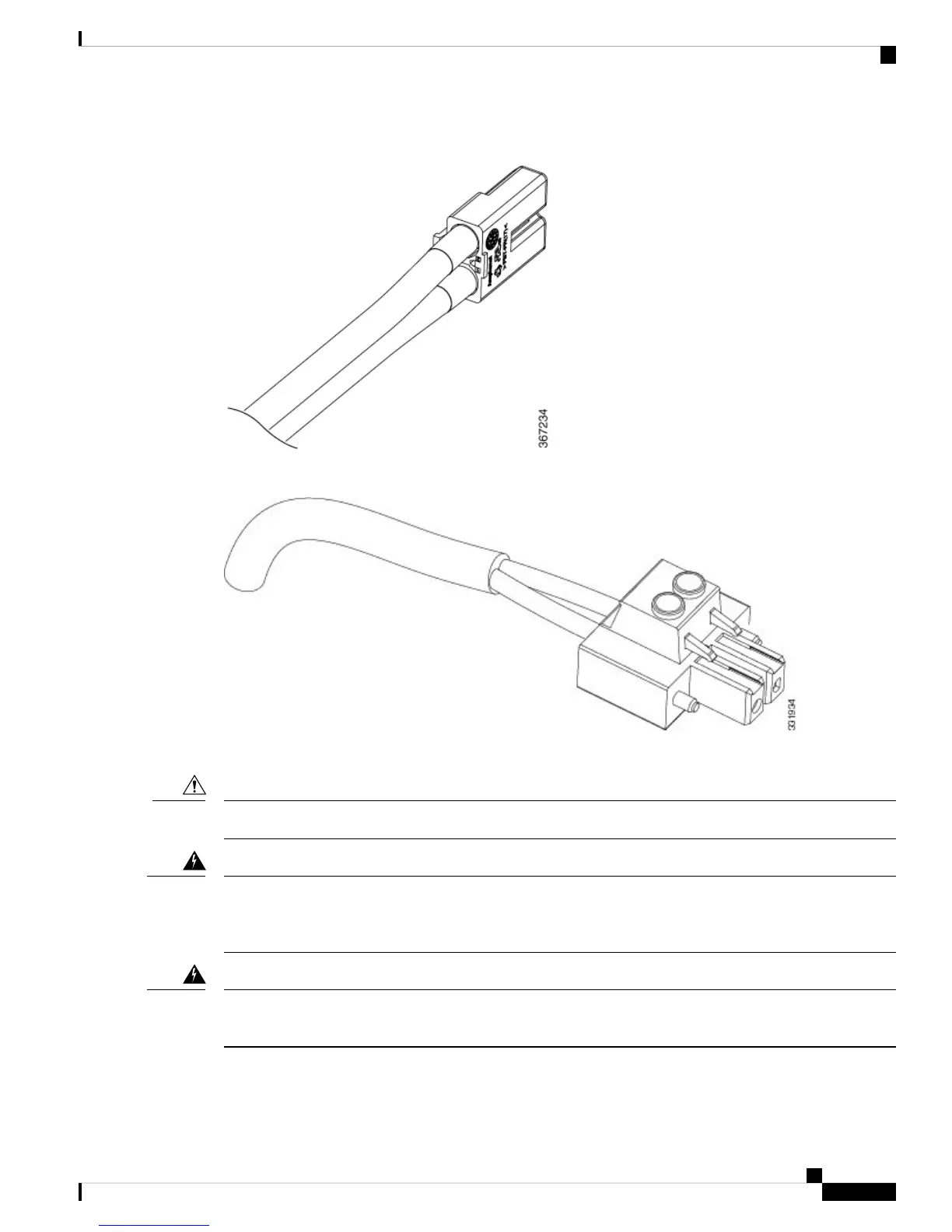

Figure 47: Cisco ASR 9901 DC Power Cable Terminal Block
Figure 48: Cisco ASR 9001 DC Power Cable Terminal Block
The figure below shows DC power source cable connections for single DC power module.
To avoid shock hazard, be sure to apply shrink wrap tubing around the wire entry area of the terminal block.
Caution
Hazardous voltage or energy may be present on power terminals. Always replace cover when terminals
are not in service. Be sure uninsulated conductors are not accessible when cover is in place. Statement
1086
Warning
Only trained and qualified personnel should be allowed to install, replace, or service this equipment.
Statement 1030
Warning
Preparing for Installation
31
Preparing for Installation
DC Powered Router

Cisco ASR 9901 Specifications

General

Chassis Height	1 RU
Rack Mounting	Yes
Redundancy	Yes
Operating System	Cisco IOS XR
Switching Capacity	Up to 1.2 Tbps
Memory	16 GB
Power Supply	Dual redundant AC or DC
Interfaces	10GE, 100GE
Operating Temperature	0 to 40°C (32 to 104°F)
Input Voltage	100-240V AC
Power Consumption	Varies based on configuration
Storage	64 GB SSD
Humidity	5% to 95% (non-condensing)
