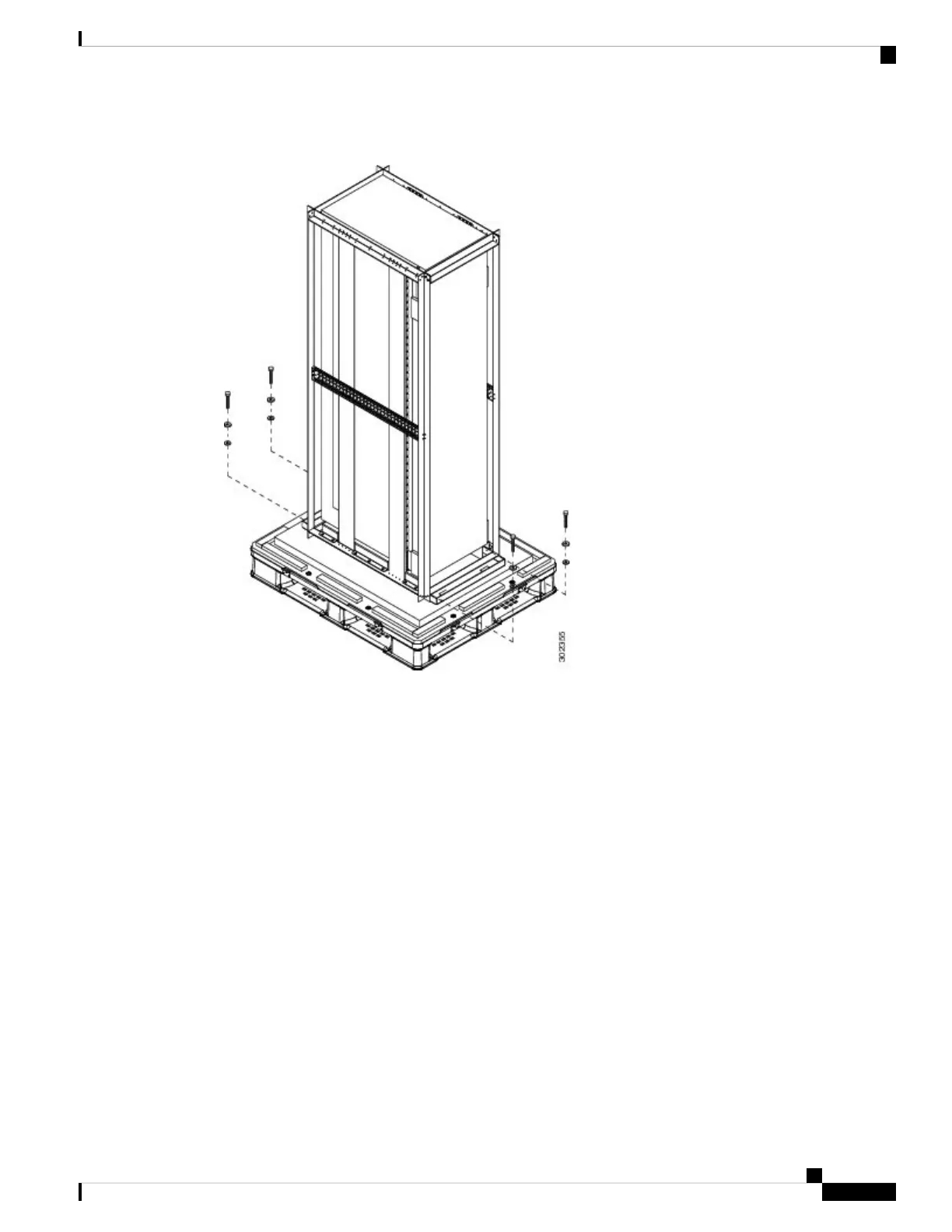

Figure
10:
Hold-Down
Brackets
on
the
Cisco
ASR
9922
Router
Shipping
Pallet
Do
not
unbolt
the
shipping
rack
from
the
pallet.
Note
Step
9
Save
the
rear
brackets
and
screws
from
the
shipping
packaging
for
reuse
in
rack
mounting
of
the
chassis
(see
the
figure
below).
The
two
guide
rails
at
the
bottom
of
the
rack
come
in
the
ASR-9922-ACC-KIT
accessory
kit.
Note
Unpacking
and
Installing
the
Chassis
17
Unpacking
and
Installing
the
Chassis
Unpacking
the
Cisco
ASR
9922
Router
16
18
Table of Contents
Unpacking and Installing the Chassis
1
Pre-Installation Considerations and Requirements
1
Installation Overview
1
Required Tools and Equipment
2
Unpacking the Router
3
Unpacking the Cisco ASR 9006 Router
3
Unpacking the Cisco ASR 9010 Router
5
Unpacking the Cisco ASR 9904 Router
7
Unpacking the Cisco ASR 9906 Router
8
Unpacking the Cisco ASR 9910 Router
10
Unpacking the Cisco ASR 9912 Router
13
Unpacking the Cisco ASR 9922 Router
14
Positioning the Router
19
Positioning the Cisco ASR 9006 Router, Cisco ASR 9010 Router, Cisco 9904 Router, Cisco ASR 9906 Router, Cisco ASR 9910 Router, and Cisco ASR 9912 Router
19
Positioning the Cisco ASR 9922 Router
19
Removing Components Before Installing the Chassis
20
Removing Power Modules
20
Removing Fan Trays
20
Removing a Fan Tray from the Cisco ASR 9010 Router, Cisco 9910 Router, Cisco ASR 9922 Router, and Cisco ASR 9912 Router
20
Removing a Fan Tray from the Cisco ASR 9006 Router
24
Removing a Fan Tray from the Cisco ASR 9904 Router
24
Removing a Fan Tray from the Cisco ASR 9906 Router
25
Removing Cards from the Chassis
26
Removing RSP Cards and Line Cards from the Cisco ASR 9006, 9010, 9904, 9906, and 9910 Routers
27
Removing RP Cards, Fabric Cards, and Line Cards from the Cisco ASR 9922 Router and Cisco ASR 9912 Router
37
Rack-Mounting the Router Chassis
48
Verifying Rack Dimensions
49
Installing the Chassis in a 2-Post Rack
49
Installing the Chassis in a 4-post Open Rack
57
Preparing the 19 Inch 45-RU Rack
57
Supplemental Bonding and Grounding Connections
64
Installing Chassis Accessories
68
Base Accessories
68
Optional Accessories
68
Installing Base Chassis Accessories on the Cisco ASR 9010 Router
68
Installing Optional Chassis Accessories on the Cisco ASR 9010 Router
70
Installing Base Chassis Accessories on the Cisco ASR 9006 Router
75
Installing Optional Chassis Accessories on the Cisco ASR 9006 Router
78
Installing Optional Air Baffles on the Cisco ASR 9006 Router
80
Installing Optional Air Baffles on the Cisco ASR 9904 Router
86
Installing Optional Chassis Accessories on the Cisco ASR 9910 Router
92
Installing Optional Chassis Accessories on the Cisco ASR 9922 Router
92
Installing Base Chassis Accessories on the Cisco ASR 9912 Router
94
Installing Optional Chassis Accessories on the Cisco ASR 9912 Router
95
