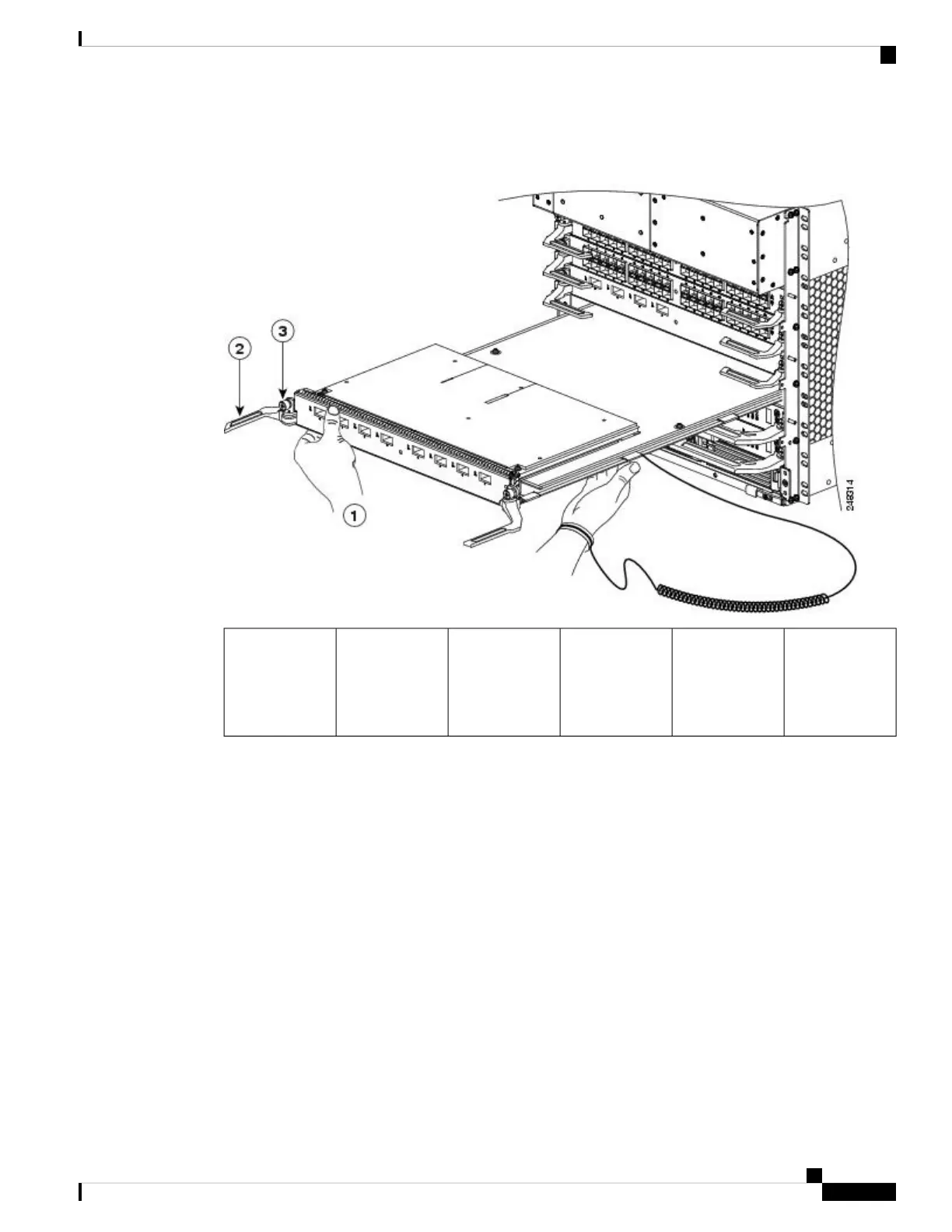

Figure
177:
Installing
a
Line
Card
into
the
Cisco
ASR
9006
Router
Chassis
T
ighten
the
captive
screws.
3
Pivot
the
ejector
levers
to
seat
the
card
into
the
backplane
connector
.
2
Slide
the
card
into
the
chassis.
1
Cisco
ASR
9000
Series
Aggregation
Services
Router
Hardware
Installation
Guide
175
Installing
Cards
and
Modules
in
the
Chassis
Installing
Line
Cards
in
the
Chassis
188
190
Table of Contents
Default Chapter
4
Table of Contents
4
Cisco ASR 9906 Router Clearance Requirements
36
Cisco ASR 9910 Router Clearance Requirements
37
Cisco ASR 9912 Clearance Requirements
38
Cisco ASR 9922 Clearance Requirements
39
Temperature and Humidity Guidelines
40
Power Connection Guidelines
41
AC-Powered Routers
42
AC Power Cord Illustrations (Version 1 Power)
44
AC Power Cord Illustrations (Version 2 and Version 3 Power)
48
DC-Powered Router
52
NEBS Supplemental Unit Bonding and Grounding Guidelines
58
RSP and RP Port Connection Guidelines
61
Console Port and Auxiliary Port Connection Guidelines
62
Console Port Signals
62
Auxiliary Port Signals
62
Management LAN Ports Connection Guidelines
63
Management LAN Port LED Indicators
64
Management LAN RJ-45 Cabling
64
Alarm Connection Guidelines
65
Sync Port Connection Guidelines
66
CHAPTER 2 Unpacking and Installing the Chassis
69
Pre-Installation Considerations and Requirements
69
Installation Overview
69
Required Tools and Equipment
70
Unpacking the Router
71
Unpacking the Cisco ASR 9006 Router
71
Unpacking the Cisco ASR 9010 Router
73
Unpacking the Cisco ASR 9904 Router
75
Unpacking the Cisco ASR 9906 Router
76
Unpacking the Cisco ASR 9910 Router
78
Unpacking the Cisco ASR 9912 Router
81
Unpacking the Cisco ASR 9922 Router
82
Positioning the Router
87
9906 Router, Cisco ASR 9910 Router, and Cisco ASR 9912 Router
87
Positioning the Cisco ASR 9922 Router
87
Removing Components before Installing the Chassis
88
Removing Power Modules
88
Removing Fan Trays
88
Router, and Cisco ASR 9912 Router
88
Removing a Fan Tray from the Cisco ASR 9006 Router
92
Removing a Fan Tray from the Cisco ASR 9904 Router
92
Removing a Fan Tray from the Cisco ASR 9906 Router
93
Removing Cards from the Chassis
94
Routers
95
ASR 9912 Router
105
Rack-Mounting the Router Chassis
116
Verifying Rack Dimensions
117
Vertical Rack Rail Locations for ASR 9906 Router
117
Installing the Chassis in a 2-Post Rack
118
Installing the Chassis in a 4-Post Open Rack
127
Preparing the 19 Inch 45-RU Rack
127
Supplemental Bonding and Grounding Connections
135
Installing Chassis Accessories
139
Base Accessories
139
Optional Accessories
139
Installing Base Chassis Accessories on the Cisco ASR 9010 Router
139
Installing Optional Chassis Accessories on the Cisco ASR 9010 Router
141
Installing Base Chassis Accessories on the Cisco ASR 9006 Router
146
Installing Optional Chassis Accessories on the Cisco ASR 9006 Router
149
Installing Optional Air Baffles on the Cisco ASR 9006 Router
151
Installing Optional Air Baffles on the Cisco ASR 9904 Router
159
Installing Optional Chassis Accessories on the Cisco ASR 9910 Router
166
Installing Optional Chassis Accessories on the Cisco ASR 9922 Router
166
Installing Base Chassis Accessories on the Cisco ASR 9912 Router
168
Installing Optional Chassis Accessories on the Cisco ASR 9912 Router
169
CHAPTER 3 Installing Cards and Modules in the Chassis
173
Installing Power Modules
173
Installing AC Power Modules
174
Prerequisites
174
Required Tools and Equipment
174
Steps
174
Installing DC Power Modules
175
Required Tools and Equipment
175
Steps
175
Installing Fan Trays
176
Prerequisites
176
Required Tools and Equipment
176
Steps
176
Installing Cards in the Chassis
177
Installing RSP Cards in the Chassis
178
RSP Cable Management Ties
180
Installing RP Cards in the Chassis
181
Installing Fabric Cards in the Cisco ASR 9912 and 9922 Router Chassis
183
Installing Fabric Cards in the Cisco 9906 Router and Cisco ASR 9910 Router Chassis
185
Installing Line Cards in the Chassis
187
Connecting Line Card Network Interface Cables
195
Connecting Cables to the RSP or RP
199
Connecting to the Console Port
202
Connecting to the Auxiliary Port
202
Connecting to the Ethernet Management Ports
202
Connecting the Alarm Cable
203
Connecting Power to the Router
204
Connecting Power to an AC-Powered Router
205
Connecting Power to a DC-Powered Router
206
Powering on the Router
209
Chapter 4
211
Troubleshooting the Installation
211
Troubleshooting Overview
211
Troubleshooting Using a Subsystem Approach
211
Normal Router Startup Sequence
213
Identifying Startup Issues
213
Troubleshooting the Power Subsystem
217
Troubleshooting the AC Input Power Subsystem
217
Troubleshooting the DC Input Power Subsystem
222
Troubleshooting a DC Power Module
224
Additional Power Subsystem Troubleshooting Information
225
Obtaining Temperature and Environmental Information
225
Troubleshooting the Power Distribution System
228
Troubleshooting the Route Processor Subsystem
229
RSP and RP Front Panel Indicators
229
Fabric Card Front Panel Indicator
229
Troubleshooting Line Cards and Modular Port Adapters
230
Monitoring Critical, Major, and Minor Alarm Status
230
Troubleshooting the Cooling Subsystem
230
Chassis Cooling Requirements
231
Fan Tray Operation
231
Power Module Fans
232
Overtemperature Conditions
232
Isolating Cooling Subsystem Problems
233
CHAPTER 5 Replacing Cisco ASR 9000 Series Router Components
235
Prerequisites and Preparation
235
Field Replaceable Units
236
Online Insertion and Removal
237
OIR Monitoring
237
Powering off the Router
237
Replacing the Chassis Air Filter
238
Removing and Replacing the Fan Trays
244
Prerequisites
244
Required Tools and Equipment
244
Removing a Fan Tray
244
Installing a Fan Tray
246
Removing and Replacing Power System Components
246
Changing between Version 1, Version 2, Version 3, AC, and DC Power Modules
247
Removing a Version 1 AC or DC Power Module
248
Removing a Version 2 or Version 3 AC or DC Power Module
249
Installing a Version 1 AC or DC Power Module
250
Installing a Version 2 or Version 3 AC or DC Power Module
251
Disconnecting AC Power
251
Reconnecting AC Power
252
Disconnecting DC Power
253
Disconnecting DC Power
254
Reconnecting DC Power
255
Removing an AC or DC Power Tray from a Cisco ASR 9000 Series Router
255
Installing an AC or DC Power Tray into a Cisco ASR 9000 Series Router
258
Removing and Replacing Cards from the Chassis
259
Removing Cards from the Chassis
260
Replacing Cards in the Chassis
261
Migrating from RP1 to RP2 Card
262
Migrating from RP2 to RP3 Card
264
Migrating from RSP440 to RSP880 or RSP880-LT Card
267
Migrating from RSP4-S to RSP880-LT Card (ASR 9906 Router)
270
Migrating from RSP4/RSP4-S/RSP-L to RSP5 Card
272
Migrating from FC1 to FC2 Card
275
Migrating from A99-SFC2 to A99-SFC3 Card
276
Migratingfroma99-SFC-S/A99-SFC-Ttoa99-SFC3-S/A99-SFC3-T Card
276
Removing a Chassis from the Equipment Rack
277
Installing a Replacement Chassis in the Equipment Rack
278
Packing a Chassis for Shipment
279
Appendix A Technical Specifications
281
Technical Specifications
281
Other manuals for Cisco ASR 9906
Manual
44 pages
Unpacking And Installing
98 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Cisco ASR 9906 and is the answer not in the manual?
Ask a question
Cisco ASR 9906 Specifications
General
Brand
Cisco
Model
ASR 9906
Category
Network Router
Language
English
Related product manuals
Cisco ASR 9901
44 pages
Cisco ASR 9904
44 pages
Cisco ASR 9922
44 pages
Cisco ASR 9912
44 pages
Cisco ASR 9910
44 pages
Cisco ASR 901
218 pages
Cisco ASR 9000
188 pages
Cisco ASR 9010
44 pages
Cisco ASR-920-4SZ-D
78 pages
Cisco ASR-920-4SZ-A
78 pages
Cisco ASR 920 series
36 pages
Cisco ASR-920-24SZ-M
150 pages
