Figure 138: Locations for the Six Ball Studs on the Cisco ASR 9010 Router

Step 5 Attach the left and right hinge brackets to the chassis using four screws for each bracket. Tighten the screws

to a torque of 11 in-lb (1.20 N-m). The L-shaped brackets should align with the holes in the cable management

tray from which you removed the screws.

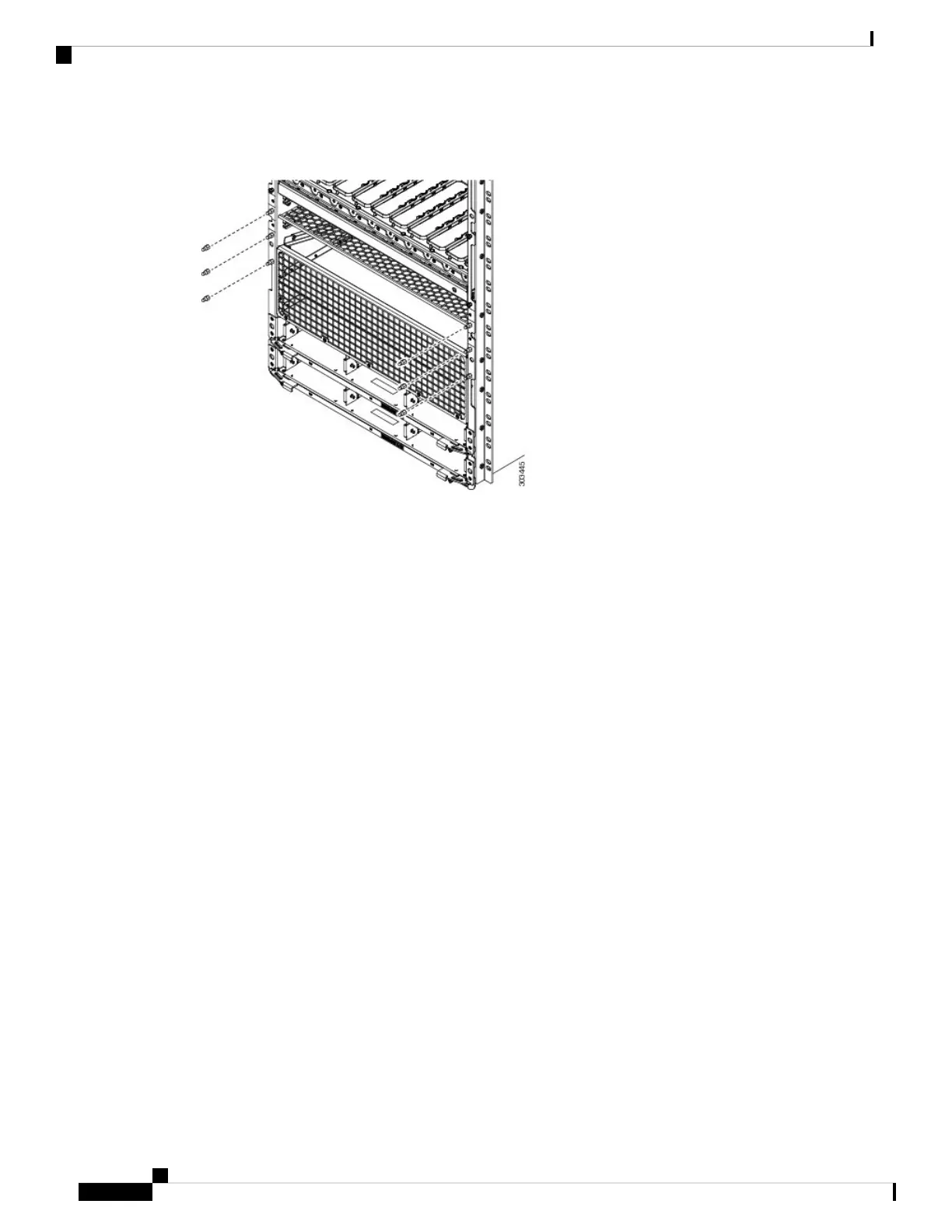

Step 6 Secure the L-shaped brackets to the chassis and cable management tray by re-inserting and tightening the

cable management tray screws you removed (see the figure below).

Cisco ASR 9000 Series Aggregation Services Router Hardware Installation Guide

130

Unpacking and Installing the Chassis

Installing Optional Chassis Accessories on the Cisco ASR 9010 Router
