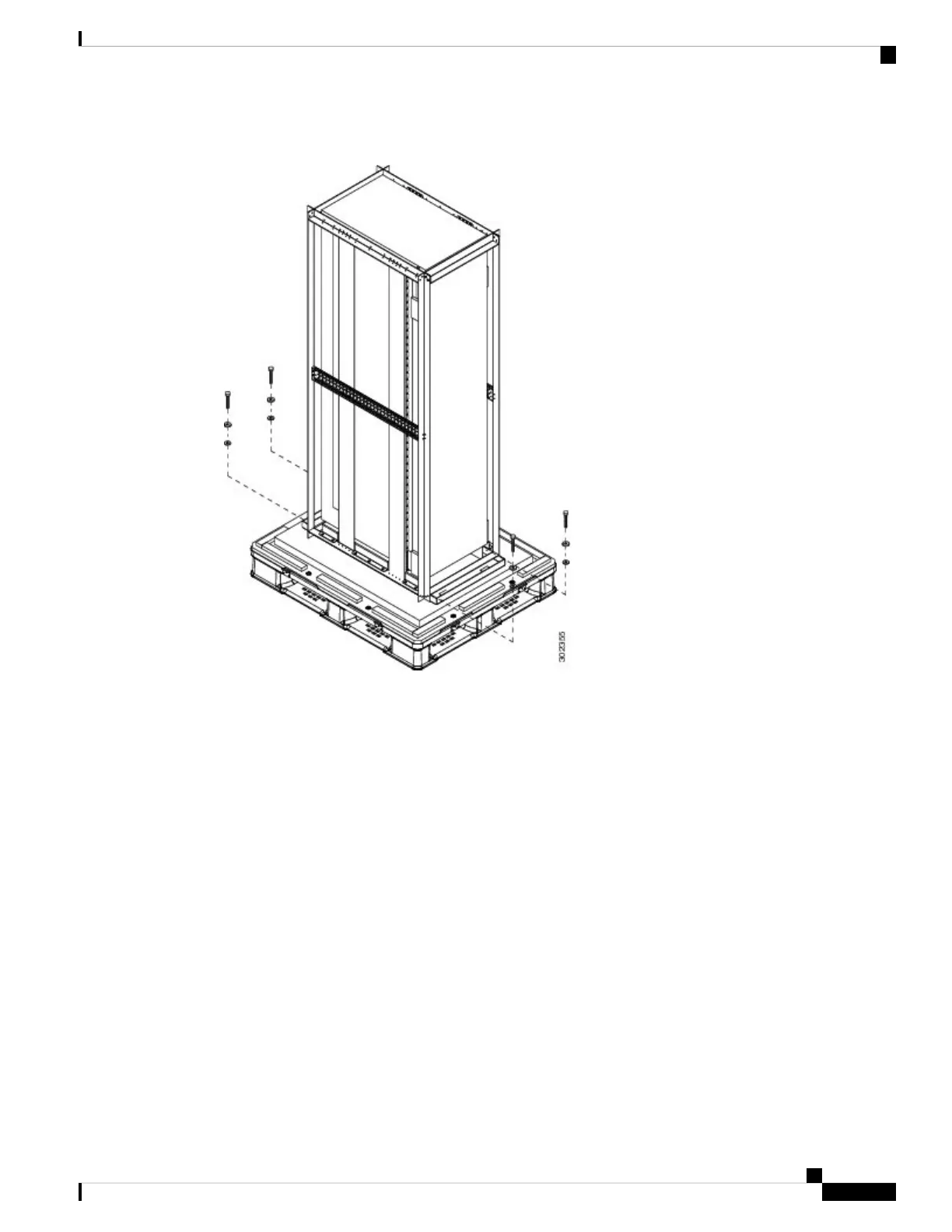

Figure
10:
Hold-Down
Brackets
on
the
Cisco
ASR
9922
Router
Shipping
Pallet
Do
not
unbolt
the
shipping
rack
from
the
pallet.
Note
Step
9
Save
the
rear
brackets
and
screws
from
the
shipping
packaging
for
reuse
in
rack
mounting
of
the
chassis
(see
the
figure
below).
The
two
guide
rails
at
the
bottom
of
the
rack
come
in
the
ASR-9922-ACC-KIT
accessory
kit.
Note
Unpacking
and
Installing
the
Chassis
17
Unpacking
and
Installing
the
Chassis
Unpacking
the
Cisco
ASR
9922
Router
16
18
