Removing a Fan Tray from the Cisco ASR 9006 Router
Follow these steps to remove a fan tray from the Cisco ASR 9006 Router (see the figure below).
Procedure
Step 1 Loosen the captive screw that secures the fan tray door to the chassis and open the door.
Step 2 Loosen the captive installation screw on the front of the fan tray you want to remove.
Step 3 Using the handle on the front panel, pull the fan tray halfway out of the chassis.
Wait a few seconds for all the fans to stop rotating before lifting the fan tray from the chassis.
Note
Step 4 Slide out the fan tray completely from the chassis while supporting it with your other hand.
Use two hands when handling the fan tray. The fan tray weighs about 7.6 pounds (3.45 kg).
Caution

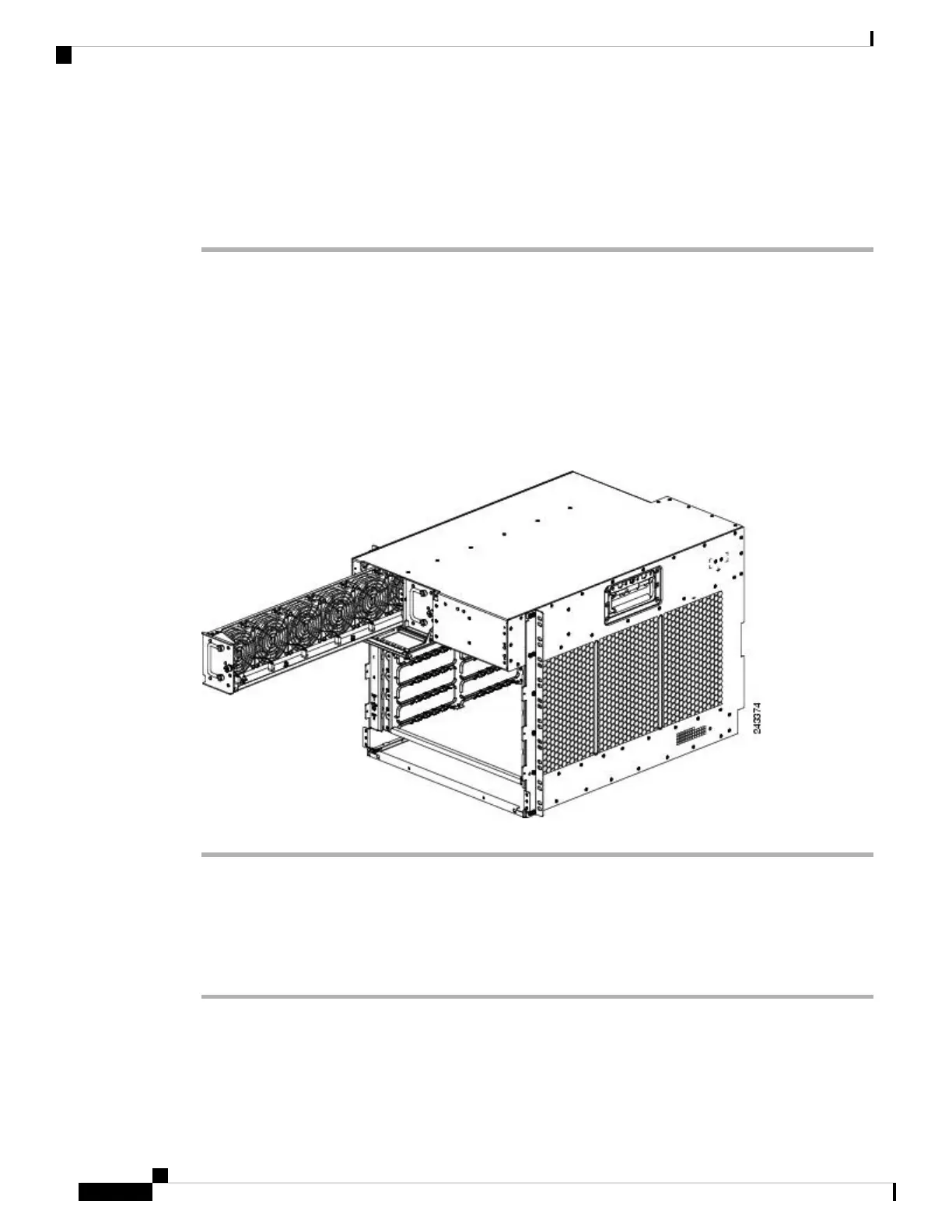

Figure 17: Removing or Installing the Fan Tray on the Cisco ASR 9006 Router Chassis
Removing a Fan Tray from the Cisco ASR 9904 Router
Follow these steps to remove a fan tray from the Cisco ASR 9904 Router (see the figure below).
Procedure
Step 1 Loosen the three captive installation screws on the front of the fan tray.
Step 2 Using the handle on the front panel, pull the fan tray halfway out of the chassis.
Step 3 Wait a few seconds for all the fans to stop rotating before lifting the fan tray from the chassis.
Unpacking and Installing the Chassis
24
Unpacking and Installing the Chassis
Removing a Fan Tray from the Cisco ASR 9006 Router
