Cisco ATA 186 Installation and Configuration Guide
OL-1267-01
Chapter 1 Cisco ATA 186 Overview
About the Cisco ATA 186
Hardware Features
The Cisco ATA 186 features the hardware options listed in this section and shown
in Figure 1-1.

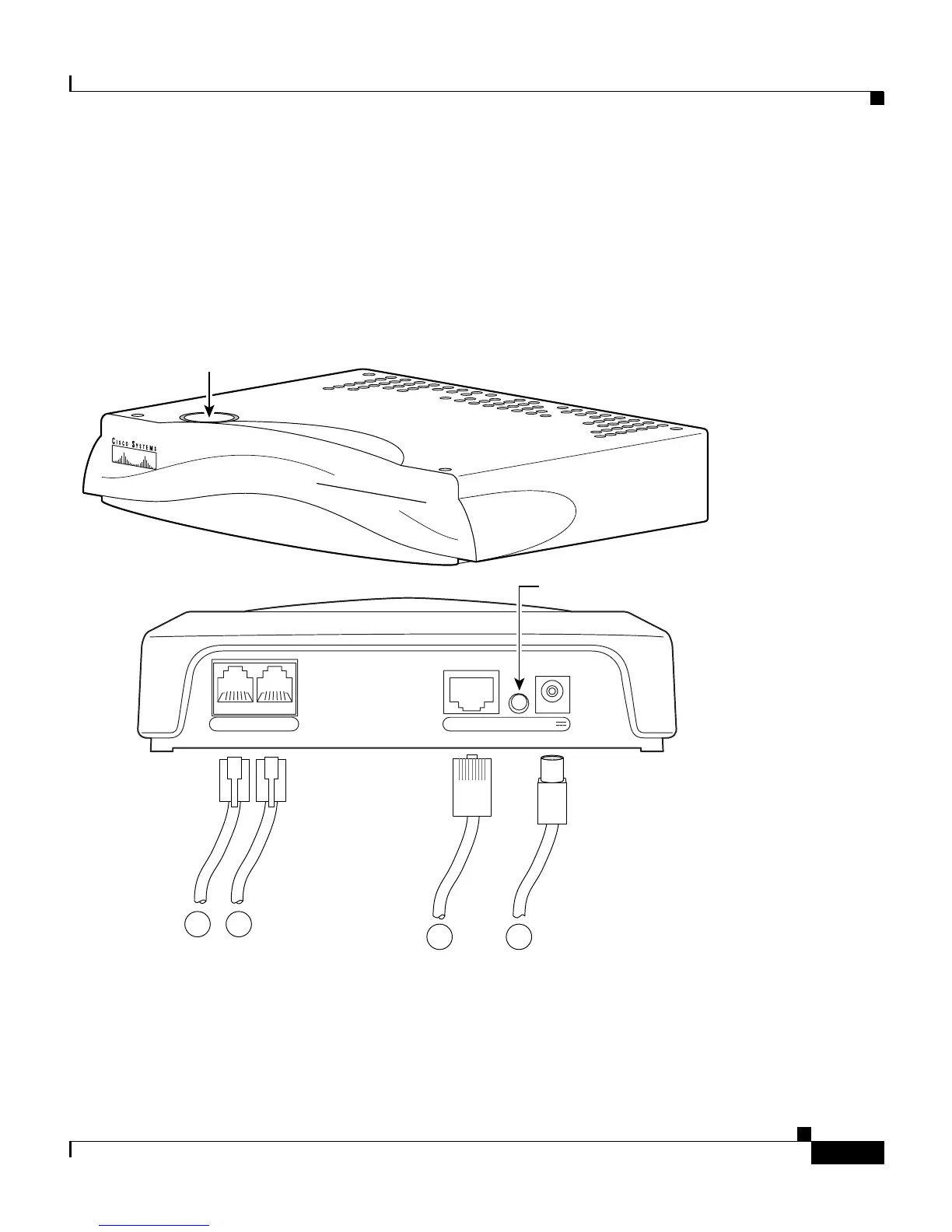

Figure 1-1 Features of the Cisco ATA 186
A—Phone 1 connector (RJ-11)
B—Phone 2 connector (RJ-11)
C—10Base-T Ethernet connector
D—12V power connector
10BaseT ACT 5VPHONE 1 PHONE 2
62423
A
B
C D
Function button
Indicator LED
ANALOG TELEPHONE ADAPTOR
CISCO ATA 186
