Step 2 Slide the retainer around the AC power cord, and pass it around the loop on the switch.

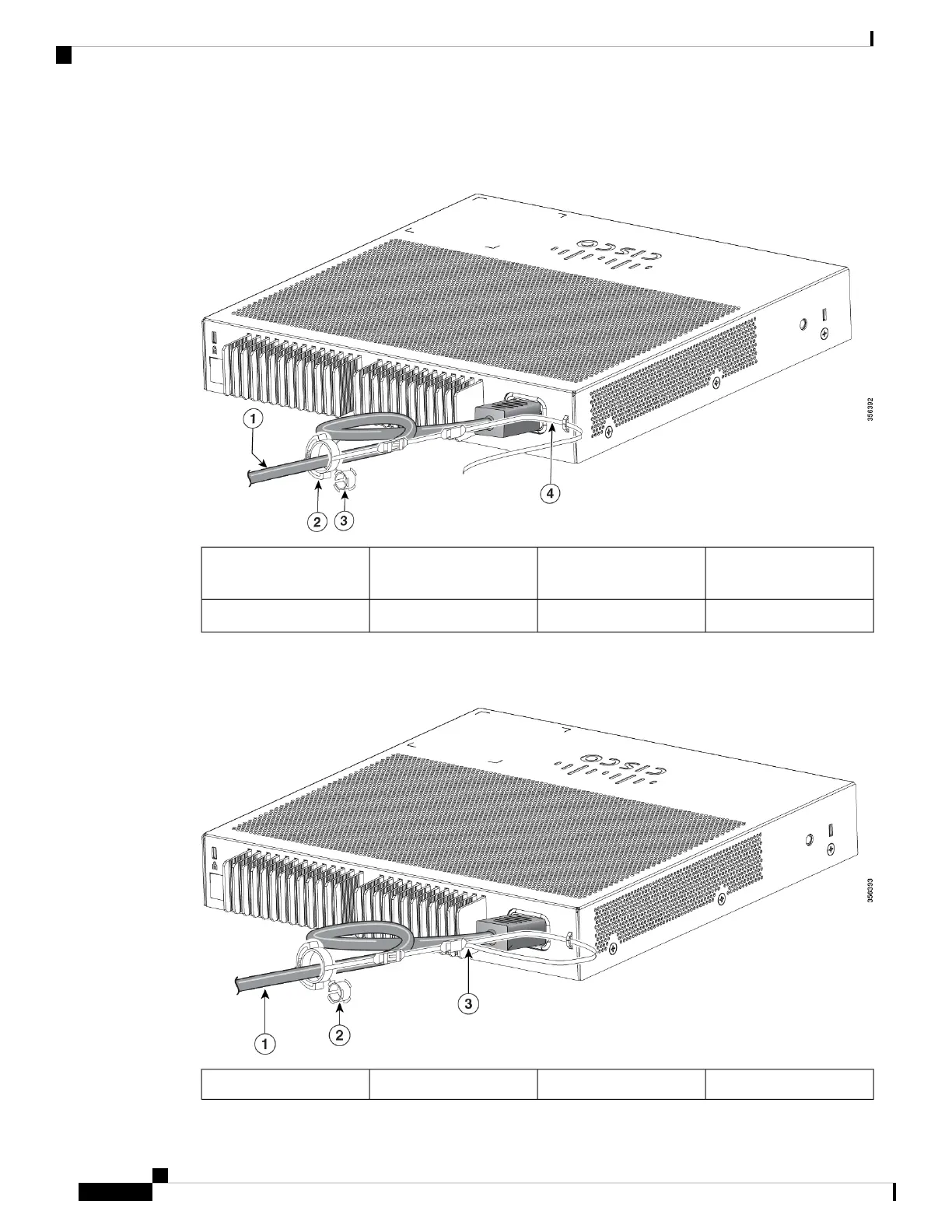

Figure 21: Inserting the Retainer through the Lanced Loop
Sleeve for thinner power
cords
3AC power cord1
Loop4Power cord retainer2
Step 3 Slide the retainer through the first latch.
Figure 22: Sliding the Retainer Through the Latch
Latch3AC power cord1
Cisco Catalyst 1000 Series 8-Port and 16-Port Switch Hardware Installation Guide
30
Switch Installation
Installing the Power Cord Retainer (Optional)
