Cisco Catalyst 9130AX Series Access Points

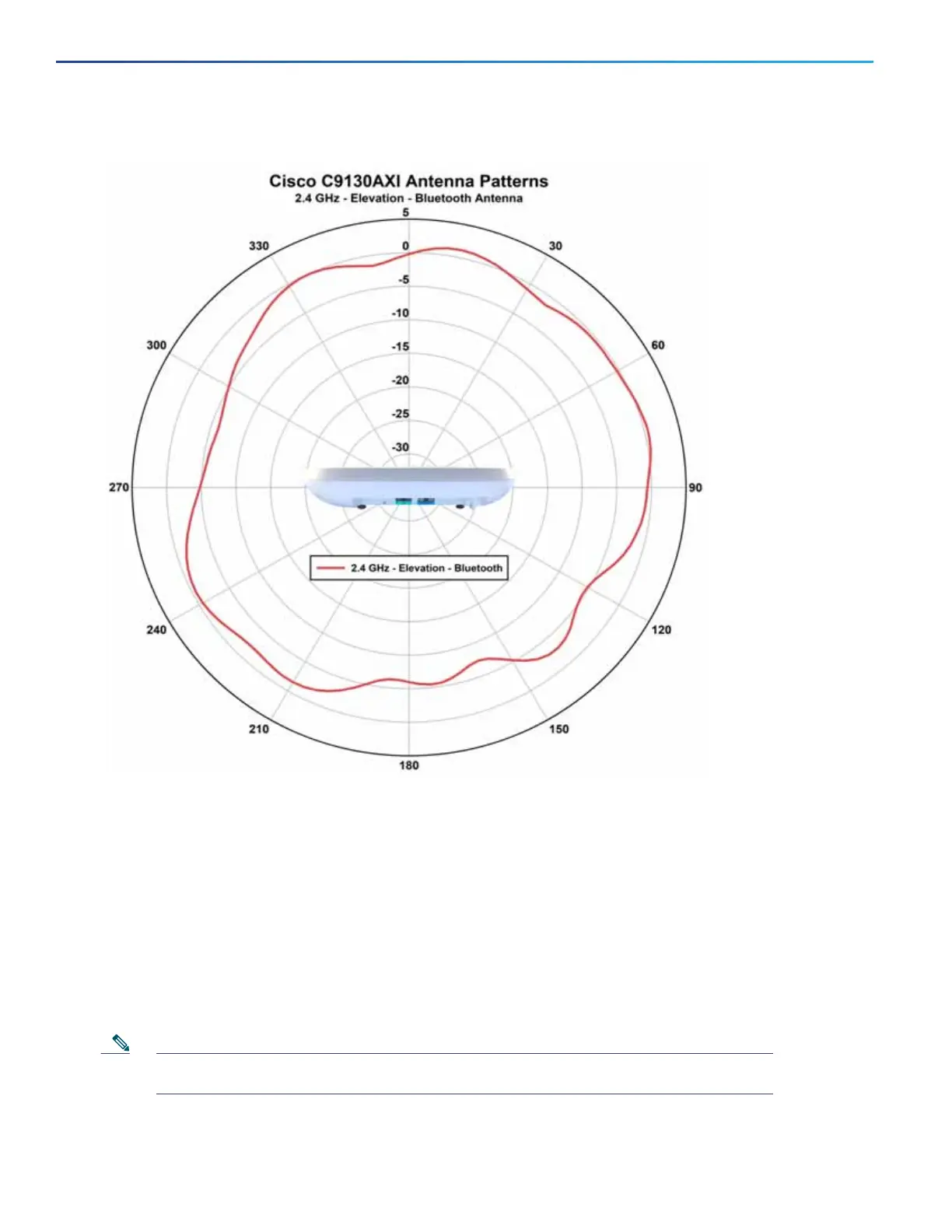

Figure 3-14 C9130AXI - Bluetooth Antenna radiation pattern (2.4 GHz Elevation)

C9130AXE (External Antenna)

The C9130AXE AP models (C9130AXE-x and C9130AXE-EWC-x) are certified for use with external antenna with gains

up to 6 dBi or 13 dBi(2.4 GHz and 5 GHz) depending on the antenna accessory being used:

 2 ft Smart Antenna Connector to RP-TNC breakout cable (AIR-CAB002-D8-R=)—For conventional (non-DART)

antennas with gains up to 6 dBi

 3 ft Smart Antenna Connector to N Connectors (AIR-CAB003-D8-N=)—For conventional (non-DART) antennas with

gains up to 13 dBi

The C9130AXE APs also support Self Identifying Antennas (SIA) on the 8-DART connector.

Note Always connect the antennas to the AP before powering the AP up. Enabling the AP radios without connecting

the antennas can result in damage to the AP.
